Глушитель Оригинальные запчасти для скутеров Suzuki AN650 (Burgman) (2008)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

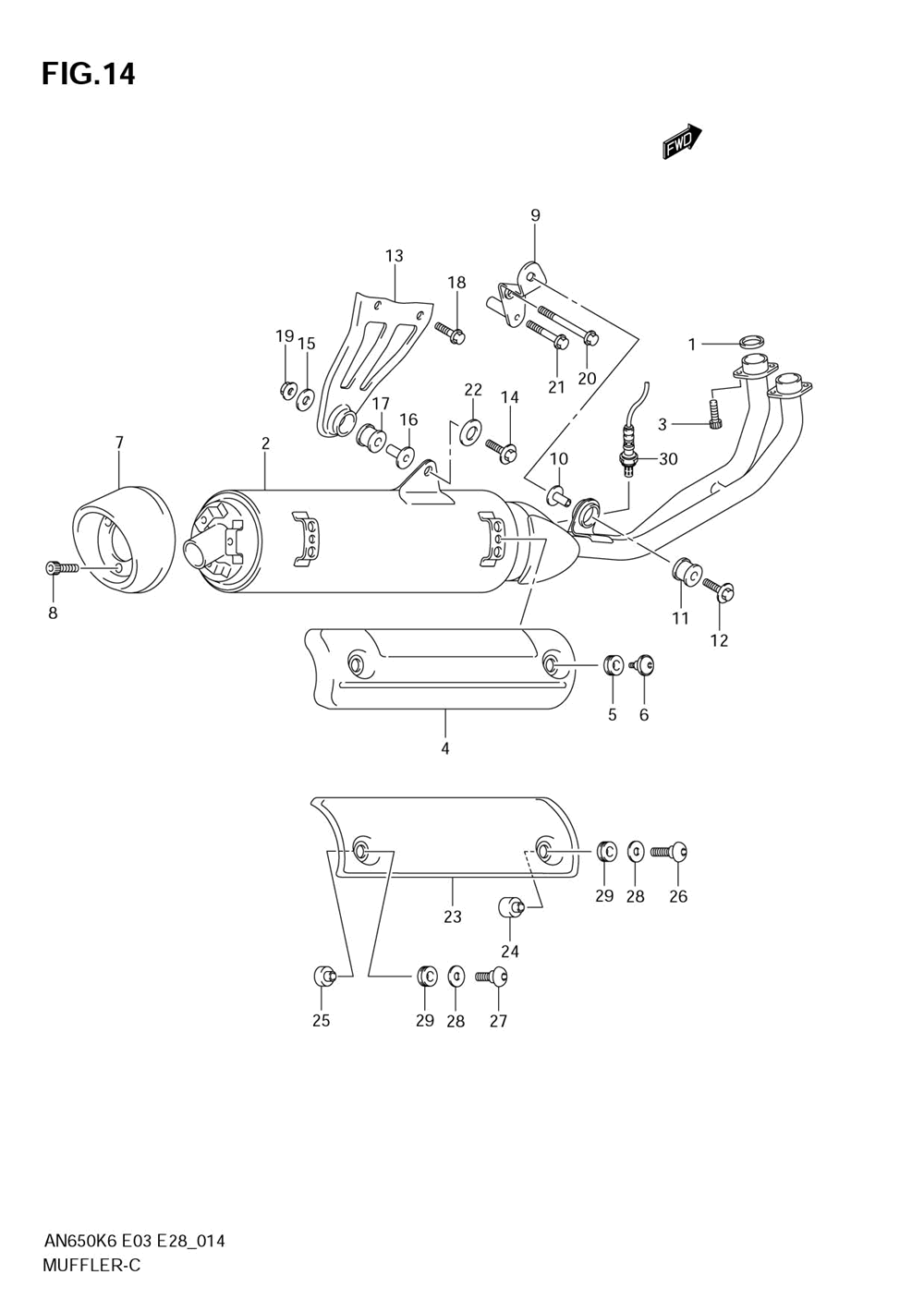

Глушитель

Suzuki AN650 (Burgman)

Глушитель

#

oem код

название

цена

1

Gasket, Exhaust Pipe ()

Gasket, Exhaust Pipe ()

2-1

14305-10GB0-H01

Muffler (model K6)

Muffler (model K6)

2-2

14305-10GG0-H01

Muffler (model K7/k8)

Muffler (model K7/k8)

3

Bolt, Exhaust Pipe ()

Bolt, Exhaust Pipe ()

4

Cover, Muffler (an650k6/k7/k8)

Cover, Muffler (an650k6/k7/k8)

5

Cushion, Muffler Cover (an650k6/k7/k8)

Cushion, Muffler Cover (an650k6/k7/k8)

6

Screw, Muffler Cover (an650k6/k7/k8)

Screw, Muffler Cover (an650k6/k7/k8)

7-1

Cover, Muffler Rear (an650k6/k7/k8)

Cover, Muffler Rear (an650k6/k7/k8)

7-2

Cover, Muffler Rear (an650ak6/ak7/ak8)

Cover, Muffler Rear (an650ak6/ak7/ak8)

8

Screw, Muffler Cover Rear ()

Screw, Muffler Cover Rear ()

9

Bracket, Front ()

Bracket, Front ()

10

Spacer ()

Spacer ()

11

Cushion ()

Cushion ()

12

Болт

Болт

13

Bracket, Rear ()

Bracket, Rear ()

14

Болт

Болт

15

Шайба

Шайба

18

Болт

Болт

19

Гайка

Гайка

20

Bolt, Muffler Bracket & Cvt ()

Bolt, Muffler Bracket & Cvt ()

22

Шайба

Шайба

23

Cover, Muffler (an650ak6/ak7/ak8)

Cover, Muffler (an650ak6/ak7/ak8)

24

Spacer, Muffler Cover Front (an650ak6/ak7/ak8)

Spacer, Muffler Cover Front (an650ak6/ak7/ak8)

25

Spacer, Muffler Cover Rear (an650ak6/ak7/ak8)

Spacer, Muffler Cover Rear (an650ak6/ak7/ak8)

26

Screw, Front (an650ak6/ak7/ak8)

Screw, Front (an650ak6/ak7/ak8)

27

Screw, Rear (an650ak6/ak7/ak8)

Screw, Rear (an650ak6/ak7/ak8)

28

.washer (6.5x18x1.5) (an650ak6/ak7/ak8)

.washer (6.5x18x1.5) (an650ak6/ak7/ak8)

30

Sensor, Oxygen (model K7/k8)

Sensor, Oxygen (model K7/k8)
