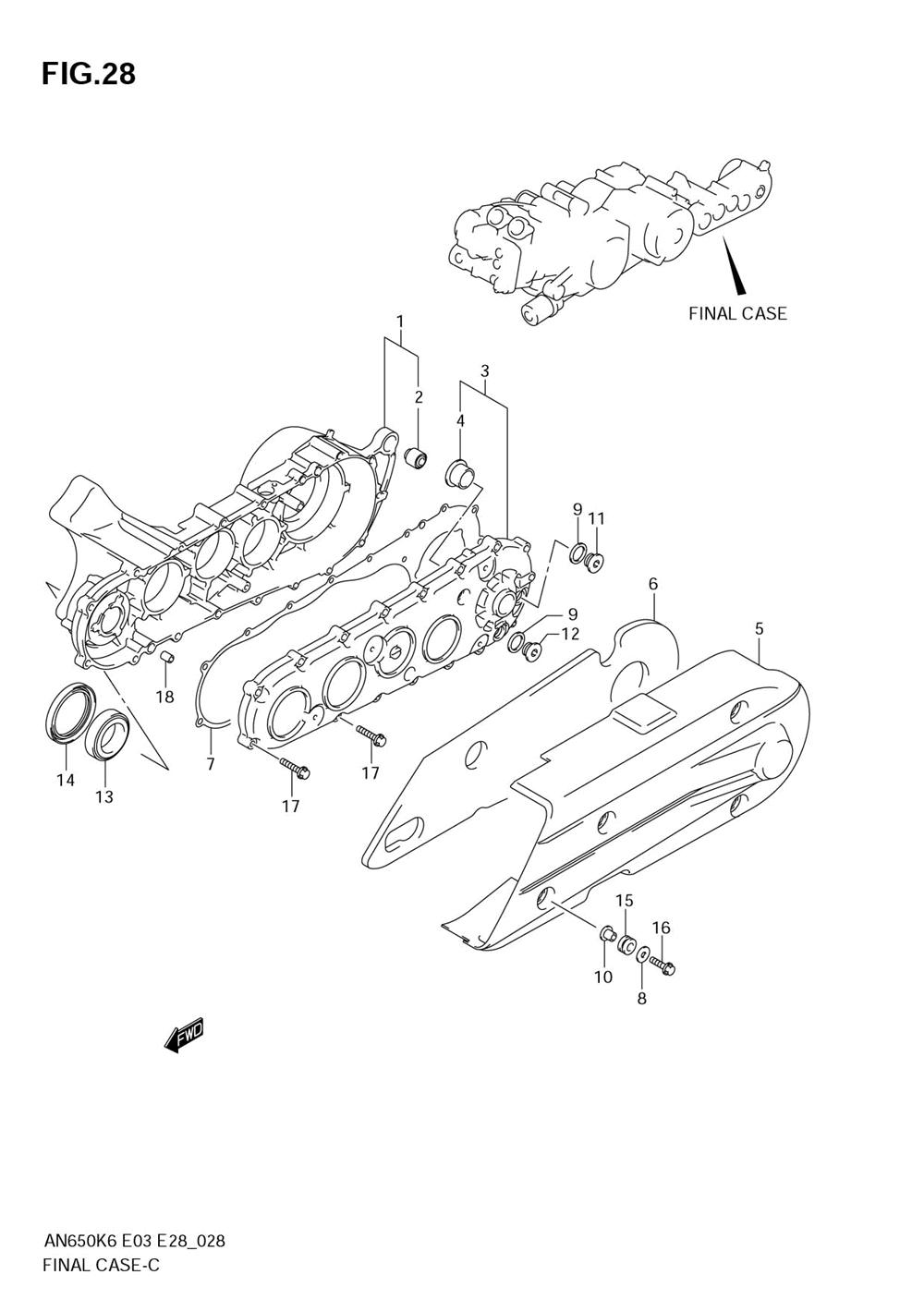

Case final (an650k6/k7/k8)

Suzuki AN650 (Burgman)
Suzuki
#oem кодцена
1
27450-10G00
Case, Final Gear Rh ()
2
09319-10032
.bush ()
3
27460-10G00
Case, Final Gear Lh ()
4
27433-24A00
.bush ()
5
27471-10G00
Cover, Final Gear Case ()
6
27472-10G01
Cushion, Final Gear Case ()
7
27551-10G00
Gasket, Final Gear Case ()
8
09160-06109
Washer, 6.5x18x1.6 (6.5x18x1.6)
9
09168-18003
Gasket, Oil Filler Plug (18x24.2x2)
10
09169-06062
Шайба
11
09248-18004
Plug, Oil Filler ()
12
09248-18008
Plug, Oil Drain ()
13
09265-35012
Bearing, Final Gear Case Rh (35x55x14)
14
09283-53001
Seal, Final Gear Case Rh (53x68.2x7)
15
09320-09016
Cushion, Holder ()
16
01547-0625B
Болт
17
01547-0630B
Болт
18
04211-09149
Dowel Pin ()
