Combination lamp Оригинальные запчасти для скутеров Suzuki AN650 (Burgman) (2008)

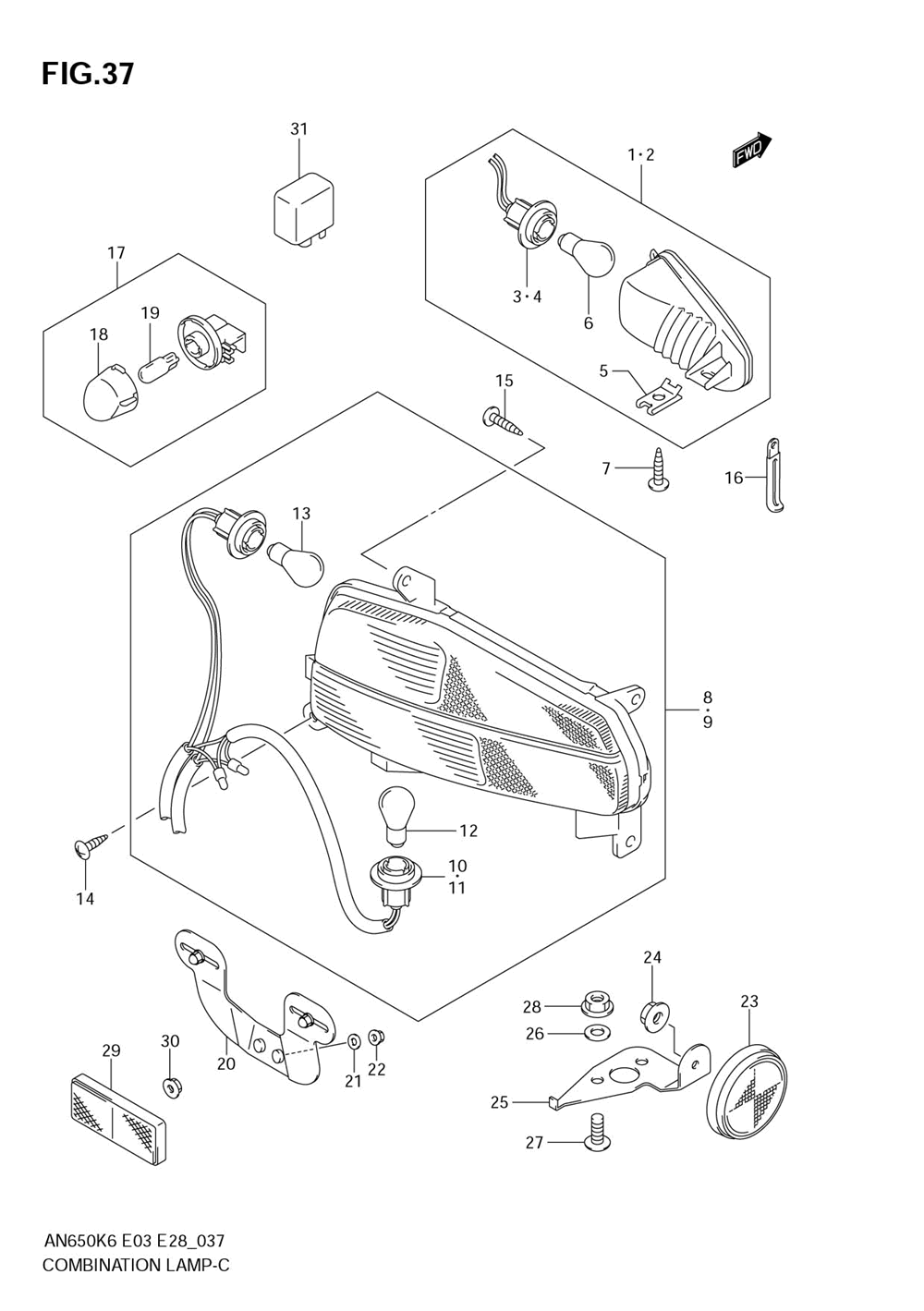

Combination lamp

Suzuki AN650 (Burgman)

oem код

название

цена

35601-10G50

Lamp Assy, Fr Turn Signal Rh ()

35602-10G50

Lamp Assy, Fr Turn Signal Lh ()

.socket, Rh ()

.socket, Lh ()

.nut ()

.bulb (12v, 21w) ()

Screw ()

Lamp Assy, Rear Comb Rh ()

35604-10G40

Lamp Assy, Rear Comb Lh ()

35658-10G40

.cord Assy Rh ()

35678-10G40

.cord Assy Lh ()

09471-12128

Bulb (12v, 21/5w) (for Tail/stop)

Screw ()

Screw ()

.clamp, Sw Leads ()

Lamp Assy, License ()

35912-14F11

.lens ()

09471-12216

.bulb (12v 5w) ()

35927-10G00

Bracket, License Plate ()

09160-06114

Шайба

08316-1006B

Гайка

35970-14A20

Reflector Assy, Rear Side ()

08316-1005B

Гайка

25-1

35975-10G00

Bracket, Rear Side, Rh ()

25-2

35976-10G00

Bracket, Rear Side, Lh ()

09160-06109

Washer, 6.5x18x1.6 ()

02142-0616B

Screw ()

35970-07F01

Reflector Assy, ()

38610-10G00

Relay Assy, Turnsignal Lamp ()
