Картер Оригинальные запчасти для скутеров Suzuki AN650 (Burgman) (2008)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

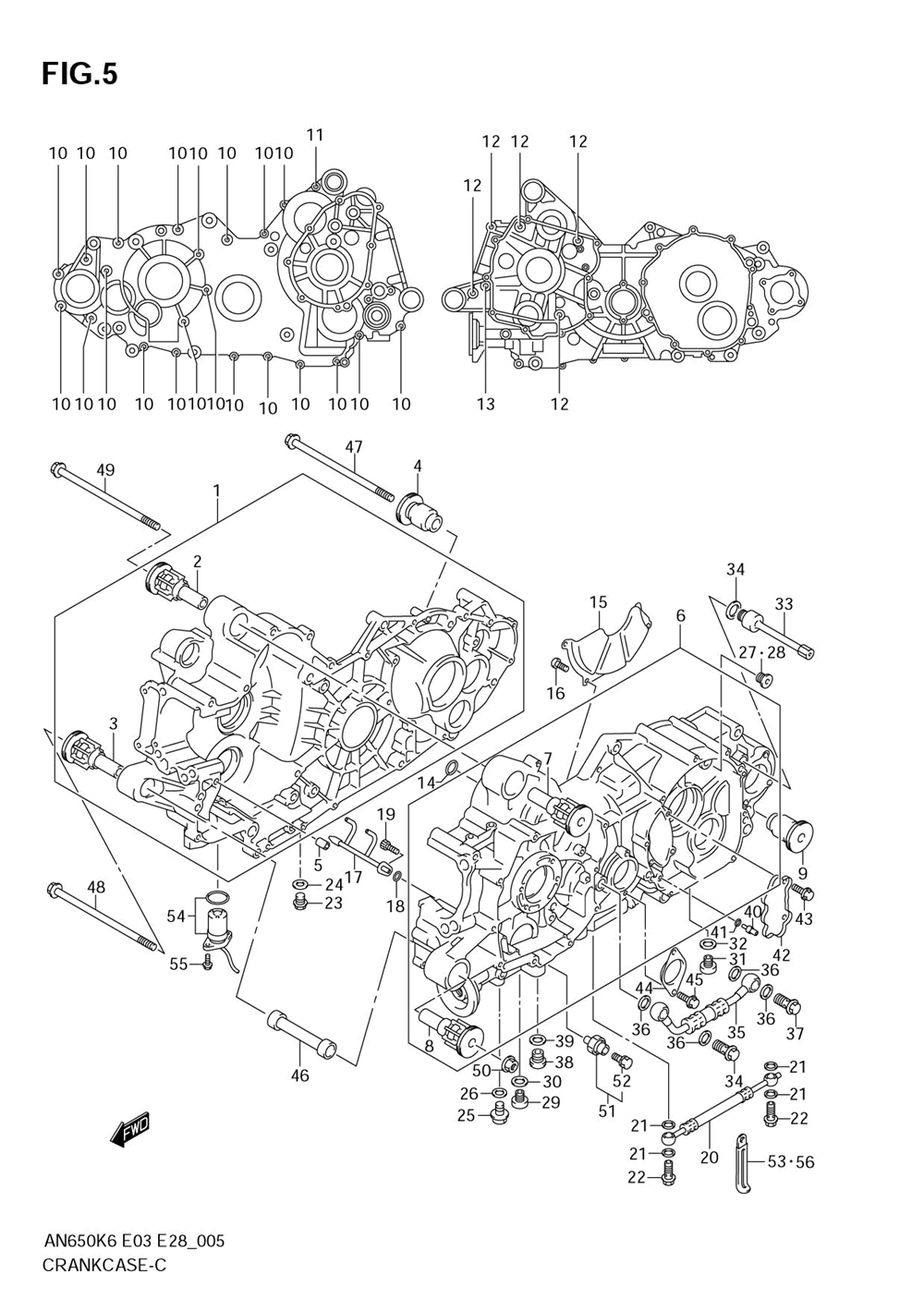

Картер

Suzuki AN650 (Burgman)

Картер

#

oem код

название

цена

1-1

Crankcase Set, Rh (model K6)

Crankcase Set, Rh (model K6)

2

.bush, Engine Mtg ()

.bush, Engine Mtg ()

3-1

.bush, Engine Mtg (model K6)

.bush, Engine Mtg (model K6)

3-2

.bush, Engine Mtg (model K7/k8)

.bush, Engine Mtg (model K7/k8)

4

Bush, Engine Mtg ()

Bush, Engine Mtg ()

5

Pin, Rr Swgarm Joint ()

Pin, Rr Swgarm Joint ()

6-1

Crankcase Set, Lh (model K6)

Crankcase Set, Lh (model K6)

10-1

Bolt (model K6)

Bolt (model K6)

10-2

Bolt, Crankcase (6x35) (model K7/k8)

Bolt, Crankcase (6x35) (model K7/k8)

11-1

Bolt (model K6)

Bolt (model K6)

12-1

Bolt (model K6)

Bolt (model K6)

12-2

Bolt, Crankcase (8x95) (model K7/k8)

Bolt, Crankcase (8x95) (model K7/k8)

13

Bolt, Crankcase (8x105) ()

Bolt, Crankcase (8x105) ()

14

O Ring, Crankcase ()

O Ring, Crankcase ()

15

Separator, Crankcase Oil ()

Separator, Crankcase Oil ()

16-1

Screw (model K6)

Screw (model K6)

16-2

Screw (model K7/k8)

Screw (model K7/k8)

17

Jet, Piston Cooling ()

Jet, Piston Cooling ()

18

..o Ring ()

..o Ring ()

19-1

Bolt (model K6)

Bolt (model K6)

19-2

Bolt, Piston Cooling Jet (model K7/k8)

Bolt, Piston Cooling Jet (model K7/k8)

20

Pipe, Crankcase Oil ()

Pipe, Crankcase Oil ()

21

Gasket, Oil Pipe Union Bolt ()

Gasket, Oil Pipe Union Bolt ()

22-1

Bolt, Oil Pipe Union (model K6)

Bolt, Oil Pipe Union (model K6)

23

Plug, Oil Gallery ()

Plug, Oil Gallery ()

24

Gasket, Oil Gallery Plug ()

Gasket, Oil Gallery Plug ()

25-1

Plug, Oil Drain (model K6)

Plug, Oil Drain (model K6)

25-2

Plug, Oil Gallery (model K7/k8)

Plug, Oil Gallery (model K7/k8)

26

Gasket (8.2x14x1.0) ()

Gasket (8.2x14x1.0) ()

27

Plug, T/m Breather ()

Plug, T/m Breather ()

28

Gasket (16x22x2.0) ()

Gasket (16x22x2.0) ()

29

Plug, Oil Drain ()

Plug, Oil Drain ()

30

.gasket (14.1x18x1.5) ()

.gasket (14.1x18x1.5) ()

31

Plug, T/m Oil Drain ()

Plug, T/m Oil Drain ()

32

Gasket, Oil Level Plug ()

Gasket, Oil Level Plug ()

33

Plug, T/m Oil Filler ()

Plug, T/m Oil Filler ()

35

Pipe, Oil Pump No.2 ()

Pipe, Oil Pump No.2 ()

36

Gasket, Oil Pipe Union Bolt ()

Gasket, Oil Pipe Union Bolt ()

37

Bolt, Oil Pipe Union ()

Bolt, Oil Pipe Union ()

38

Plug, Oil Gallery ()

Plug, Oil Gallery ()

40

Jet, Oil Gallery ()

Jet, Oil Gallery ()

41

O Ring, Oil Gallery Jet ()

O Ring, Oil Gallery Jet ()

42

Cover, Crankcase Lh ()

Cover, Crankcase Lh ()

43

Болт

Болт

44

Cap, Primary Shaft Lh ()

Cap, Primary Shaft Lh ()

46

Spacer, Eng Mtg Front ()

Spacer, Eng Mtg Front ()

47

Bolt, Eng Mtg Lower ()

Bolt, Eng Mtg Lower ()

48

Bolt, Eng Mtg Front ()

Bolt, Eng Mtg Front ()

49

Bolt, Eng Mtg Upper ()

Bolt, Eng Mtg Upper ()

50-1

Nut (model K6)

Nut (model K6)

50-2

Nut, Upper (model K7/k8)

Nut, Upper (model K7/k8)

51

Switch Assy, Oil Pressure ()

Switch Assy, Oil Pressure ()

52

.bolt ()

.bolt ()

53

.clamp, Sw Leads ()

.clamp, Sw Leads ()

54

Switch Assy, Oil Level ()

Switch Assy, Oil Level ()

55

Болт

Болт
