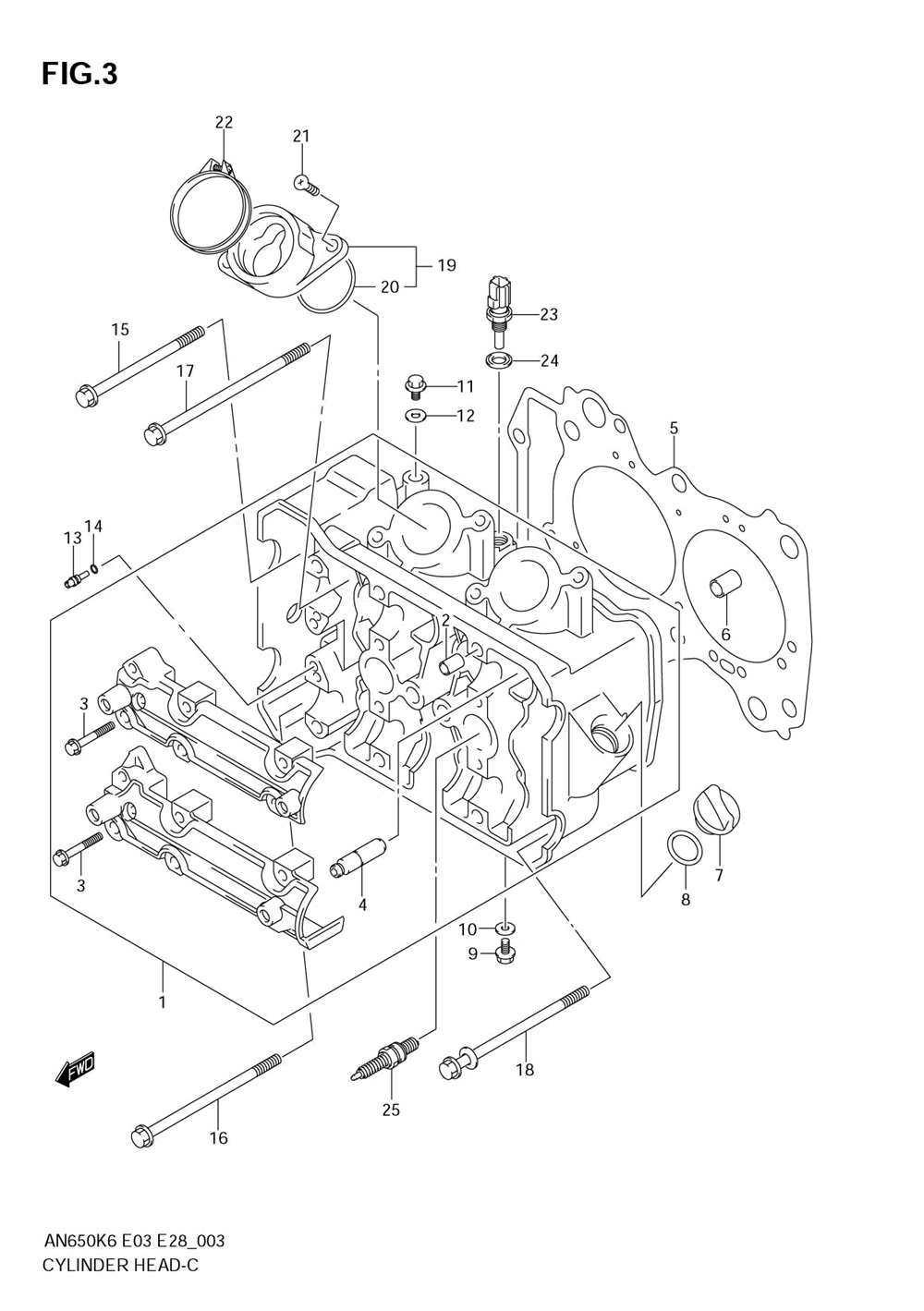

ГОЛОВКА ЦИЛИНДРА

Suzuki AN650 (Burgman)
Suzuki
#oem кодцена
1
11100-10G10
Head Assy, Cylinder ()
2
09206-08001
Pin ()
3
09103-06266
.bolt, Camshaft Housing ()
4
11115-33D71
Guide, Valve (os:0.3) (opt)
5
11141-10G00
Gasket, Cylinder Head ()
6
04211-13189
Pin ()
7
11971-25D00
Plug, Engine Oil Filler ()
8
09280-17003
O Ring, Oil Filler Cap ()
9
09103-06222
Bolt, Oil Gallery Exhaust ()
10
09168-06023
Washer, Oil Gallery Exhaust ()
11
09103-08335
Bolt, Oil Gallery In ()
12
09168-08016
Gasket (8.2x14x1.0) ()
13
09493-28010
Jet, Oil Gall Cyl Head ()
14
09280-04004
O Ring, Oil Gallery Jet ()
15
11161-10G50
Bolt, Cylinder Head (l:110) ()
16
09103-08212
Bolt, Engine Mtg ()
17
09116-10130
Bolt, Cylinder Head (l:150) ()
18
09116-10133
Bolt, Cylinder Head (l:155) ()
19
13101-10G00
Pipe Assy Intake ()
20
09280-40010
.o Ring, Intake Pipe ()
21
02122-0616B
Screw ()
22
09402-58208
Clamp, Intake Pipe ()
23
13650-10G00
Sensor, Water Temp ()
24
09168-12017
Gasket ()
25-1
09482-00456
Spark Plug (ngk, Cr8e) ()
25-2
09482-00457
Spark Plug (nd, U24esr-n) ()
25-3
09482-00516
Spark Plug (ngk, Cr7e) (opt)
25-4
09482-00515
Spark Plug (nd, U22esr-n) (opt)
25-5
09482-00458
Spark Plug (ngk, Cr9e) (opt)
25-6
09482-00459
Spark Plug (nd, U27esr-n) (opt)
