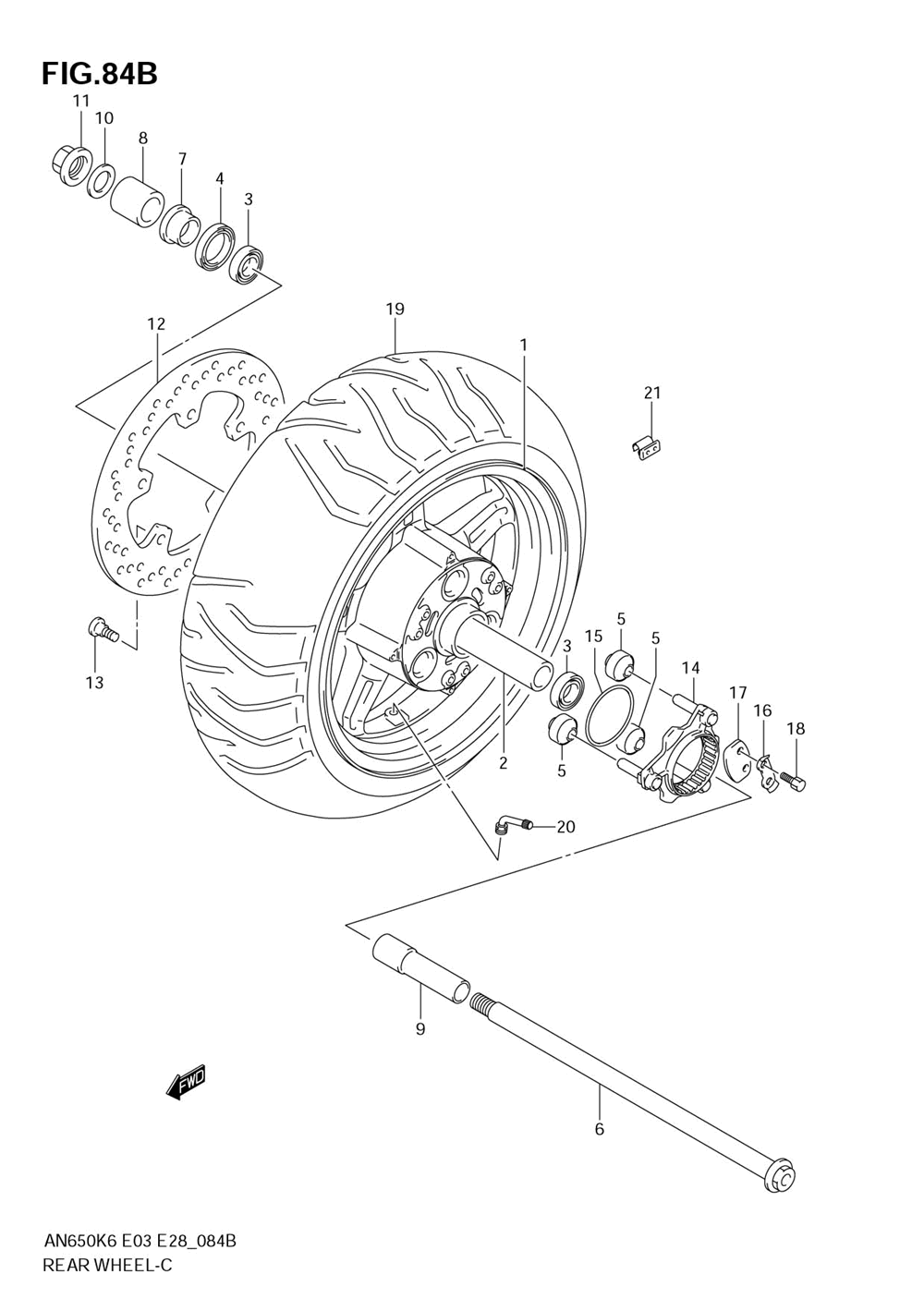

Rear wheel (an650k8)

Suzuki AN650 (Burgman)

Rear wheel (an650k8)

#

oem код

название

цена

1

64111-10G10-YD8

Wheel, Rear (14m/cxmt4.50) ()

Wheel, Rear (14m/cxmt4.50) ()

2

Spacer, Rear Hub Bearing ()

Spacer, Rear Hub Bearing ()

3

Bearing, Rear Hub ()

Bearing, Rear Hub ()

4

Seal, Rear Wheel Bearing Rh ()

Seal, Rear Wheel Bearing Rh ()

5

Bush, Rear Hub ()

Bush, Rear Hub ()

6

Axle, Rear ()

Axle, Rear ()

7

Spacer, Rear Axle Rh No.2 ()

Spacer, Rear Axle Rh No.2 ()

8

Spacer, Rear Axle Rh No.1 ()

Spacer, Rear Axle Rh No.1 ()

9

Spacer, Rear Axle Lh ()

Spacer, Rear Axle Lh ()

10

Washer ()

Washer ()

11

Гайка

Гайка

12

Disc, Rear Brake ()

Disc, Rear Brake ()

13

Bolt, Disc ()

Bolt, Disc ()

14

Joint Assy, Rear Hub Driven ()

Joint Assy, Rear Hub Driven ()

15

O Ring, Driven Joint ()

O Ring, Driven Joint ()

16

Washer, Joint ()

Washer, Joint ()

17

Washer, Thrust ()

Washer, Thrust ()

18

Bolt, Driven Joint Washer ()

Bolt, Driven Joint Washer ()

19

Tire, Rear, 160/60r14m/c 65h (th01 R Radial)

Tire, Rear, 160/60r14m/c 65h (th01 R Radial)

20

Нипель

Нипель
