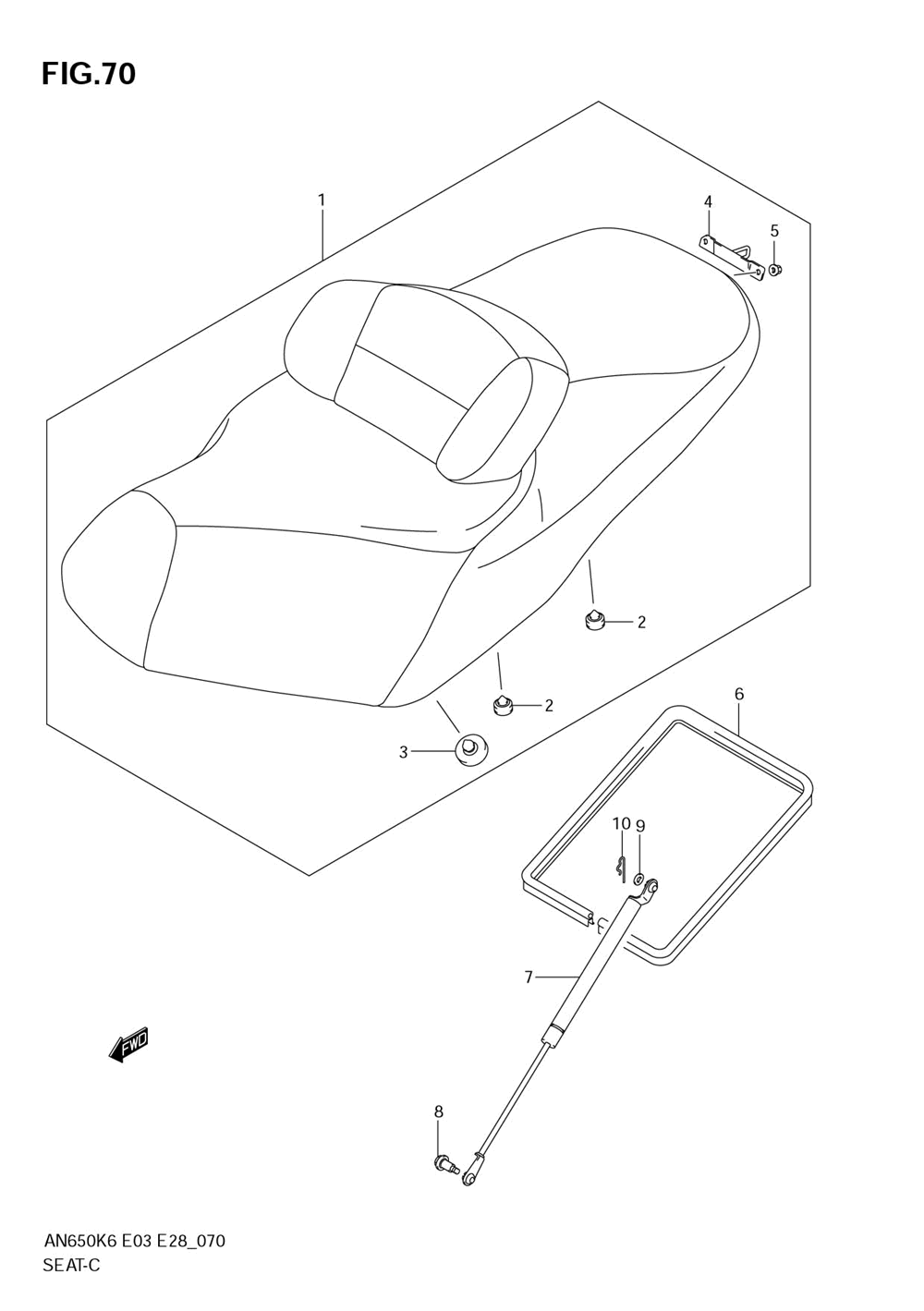

Сидение

Suzuki AN650 (Burgman)

Сидение

#

oem код

название

цена

1-1

45100-10G31-FC8

Seat Assy (an650k6)

Seat Assy (an650k6)

1-2

45100-10G32-BYA

Seat Assy (an650ak6)

Seat Assy (an650ak6)

2

.cushion ()

.cushion ()

3

.cushion, Front ()

.cushion, Front ()

4

.striker, Seat Lock ()

.striker, Seat Lock ()

5

.nut ()

.nut ()

6-1

Molding, Seat (model K6)

Molding, Seat (model K6)

6-2

Molding, Seat (model K7/k8)

Molding, Seat (model K7/k8)

7

Damper Assy, Seat ()

Damper Assy, Seat ()

8-1

Bolt, Seat Damper Lower (model K6)

Bolt, Seat Damper Lower (model K6)

8-2

Bolt, Seat Damper Lower (model K7/k8)

Bolt, Seat Damper Lower (model K7/k8)

9

Washer ()

Washer ()

10

Pin ()

Pin ()
