Side leg shield (model k6) Оригинальные запчасти для скутеров Suzuki AN650 (Burgman) (2008)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

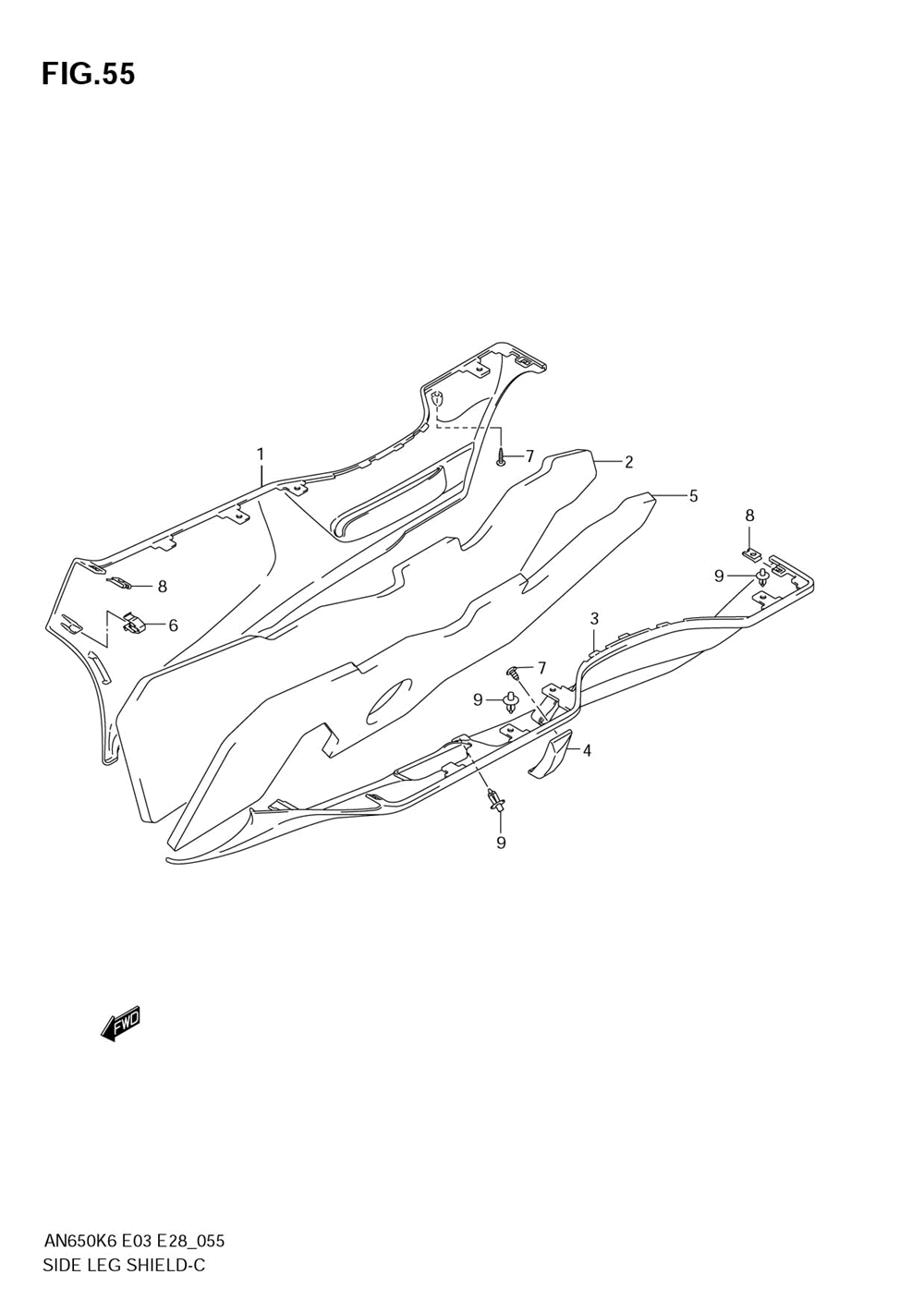

Side leg shield (model k6)

Suzuki AN650 (Burgman)

Side leg shield (model k6)

#

oem код

название

цена

1-1

48171-10G00-YC3

Shield, Leg Side Rh (white) (an650)

Shield, Leg Side Rh (white) (an650)

1-2

48171-10G00-YHG

Shield, Leg Side Rh (gray) (e3,e33)

Shield, Leg Side Rh (gray) (e3,e33)

1-3

48171-10G00-YHF

Shield, Leg Side (an650a E28)

Shield, Leg Side (an650a E28)

2

Cushion, Rh ()

Cushion, Rh ()

3-1

48181-10G20-YC3

Shield, Leg Side Lh (white) (an650)

Shield, Leg Side Lh (white) (an650)

3-2

48181-10G20-YHG

Shield, Leg Side Lh (gray) (e3,e33)

Shield, Leg Side Lh (gray) (e3,e33)

3-3

48181-10G20-YHF

Shield, Leg Side Lh (gray) (an650a E28)

Shield, Leg Side Lh (gray) (an650a E28)

3-4

48181-10G20-YKZ

Shield, Leg Side Lh (blue) (an650a E28)

Shield, Leg Side Lh (blue) (an650a E28)

4

Cover, Lh ()

Cover, Lh ()

5

Cushion, Lh ()

Cushion, Lh ()

6

Clip ()

Clip ()

7

Винт

Винт

8

Гайка

Гайка

9

09409-08308-5ES

Clip (black) ()

Clip (black) ()
