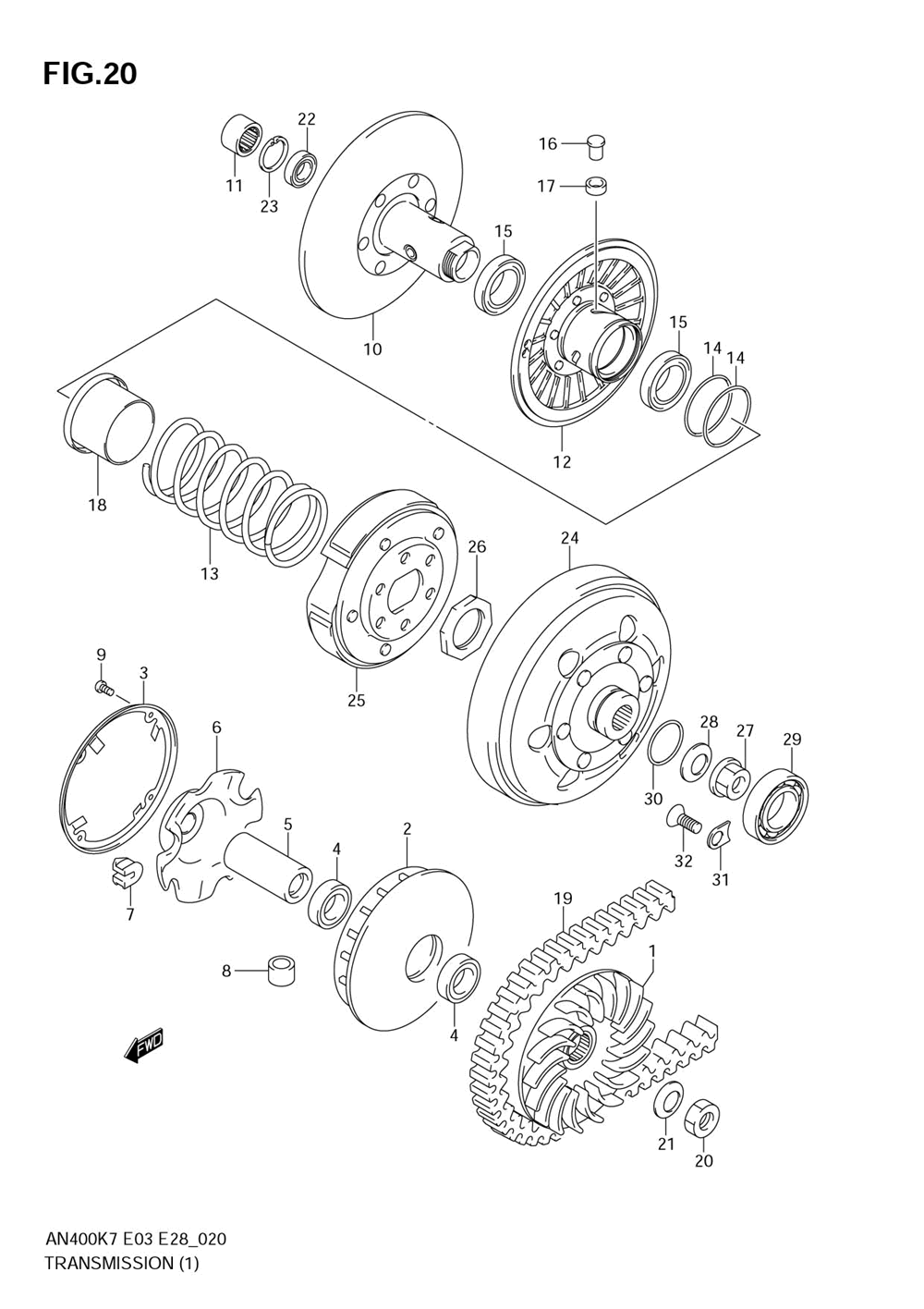

Трансмиссия 1 Оригинальные запчасти для скутеров Suzuki AN400 (Burgman) (2007)

Трансмиссия 1

Suzuki AN400 (Burgman)

oem код

название

цена

Face, Fixed Drive

Face, Movable Drive

Cover, Movable

Seal, Movable Drive

Spacer, Movable Drive

21431-05H00

Plate, Movable Drive

21481-14F00

Damper, Movable Drive Plate

21650-15F40

Roller, Movable Drive

02142-0410A

Винт

21210-05H00

Face, Fixed Driven

21214-15F00

Bearing, Fixed Driven, Rh

21240-05H00

Face, Movable Driven

21243-15F30

Spring, Movable Driven

21245-15F00

O-ring, Movable Driven

21247-31G00

Seal, Movable Driven Oil

21248-15F01

Pin, Movable Driven

21249-15F00

Spacer, Movable Driven Pin

21471-15F20

Sheet, Movable Driven

V Belt, Drive

Гайка

Шайба

Подшипник

СТОПОРНОЕ КОЛЬЦО

Housing, Clutch

Clutch Assy, Sho

Nut, Shoe Clutch

Nut, Clutch Housing

Washer, Clutch Housing

09262-35064

Bearing, Clutch Housing

09280-32008

O Ring (dd:2.0, Id:31)

24742-44B00

Retainer, Idle Shaft, Lh

02122-0616A

Винт
