Приборная панель Оригинальные запчасти для скутеров Suzuki AN650,A (Burgman) (2007)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

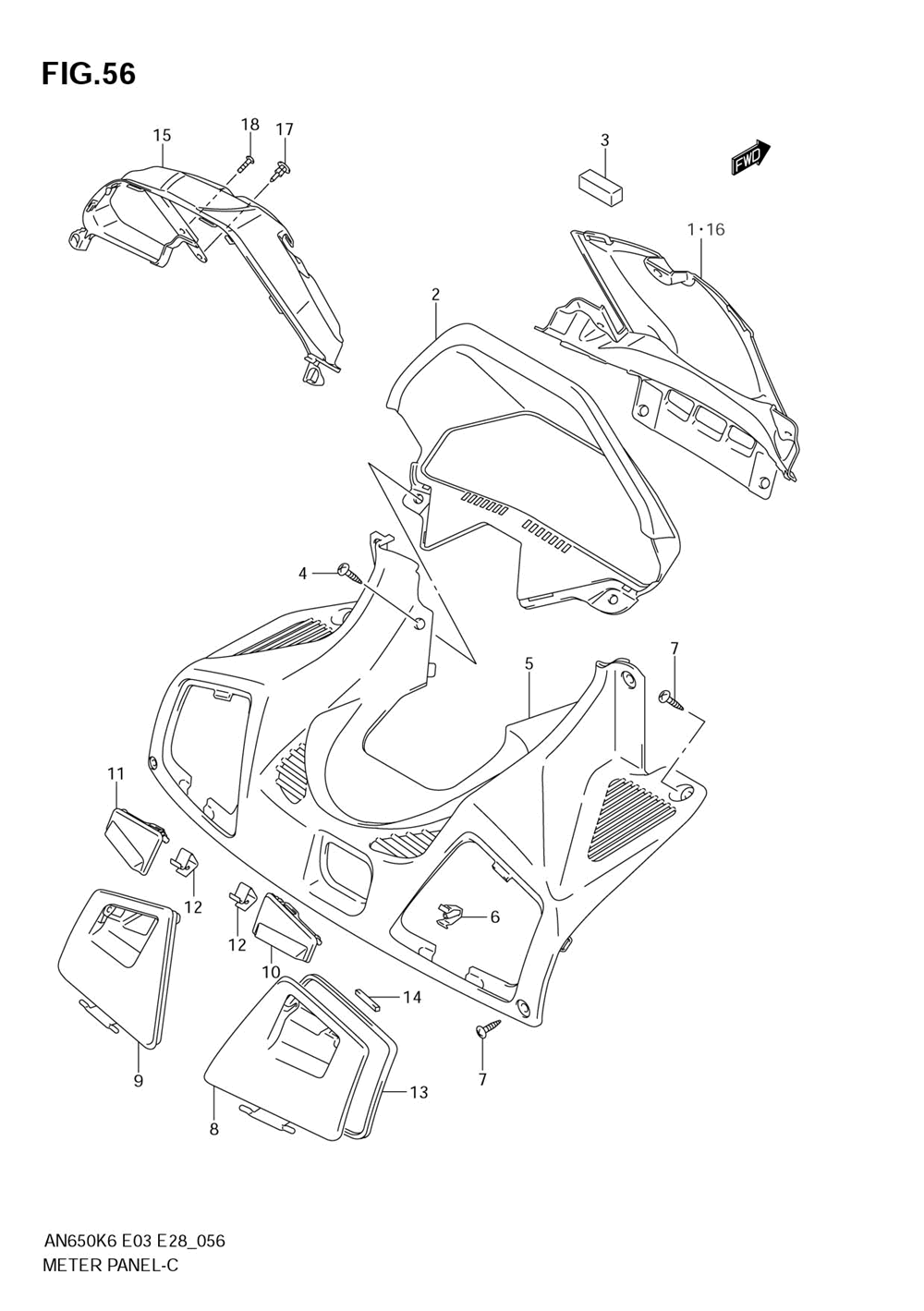

Приборная панель

Suzuki AN650,A (Burgman)

Приборная панель

#

oem код

название

цена

1

94421-10G01-Y0J

Panel, Meter Front (gray)

Panel, Meter Front (gray)

2

94420-10G00-Y0J

Panel, Meter Rear (gray)

Panel, Meter Rear (gray)

3

.cushion

.cushion

4

Screw, Rear Panel

Screw, Rear Panel

5

94671-10G00-Y0J

Panel, Front Lower (gray)

Panel, Front Lower (gray)

6

Зажим

Зажим

7

Screw, Cover

Screw, Cover

8

92140-10G10-Y0J

Lid, Front Panel Rh (gray)

Lid, Front Panel Rh (gray)

9

92150-10G10-Y0J

Lid, Front Panel Lh (gray)

Lid, Front Panel Lh (gray)

10

92143-10G10-Y0J

.lock, Panel Rh (gray)

.lock, Panel Rh (gray)

11

92153-10G10-Y0J

.lock, Panel Lh (gray)

.lock, Panel Lh (gray)

12

.spring, Lid

.spring, Lid

13

.cushion

.cushion

15

94421-10GA0-Y0J

Panel, Meter Front Upper

Panel, Meter Front Upper

16

94424-10GA0-Y0J

Panel, Meter Front Lower

Panel, Meter Front Lower

17

09409-08308-5ES

Клипса (черн.)

Клипса (черн.)

18

Винт

Винт
