Rear wheel (an650ak6/ak7) Оригинальные запчасти для скутеров Suzuki AN650,A (Burgman) (2007)

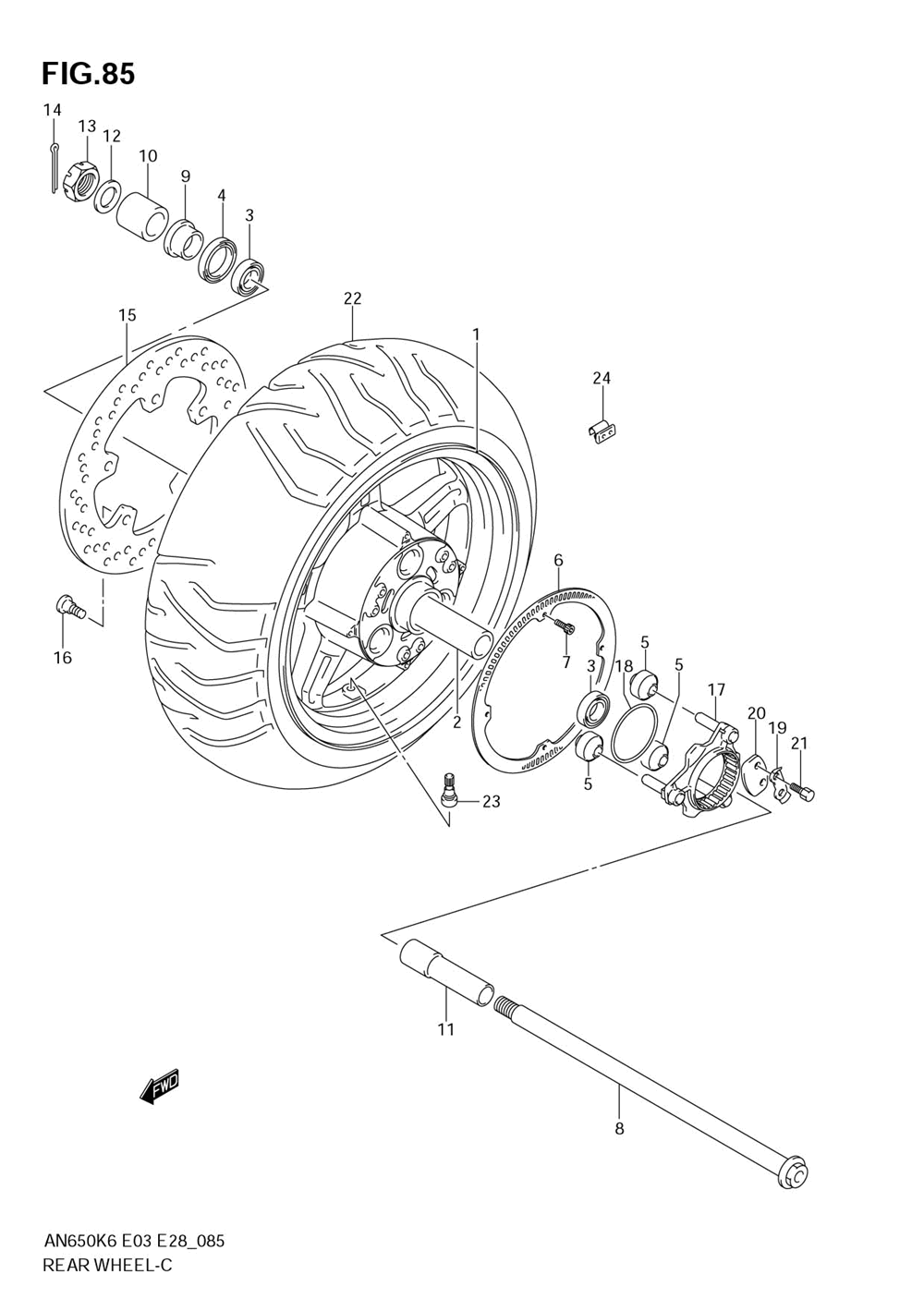

Rear wheel (an650ak6/ak7)

Suzuki AN650,A (Burgman)

oem код

название

цена

64111-10G20-YD8

Wheel, Rear (14m/cxmt4.50)

64731-10G00

Spacer, Rear Hub Bearing

08123-62047

Bearing, Rear Hub

09285-28001

Seal, Rear Wheel Bearing Rh

Bush, Rear Hub

Ring, Speed Sens

Болт

Ось задняя

Spacer, Rear Axle Rh No.2

64751-10G10

Spacer, Rear Axle Rh No.1

64772-10G00

Spacer, Rear Axle Lh

12-1

08322-0118B

Шайба

08314-40187

Гайка

14-1

04111-4040A

Штифт

14-2

Шплинт

Disc, Rear Brake

Bolt, Disc

Joint Assy, Rear Hub Driven

O Ring, Driven Joint

Washer, Joint

Шайба

Bolt, Driven Joint Washer

65110-10G00

Tire, Rear, 160/60r14m/c 65h

23-1

43130-24A00

Valve Assy, Wheel Rim (tr412)

23-2

43130-10G00

Valve Assy, Wheel Rim (tr412)
