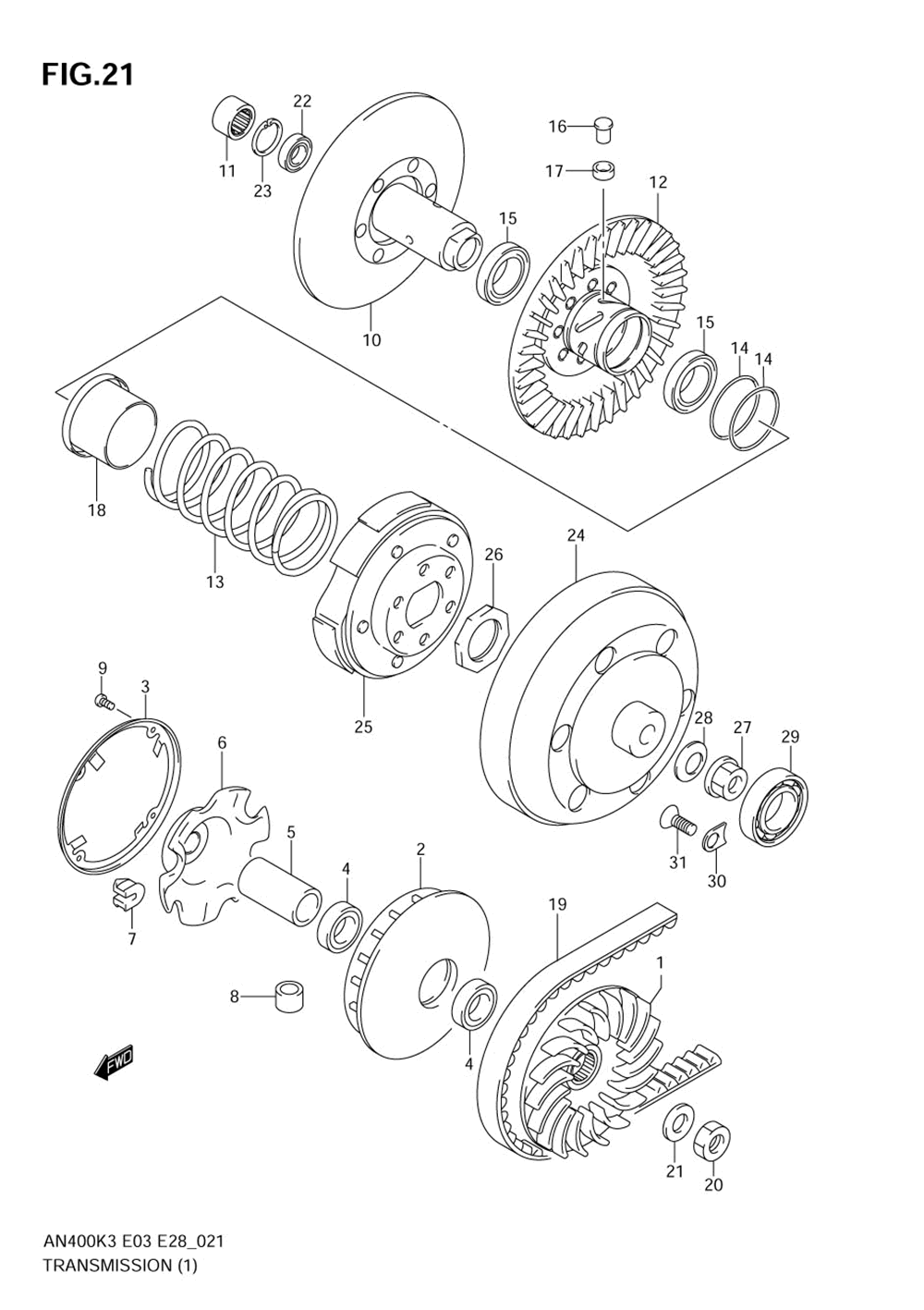

Трансмиссия 1

Suzuki AN400,S (Burgman)
Suzuki
#oem кодцена
1
21110-15F10
Face, Fixed Drive
2
21120-15F10
Face, Movable Drive
3
21122-15F10
Cover, Movable
4
21124-15F00
Seal, Movable Drive
5
21125-15F10
Spacer, Movable Drive
6
21431-15F00
Plate, Movable Drive
7
21481-14F00
Damper, Movable Drive Plate
8
21650-15F40
Roller, Movable Drive
9
02142-0410A
Винт
10
21210-15F10
Face, Fixed Driven
11
21214-15F00
Bearing, Fixed Driven, Rh
12
21240-15F10
Face, Movable Driven
13
21243-15F20
Spring, Movable Driven
14
21245-15F00
O-ring, Movable Driven
15
21247-15F00
Seal, Movable Driven
16
21248-15F01
Pin, Movable Driven
17
21249-15F00
Spacer, Movable Driven Pin
18
21471-15F00
Sheet, Movable Driven
19
27601-15F10
V Belt, Drive
20
09140-18501
Гайка
21
09164-18001
Шайба
22
08123-69047
Подшипник
23
08331-4137A
СТОПОРНОЕ КОЛЬЦО
24
21220-15F11
Housing, Clutch
25
21501-15F01
Clutch Assy, Shoe
26
21518-15F00
Nut, Shoe Clutch
27
09140-16002
Nut, Clutch Housing
28
09164-16002
Washer, Clutch Housing
29
09262-35064
Bearing, Clutch Housing
30
24742-44B00
Retainer, Idle Shaft, Lh
31
02122-0616A
Винт
