Cvt (model k3/k4) Оригинальные запчасти для скутеров Suzuki AN650 (2005)

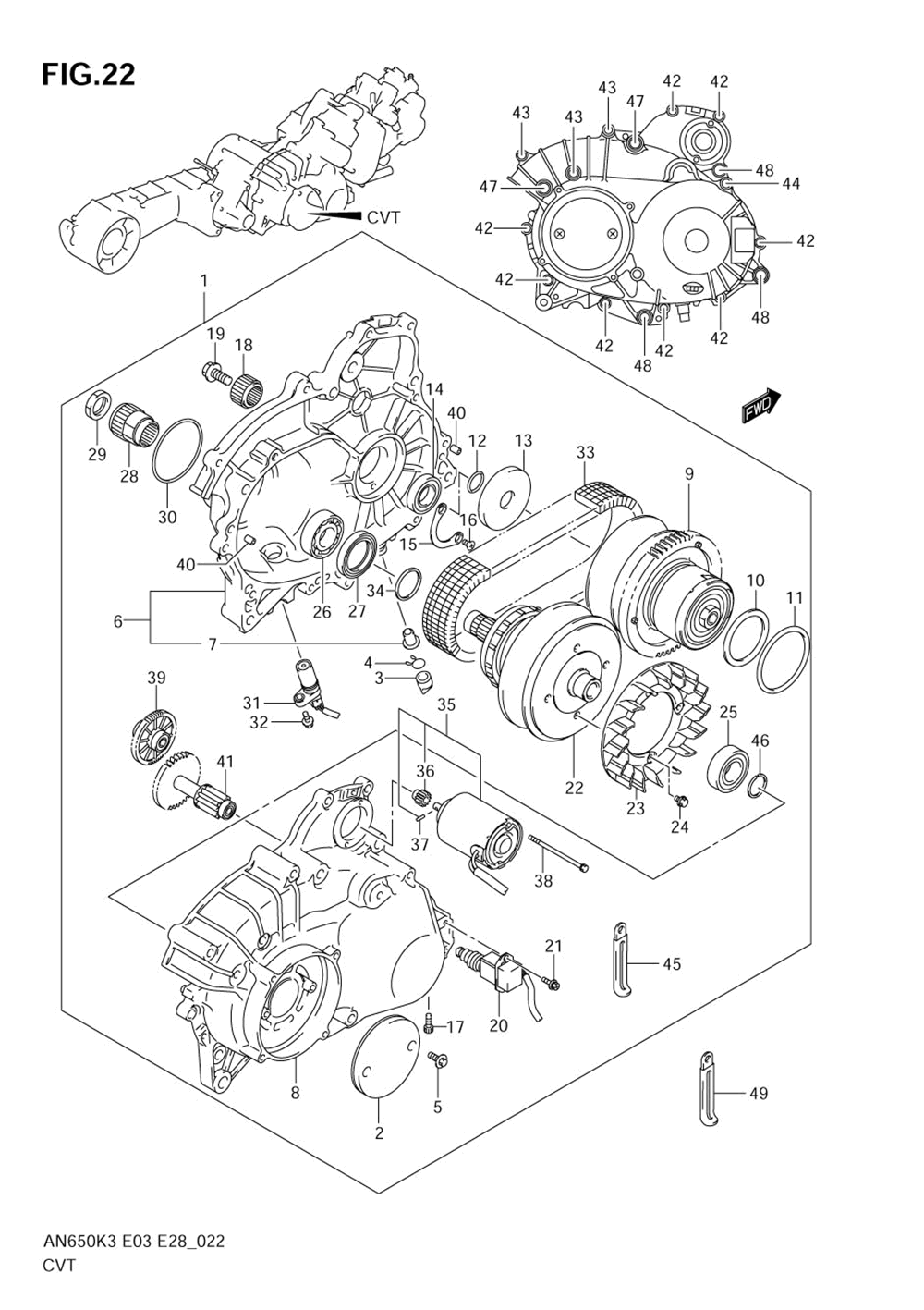

Cvt (model k3/k4)

Suzuki AN650

oem код

название

цена

21000-10820

Unit Set, Cvt

11388-10G00

.filter, Belt Cooling

.cap, Drain

.clip

.bolt (6x20)

.case, Cvt

..union, Cvt Drain

.cover, Cvt

.pulley Assy, Primary

21746-10G00

.shim Set, Primary Pulley (t:0.12/0.32/0.52/0.72/0.92/1.12/1.32)

21747-10G00

.o Ring, Pri Pulley Rh

09280-21014

.o Ring, Pri Fixed Lh

21757-10G00

.seal, Primary Pulley Dust

21751-10G00

.bearing, Pri Pulley Lh

21753-10G00

.retainer, Pri Bearing Lh

21754-10G00

.screw, Pulley Bearing

Bolt, Shaft Stop

.adapter, Pri Fixed

.bolt, Pri Fixed

.sensor Assy, Pulley Position

24833-58E90

.bolt, Position

21081-10G00

.pulley Assy, Secondary

21815-10G00

.fan, Sec Fixed Pulley

21816-10G00

.bolt, Fan Pulley

21817-10G00

.bearing, Secondary Rh

21851-10G00

.bearing, Secondary Lh

21852-10G10

.seal, Secondary Pulley

21855-10G00

.adapter, Secondary Fixed

.nut, Sec Adapter

.o Ring, Cvt Case

.sensor Assy, Sec

.bolt, Sec Sensor

.v Belt, Drive

.collar, Sec Pulley Adpt

.motor Assy Cvt

..gear, Actr Drive

..pin, Actr Drive

.bolt, Motor

.gear Assy, Actuator Counter

21925-10G00

.pin, Cvt Cover

21078-10G00

.gear Assy, Actr Idler

21931-10G00

.bolt, Cvt Cover (l:30)

21932-10G00

.bolt, Cvt Cover (l:70)

21933-10G00

.bolt, Cvt Cover (l:90)

09404-08205

Стяжка L-62

21818-10G00

.ring Sec Pulley

09103-10119

Bolt, Cvt Unit (l:140)

09103-10318

Bolt, Cvt Unit (l:110)

09404-06432

Зажим
