Картер Оригинальные запчасти для скутеров Suzuki AN650 (2004)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

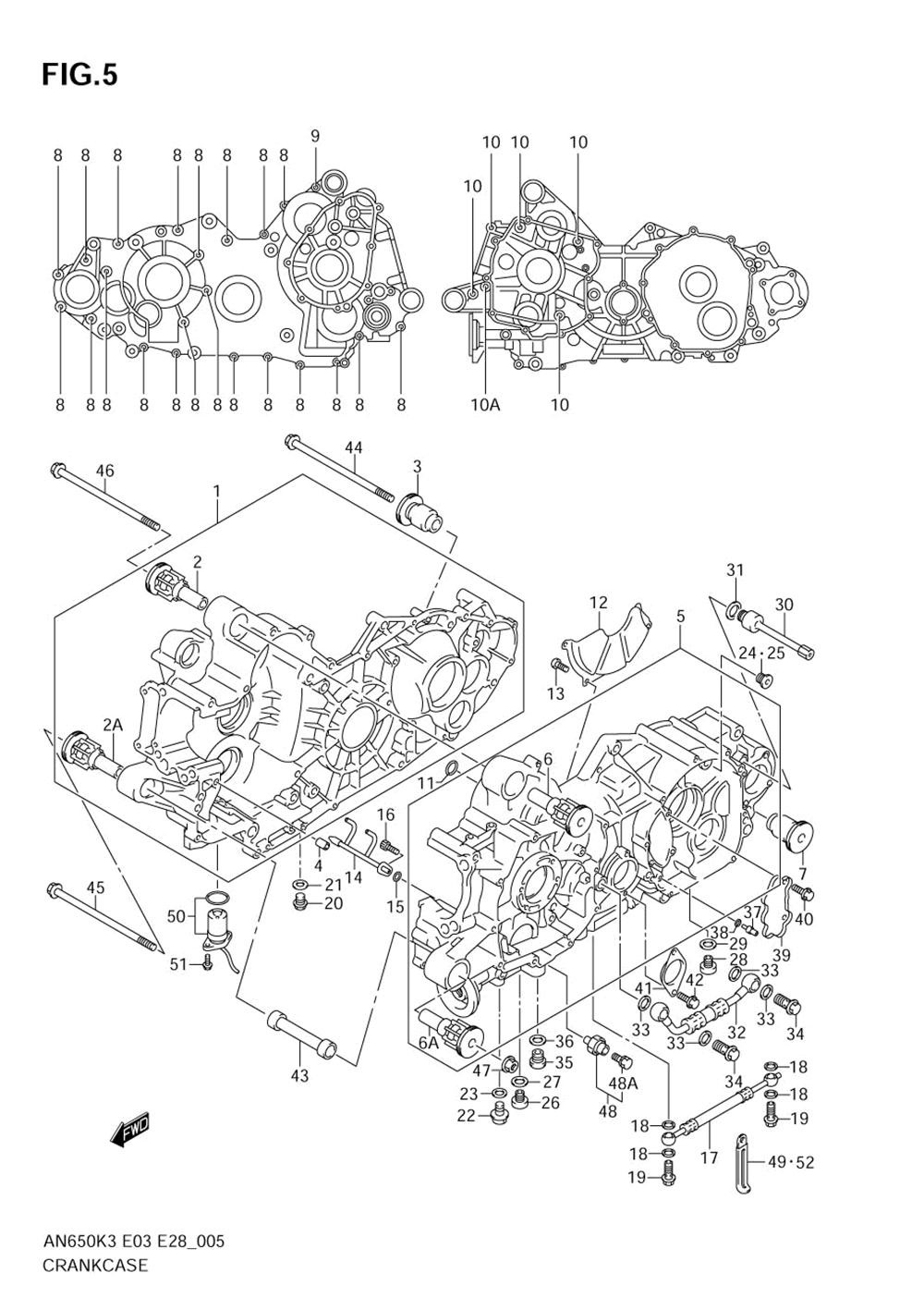

Картер

Suzuki AN650

Картер

#

oem код

название

цена

1-1

Crankcase Set, Rh (model K3<-11310-10821)

Crankcase Set, Rh (model K3<-11310-10821)

1-2

Crankcase Set, Rh

Crankcase Set, Rh

2-1

.bush, Engine Mtg (model K3<-11652-10g00)

.bush, Engine Mtg (model K3<-11652-10g00)

2-2

.bush, Engine Mtg

.bush, Engine Mtg

2A

.bush, Engine Mtg

.bush, Engine Mtg

3

Bush, Engine Mtg

Bush, Engine Mtg

4

Pin, Rr Swgarm Joint

Pin, Rr Swgarm Joint

5-1

Crankcase Set, Lh (model K3<-11320-10820)

Crankcase Set, Lh (model K3<-11320-10820)

5-2

Crankcase Set, Lh

Crankcase Set, Lh

8

Bolt, Water Pump

Bolt, Water Pump

9

Болт

Болт

10

Bolt, Crankcase (8x95)

Bolt, Crankcase (8x95)

10A

Bolt, Crankcase (8x105)

Bolt, Crankcase (8x105)

11

O Ring, Crankcase

O Ring, Crankcase

12

Separator, Crankcase Oil

Separator, Crankcase Oil

13

Винт

Винт

14

Jet, Piston Cooling

Jet, Piston Cooling

15

..o Ring

..o Ring

16

Bolt, Piston Cooling Jet

Bolt, Piston Cooling Jet

17

Pipe, Crankcase Oil

Pipe, Crankcase Oil

18

Gasket, Oil Pipe Union Bolt

Gasket, Oil Pipe Union Bolt

19

Bolt, Oil Pipe Union

Bolt, Oil Pipe Union

20

Сливная пробка

Сливная пробка

21

Gasket, Oil Gallery Plug

Gasket, Oil Gallery Plug

22

Сливная пробка

Сливная пробка

23-1

Прокладка

Прокладка

23-2

Прокладка (8.2x14x1.0)

Прокладка (8.2x14x1.0)

24-1

Сливная пробка

Сливная пробка

24-2

Plug, T/m Breather

Plug, T/m Breather

25

Gasket (16x22x2.0)

Gasket (16x22x2.0)

26

Plug, Oil Drain

Plug, Oil Drain

27

.gasket (14.1x18x1.5)

.gasket (14.1x18x1.5)

28

Plug, T/m Oil Drain

Plug, T/m Oil Drain

29

Прокладка

Прокладка

30

Plug, T/m Oil Filler

Plug, T/m Oil Filler

32-1

Pipe, Oil Pump No.2

Pipe, Oil Pump No.2

32-2

Pipe, Oil Pump No.2

Pipe, Oil Pump No.2

33

Gasket, Oil Pipe Union Bolt

Gasket, Oil Pipe Union Bolt

34

Bolt, Oil Pipe Union

Bolt, Oil Pipe Union

35

Сливная пробка

Сливная пробка

37

Jet, Oil Gallery

Jet, Oil Gallery

38

Кольцо

Кольцо

39

Cover, Crankcase Lh

Cover, Crankcase Lh

40

Болт

Болт

41-1

Cap, Primary Shaft Lh

Cap, Primary Shaft Lh

41-2

Cap, Primary Shaft Lh

Cap, Primary Shaft Lh

43

Spacer, Eng Mtg Front

Spacer, Eng Mtg Front

44

Bolt, Eng Mtg Lower

Bolt, Eng Mtg Lower

45

Bolt, Eng Mtg Front

Bolt, Eng Mtg Front

46

Bolt, Eng Mtg Upper

Bolt, Eng Mtg Upper

47

Nut, Upper

Nut, Upper

48

Датчик давления масла

Датчик давления масла

48A

Болт

Болт

49

Зажим

Зажим

50

Switch Assy, Oil Level

Switch Assy, Oil Level

51

Болт

Болт
