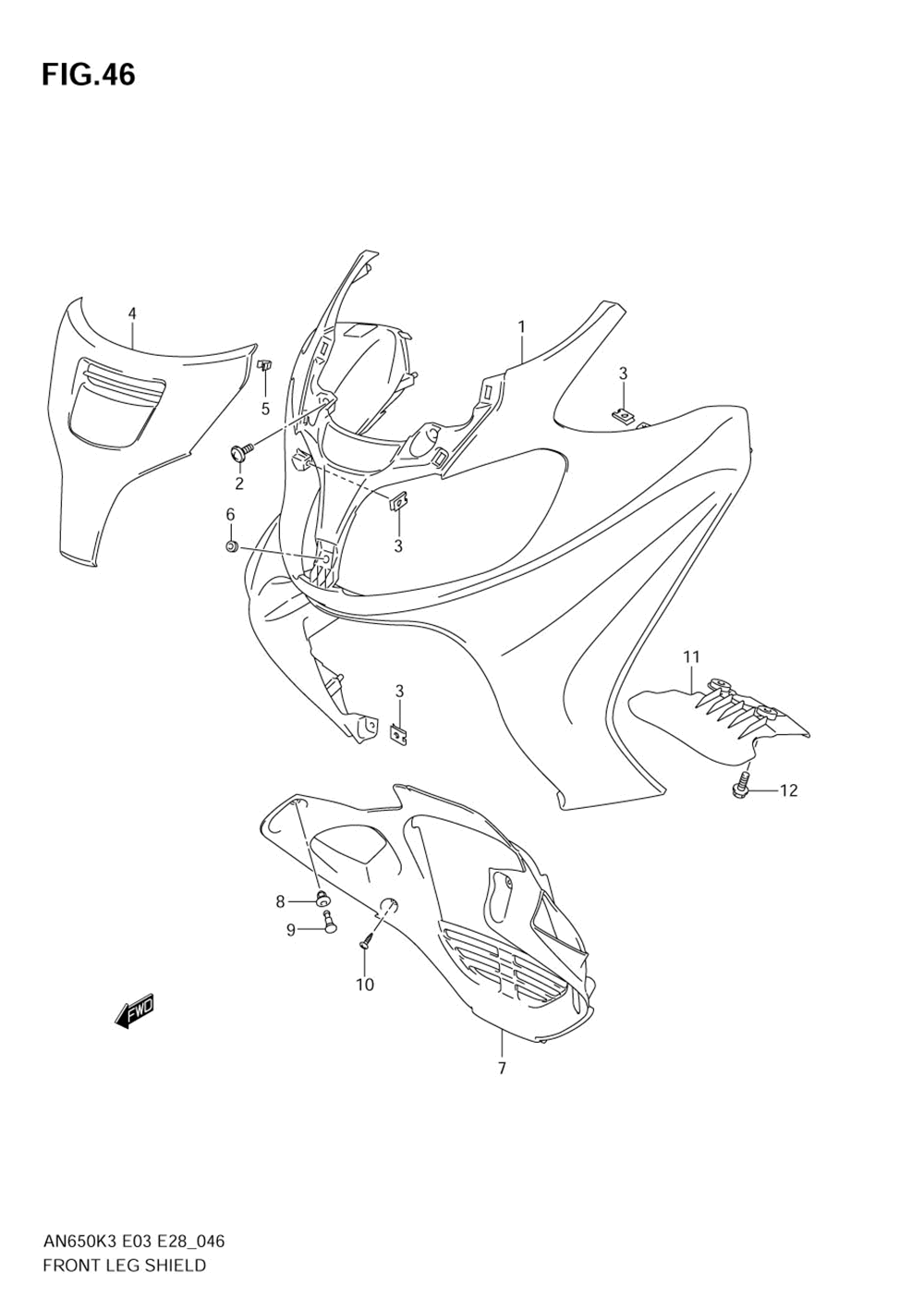

Front leg shield

Suzuki AN650

Front leg shield

#

oem код

название

цена

1-1

48111-10G00-YD8

Shield, Leg Front (silver)

Shield, Leg Front (silver)

1-2

48111-10G00-Y7H

Shield, Leg Front (blue)

Shield, Leg Front (blue)

1-5

48111-10G00-YAY

Shield, Leg Front (black)

Shield, Leg Front (black)

1-6

48111-10G00-YBA

Shield, Leg Front (blue)

Shield, Leg Front (blue)

2

Винт

Винт

3

Гайка

Гайка

4-1

48130-10G00-Y7L

Cover, Front Leg (black)

Cover, Front Leg (black)

4-2

48130-10G00-019

Cover, Front Leg (black)

Cover, Front Leg (black)

4-3

48130-10G00-YAU

Cover, Front Leg (gray)

Cover, Front Leg (gray)

4-4

48130-10G00-YD8

Cover, Front Leg (silver)

Cover, Front Leg (silver)

4-5

48130-10G00-YC3

Cover, Front Leg (white)

Cover, Front Leg (white)

4-6

48130-10G00-YBA

Cover, Front Leg (blue)

Cover, Front Leg (blue)

5

Зажим

Зажим

6

Подушка

Подушка

7

48137-10G01-Y0J

Shield, Leg Lower (gray)

Shield, Leg Lower (gray)

8

Уплотнитель

Уплотнитель

9

Плунжер

Плунжер

10

Винт

Винт

11

Cover, Lower Bracket

Cover, Lower Bracket

12

Болт

Болт
