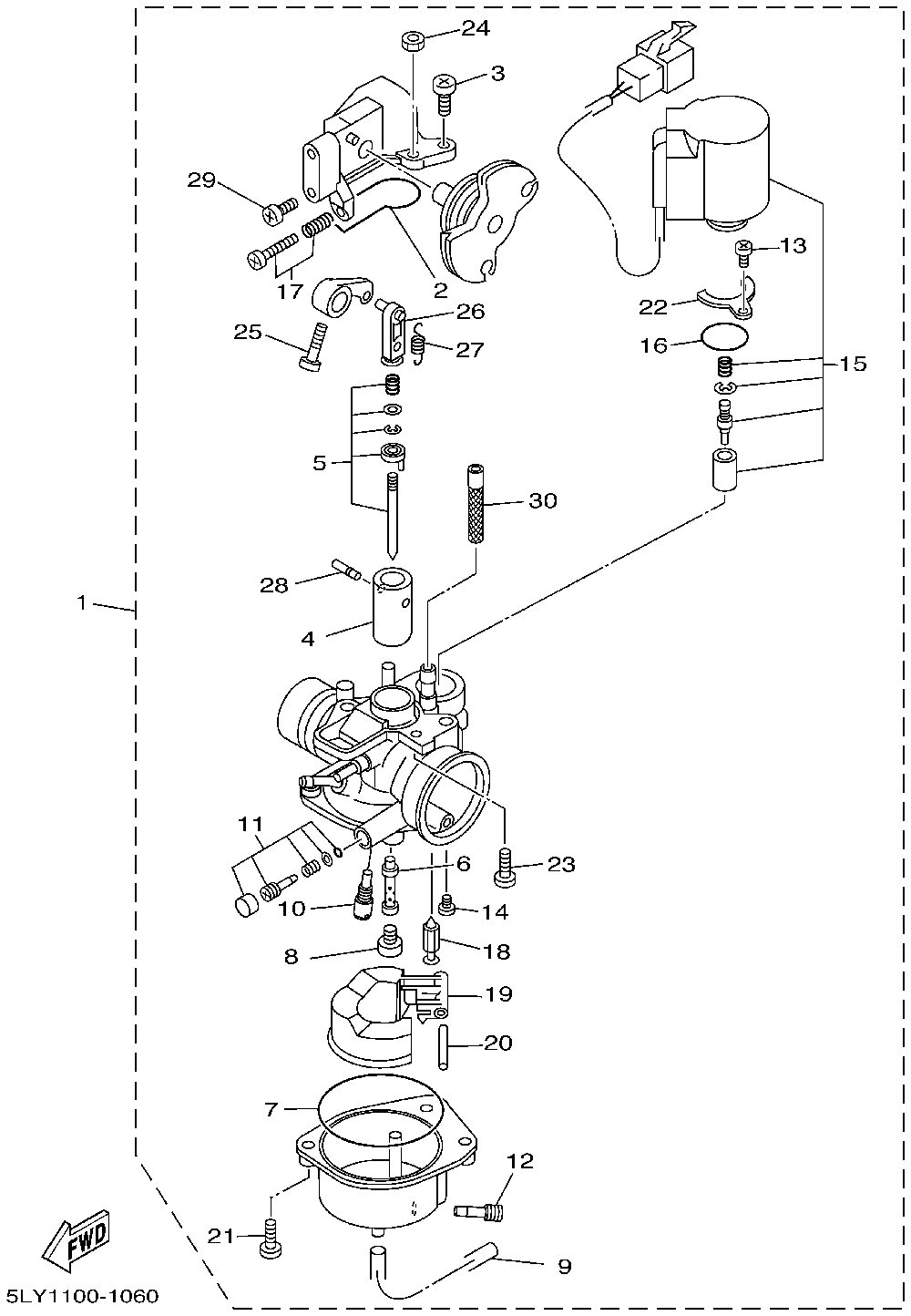

Карбюратор

Yamaha Vino

Карбюратор

#

oem код

название

цена

1

5LY-14301-02-00

Carburetor Assy 1 (5ly1)

Carburetor Assy 1 (5ly1)

2

4LV-14561-00-00

O-ring (5ly1)

O-ring (5ly1)

3

Screw, Pan Head (5ly1)

Screw, Pan Head (5ly1)

4

4LV-14312-25-00

Valve, Throttle 1 (5ly1)

Valve, Throttle 1 (5ly1)

5

5BM-1490J-00-00

Needle Set (5ly1)

Needle Set (5ly1)

6

3YK-14341-00-00

Nozzle, Main (5ly1)

Nozzle, Main (5ly1)

7

4JP-14384-01-00

Gasket, Float Chambe (5ly1)

Gasket, Float Chambe (5ly1)

8

14T-14343-32-00

Jet, Main (# 64) (5ly1)

Jet, Main (# 64) (5ly1)

9

3KJ-14349-01-00

Pipe (5ly1)

Pipe (5ly1)

10

5BM-14353-23-00

Jet, Pilot (# 46) (5ly1)

Jet, Pilot (# 46) (5ly1)

11

4JP-14104-00-00

Air Screw Set (5ly1)

Air Screw Set (5ly1)

12

14T-14104-00-00

Air Screw Set (5ly1)

Air Screw Set (5ly1)

13

Screw, Pan Head (5ly1)

Screw, Pan Head (5ly1)

14

Screw, Pan Head (5ly1)

Screw, Pan Head (5ly1)

15

5BM-1410A-02-00

Starter Set (5ly1)

Starter Set (5ly1)

16

4KL-14397-00-00

O-ring (5ly1)

O-ring (5ly1)

17

4LV-14103-00-00

Throttle Screw Set (5ly1)

Throttle Screw Set (5ly1)

18

2JA-14392-00-00

Valve, Needle (5ly1)

Valve, Needle (5ly1)

19

1HV-14385-01-00

Float (5ly1)

Float (5ly1)

20

367-14386-00-00

Pin, Float (5ly1)

Pin, Float (5ly1)

21

Screw, Pan Head (5ly1)

Screw, Pan Head (5ly1)

22

4JP-14243-01-00

Plate (5ly1)

Plate (5ly1)

23

4LV-14429-00-00

Screw (5ly1)

Screw (5ly1)

24

Nut (5ly1)

Nut (5ly1)

25

Screw, Pan Head (5ly1)

Screw, Pan Head (5ly1)

26

4LV-14274-00-00

Connector (5ly1)

Connector (5ly1)

27

4LV-14286-00-00

Spring (5ly1)

Spring (5ly1)

28

4LV-14434-00-00

Shaft (5ly1)

Shaft (5ly1)

30

4SE-1445E-00-00

Filter 1 (5ly1)

Filter 1 (5ly1)
