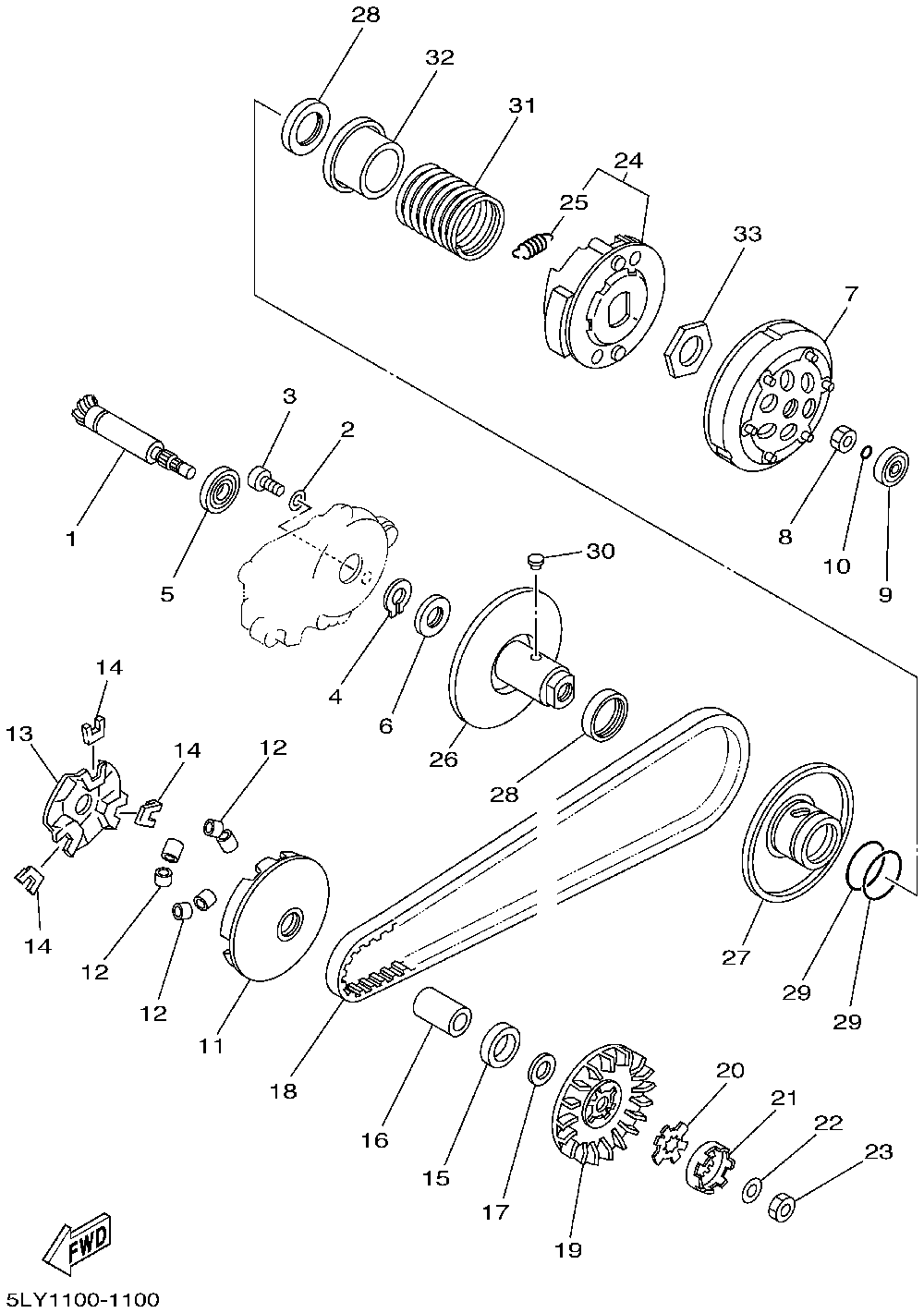

Сцепление

Yamaha Vino

Сцепление

#

oem код

название

цена

1

3KJ-16111-00-00

Gear, Pri Drive (5ly1)

Gear, Pri Drive (5ly1)

2

Washer, Plate (5ly1)

Washer, Plate (5ly1)

3

Screw, Pan Head (5ly1)

Screw, Pan Head (5ly1)

4

Circlip (5ly1)

Circlip (5ly1)

5

Bearing (5ly1)

Bearing (5ly1)

6

Oil Seal, Sd-type (5ly1)

Oil Seal, Sd-type (5ly1)

7

5BM-16611-00-00

Clutch Housing Comp. (5ly1)

Clutch Housing Comp. (5ly1)

8

Nut, Hexagon (5ly1)

Nut, Hexagon (5ly1)

9

Bearing (5ly1)

Bearing (5ly1)

10

O-ring (5ly1)

O-ring (5ly1)

11

4JP-17620-00-00

Primary Sliding Shea (5ly1)

Primary Sliding Shea (5ly1)

12

4JP-17632-00-00

Weight (5ly1)

Weight (5ly1)

13

3AA-17623-00-00

Cam (5ly1)

Cam (5ly1)

14

1NT-17653-00-00

Slider (5ly1)

Slider (5ly1)

15

5LY-17645-00-00

Collar (5ly1)

Collar (5ly1)

16

Collar(3kj) (5ly1)

Collar(3kj) (5ly1)

17

Washer, Plate(3yj) (5ly1)

Washer, Plate(3yj) (5ly1)

18

4JP-17641-00-00

V-belt (5ly1)

V-belt (5ly1)

19

3AA-17611-01-00

Sheve, Pri Fxd (5ly1)

Sheve, Pri Fxd (5ly1)

20

Washer, Claw (5ly1)

Washer, Claw (5ly1)

21

3KJ-15657-00-00

Clutch, One (5ly1)

Clutch, One (5ly1)

22

Washer, Conical Spr (5ly1)

Washer, Conical Spr (5ly1)

23

Nut, Hexagon (5ly1)

Nut, Hexagon (5ly1)

24

2JA-16620-01-00

Clutch Carrier Assy (5ly1)

Clutch Carrier Assy (5ly1)

25

2JA-16626-00-00

Spring, Clutch Weigh (5ly1)

Spring, Clutch Weigh (5ly1)

26

3AA-17660-03-00

Secondary Fixed Sh (5ly1)

Secondary Fixed Sh (5ly1)

27

3AA-17670-01-00

Secondary Sliding (5ly1)

Secondary Sliding (5ly1)

28

Oil Seal (23y) (5ly1)

Oil Seal (23y) (5ly1)

29

O-ring (5ly1)

O-ring (5ly1)

30

24G-17664-00-00

Pin, Guide (5ly1)

Pin, Guide (5ly1)

31

Spring, Compression (5ly1)

Spring, Compression (5ly1)

32

3XG-17684-00-00

Seat, Sec Spring (5ly1)

Seat, Sec Spring (5ly1)

33

Nut, Spec'l Shape (5ly1)

Nut, Spec'l Shape (5ly1)

23

Nut (5ly1)

Nut (5ly1)
