Впускная система Оригинальные запчасти для скутеров Yamaha Vino (2001)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

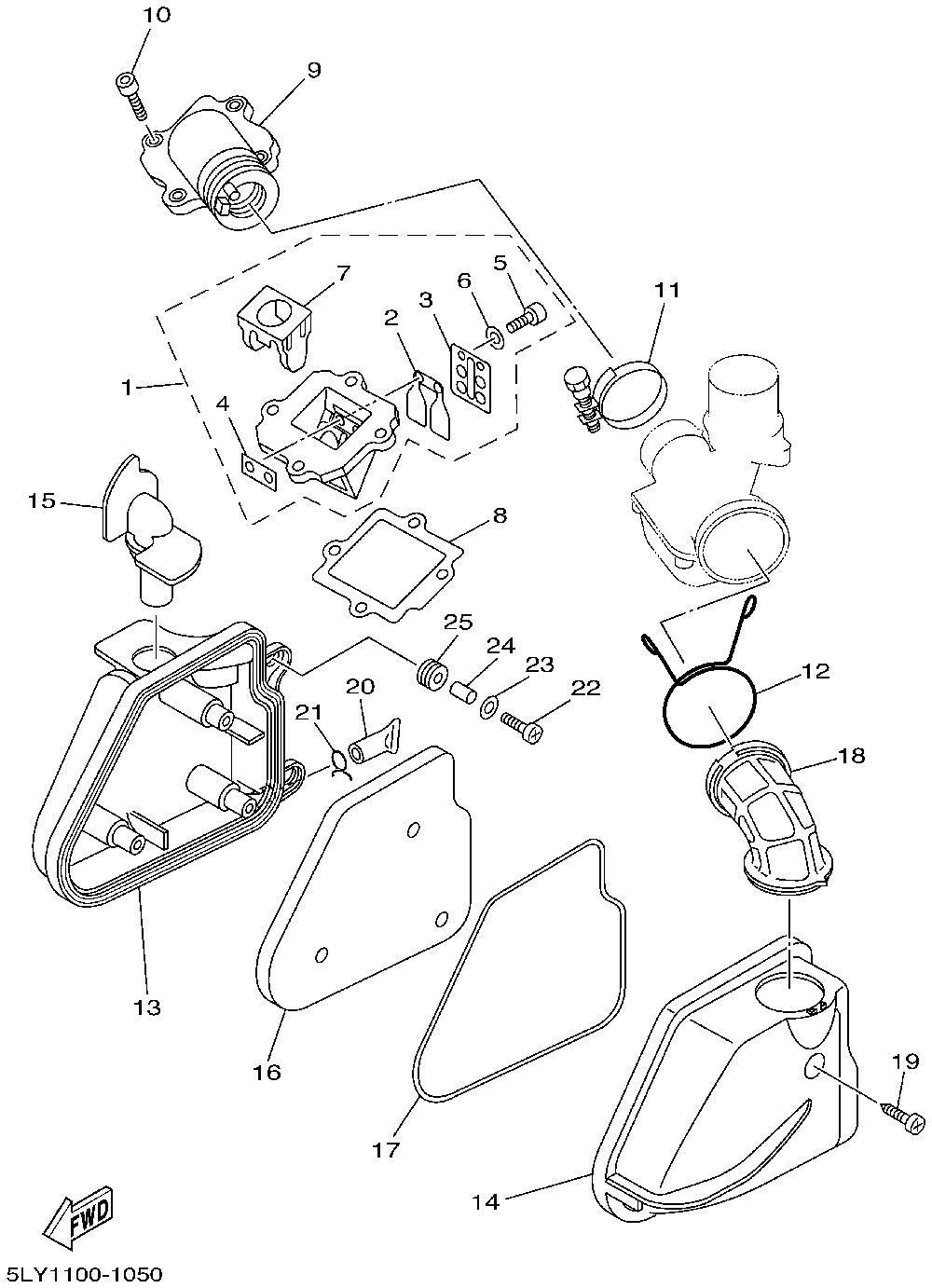

Впускная система

Yamaha Vino

Впускная система

#

oem код

название

цена

1

5BM-13610-00-00

Reed Valve Assy (5ly1)

Reed Valve Assy (5ly1)

2

5BM-13613-00-00

Reed, Valve (5ly1)

Reed, Valve (5ly1)

3

5BM-13616-00-00

Stopper, Reed Valve (5ly1)

Stopper, Reed Valve (5ly1)

4

5BM-13624-00-00

Plate, Reed Valve (5ly1)

Plate, Reed Valve (5ly1)

5

Screw, Pan (5ly1)

Screw, Pan (5ly1)

6

Washer(3sx) (5ly1)

Washer(3sx) (5ly1)

7

5BM-13625-00-00

Spacer, Reed Valve (5ly1)

Spacer, Reed Valve (5ly1)

8

5BM-13621-00-00

Gasket, Valve Seat (5ly1)

Gasket, Valve Seat (5ly1)

9

5BM-13555-11-00

Manifold, Intake (5ly1)

Manifold, Intake (5ly1)

10

Bolt (4fl) (5ly1)

Bolt (4fl) (5ly1)

11

Hose Clamp Assy (5ly1)

Hose Clamp Assy (5ly1)

12

Clip, Scissor (5ly1)

Clip, Scissor (5ly1)

13

5BM-14411-00-00

Case, Air Cleaner 1 (5ly1)

Case, Air Cleaner 1 (5ly1)

14

5BM-14412-00-00

Cap, Cleaner Case 1 (5ly1)

Cap, Cleaner Case 1 (5ly1)

15

5BM-14437-00-00

Duct (5ly1)

Duct (5ly1)

16

5BM-14451-00-00

Element, Air Cleaner (5ly1)

Element, Air Cleaner (5ly1)

17

51Y-14462-00-00

Seal (5ly1)

Seal (5ly1)

18

4JC-14453-01-00

Joint, Air Cleaner (5ly1)

Joint, Air Cleaner (5ly1)

19

Screw, Truss (5ly1)

Screw, Truss (5ly1)

20

34X-1443E-00-00

Pipe, Drain (5ly1)

Pipe, Drain (5ly1)

21

Clip (5ly1)

Clip (5ly1)

22

Screw, Pan Head (5ly1)

Screw, Pan Head (5ly1)

23

Washer, Plate (6ta) (5ly1)

Washer, Plate (6ta) (5ly1)

24

Collar (5ly1)

Collar (5ly1)

25

Grommet (5ly1)

Grommet (5ly1)
