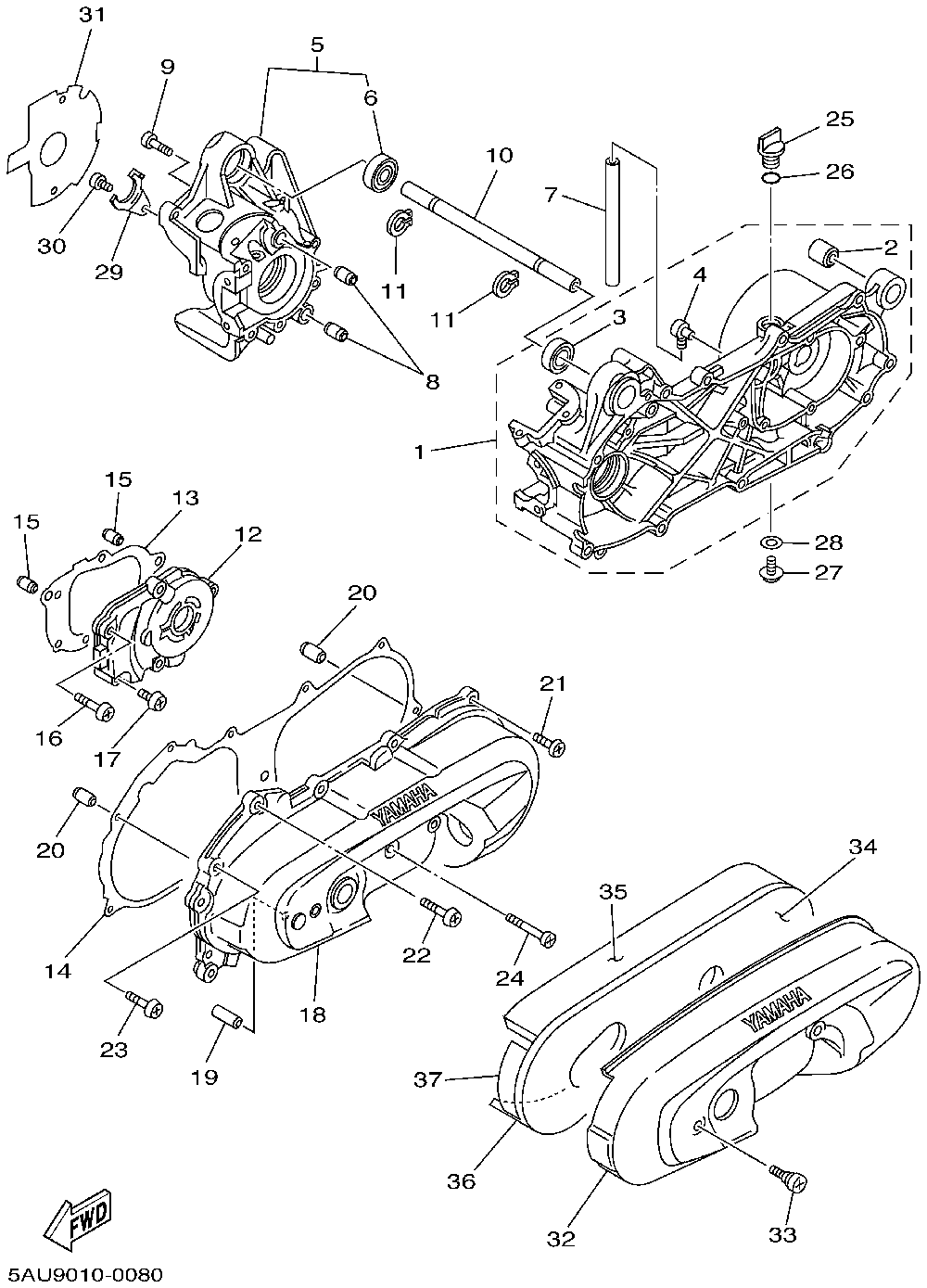

Картер

Yamaha Vino
Yamaha
#oem кодцена
1
5BM-15110-10-00
Crankcase Assy 1 (5ly1)
2
164-22216-00-00
Bush, Rr Shock Abs (5ly1)
3
93306-00316-00
Bearing (5ly1)
4
3YJ-15371-00-00
Breather (5ly1)
5
5BM-15120-01-00
Crankcase Assy 2 (5ly1)
7
91A21-07020-00
Tube, Flexible (3nv) (5ly1)
8
99510-12016-00
Pin, Dowel (5ly1)
9
98507-06035-00
Screw, Pan Head (5ly1)
10
3KJ-15317-00-00
Spacer, Eng Mount (5ly1)
11
99009-17400-00
Circlip (5ly1)
12
3KJ-15421-00-00
Cover, Crankcase R (5ly1)
13
4FB-15461-00-00
Gasket, Crcs Cvr 2 (5ly1)
14
5BM-15451-00-00
Gasket, Crankcase Co (5ly1)
15
99510-10114-00
Pin, Dowel (5ly1)
17
98517-06020-00
Screw, Pan Head (5ly1)
18
5AU-15411-00-00
Cover, Crankcase 1 (5ly1)
19
3KJ-15659-00-00
Shaft (5ly1)
21
98517-06025-00
Screw, Pan Head (5ly1)
22
97885-06025-00
Screw, Pan Head (5ly1)
24
98507-06065-00
Screw, Pan Head (5ly1)
25
4J2-15363-00-00
Plug, Oil (5ly1)
26
93210-14579-00
O-ring (5ly1)
27
95817-08016-00
Bolt, Flange (jn5) (5ly1)
28
90201-08087-00
Washer, Plate (5ly1)
29
1HV-15128-00-00
Holder (5ly1)
30
98517-06012-00
Screw, Pan (5ly1)
31
4FB-15462-00-00
Gasket, Crcs Cvr 3 (5ly1)
32
3YJ-15431-00-00
Cover, Crankcase 3 (5ly1)
33
3KJ-15481-00-00
Bolt 1 (5ly1)
34
3KJ-15316-00-00
Damper, Eng Mount 1 (5ly1)
35
3YJ-15326-00-00
Damper, Eng Mount 2 (5ly1)
36
3KJ-15335-00-00
Damper 3 (5ly1)
37
3KJ-15337-00-00
Collar (5ly1)
25
4J2-15363-10-00
Plug, Oil (5ly1)
