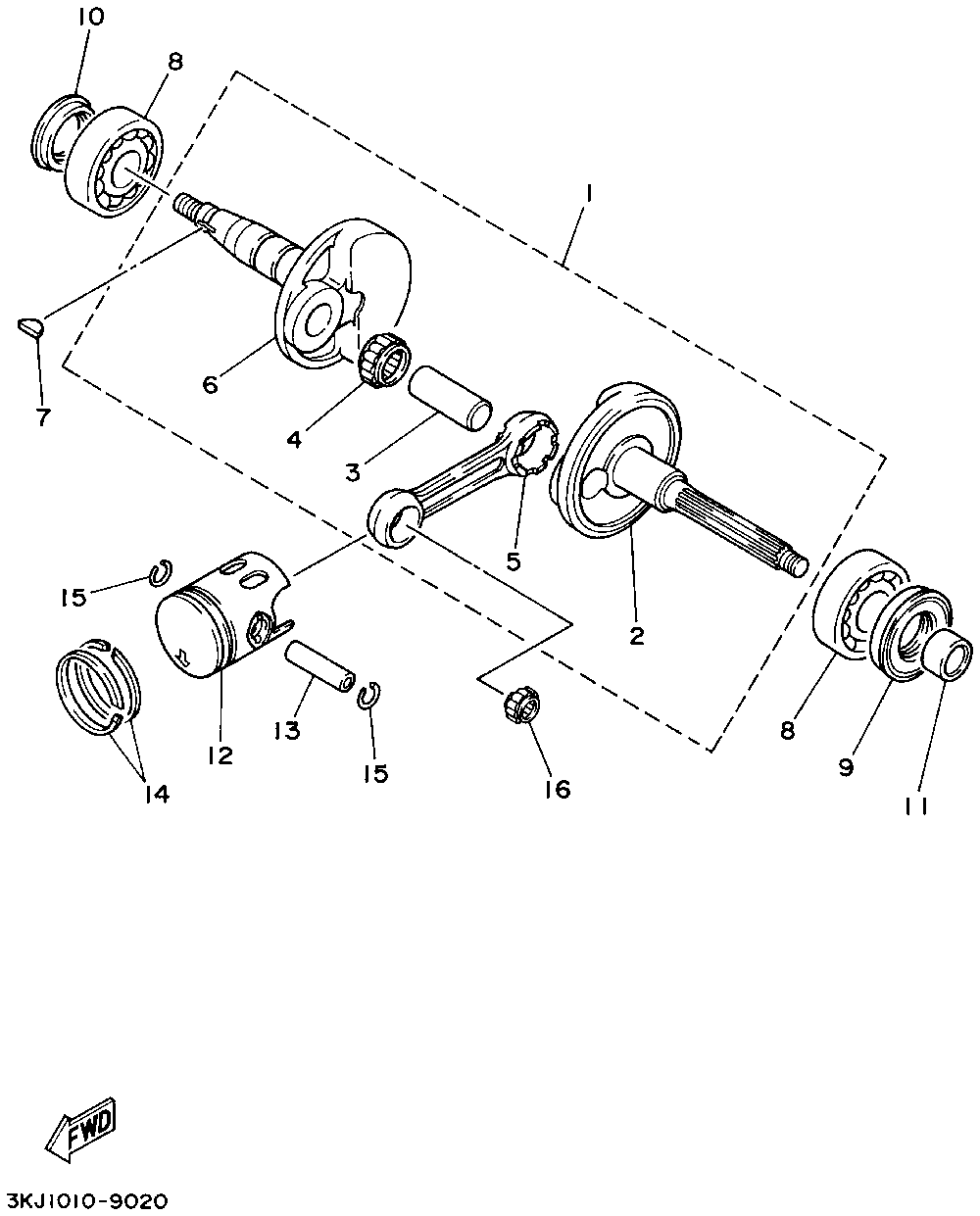

Коленчатый вал и Поршень

Yamaha Vino

Коленчатый вал и Поршень

#

oem код

название

цена

1

5SU-11400-00-00

Crankshaft Assy (5ly1)

Crankshaft Assy (5ly1)

2

3KJ-11412-01-00

Crank 1 (5ly1)

Crank 1 (5ly1)

3

1YU-11681-00-00

Pin, Crank 1 (5ly1)

Pin, Crank 1 (5ly1)

4

Bearing, Cyl. (5ly1)

Bearing, Cyl. (5ly1)

5

2E9-11651-00-00

Rod, Connecting (5ly1)

Rod, Connecting (5ly1)

6

3KJ-11422-01-00

Crank 2 (5ly1)

Crank 2 (5ly1)

7

Key, Woodruff (5ly1)

Key, Woodruff (5ly1)

8

Bearing (5ly1)

Bearing (5ly1)

9

Oil Seal, Sd-type (5ly1)

Oil Seal, Sd-type (5ly1)

10

Oil Seal, S-type (5ly1)

Oil Seal, S-type (5ly1)

11

Collar (5ly1)

Collar (5ly1)

12

3YJ-11631-11-A0

Piston (std) (5ly1)

Piston (std) (5ly1)

13

27V-11633-00-00

Pin, Piston (5ly1)

Pin, Piston (5ly1)

14

3YJ-11610-00-00

Piston Ring Set (s (5ly1)

Piston Ring Set (s (5ly1)

15

Circlip, Inner (5ly1)

Circlip, Inner (5ly1)

16

Bearing, Piston Pn (5ly1)

Bearing, Piston Pn (5ly1)
