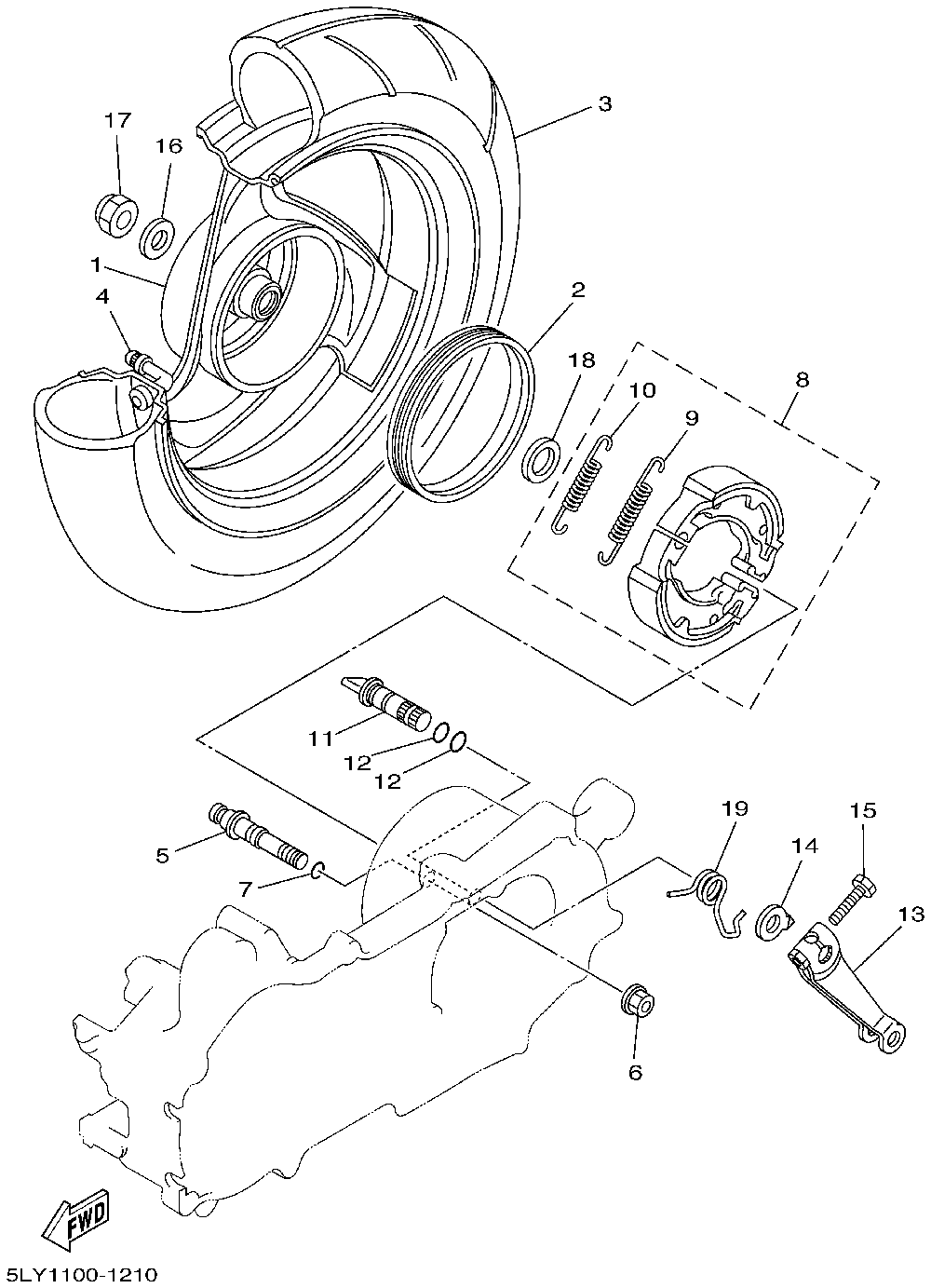

Заднее колесо

Yamaha Vino

Заднее колесо

#

oem код

название

цена

1

5KN-25390-01-35

Rear Wheel Comp. Sl(5ly1)

Rear Wheel Comp. Sl(5ly1)

2

3KJ-25336-00-00

Ring 2 (5ly1)

Ring 2 (5ly1)

3

Tire (80/90-10 35j C Ur Inoue(5ly1)

Tire (80/90-10 35j C Ur Inoue(5ly1)

4

Valve, Rim (5ly1)

Valve, Rim (5ly1)

5

3KJ-25326-00-00

Pin, Pivot (5ly1)

Pin, Pivot (5ly1)

6

Nut, Flange (jn5) (5ly1)

Nut, Flange (jn5) (5ly1)

7

O-ring (5ly1)

O-ring (5ly1)

8

5GD-W253E-11-00

Brake Shoe Kit (5ly1)

Brake Shoe Kit (5ly1)

9

Spring, Tension (5ly1)

Spring, Tension (5ly1)

10

Spring, Tension (5ly1)

Spring, Tension (5ly1)

11

5GD-25351-00-00

Camshaft (5ly1)

Camshaft (5ly1)

12

O-ring (5ly1)

O-ring (5ly1)

13

5GD-25355-00-00

Lever, Camshaft (5ly1)

Lever, Camshaft (5ly1)

14

5AU-2513A-00-00

Plate, Indicator (5ly1)

Plate, Indicator (5ly1)

15

Bolt (5ly1)

Bolt (5ly1)

16

Washer, Plate (5ly1)

Washer, Plate (5ly1)

17

Nut, Self-locking (5ly1)

Nut, Self-locking (5ly1)

18

Washer, Plate (5ly1)

Washer, Plate (5ly1)

19

5GD-25357-00-00

Spring, Lever Return (5ly1)

Spring, Lever Return (5ly1)
