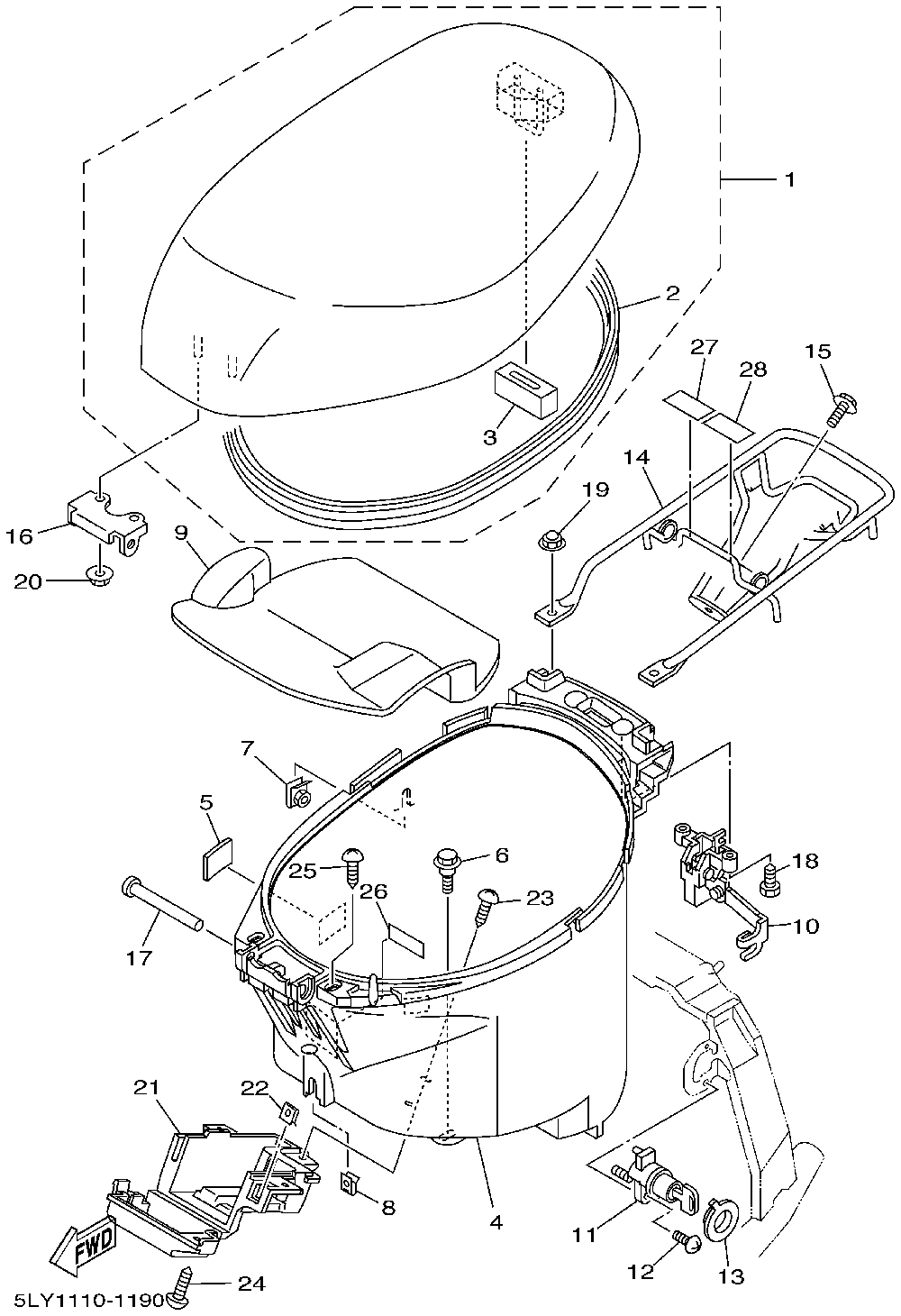

Сидение Оригинальные запчасти для скутеров Yamaha Vino (2001)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Сидение

Yamaha Vino

Сидение

#

oem код

название

цена

1

5AU-24710-10-00

Single Seat Assy (5ly1)

Single Seat Assy (5ly1)

2

4JP-2475M-00-00

Seal (5ly1)

Seal (5ly1)

3

5AU-24741-00-00

Pad, Seat (5ly1)

Pad, Seat (5ly1)

4

4JP-2473R-02-00

Box 1 (5ly1)

Box 1 (5ly1)

5

1YW-21638-00-00

Damper 1 (5ly1)

Damper 1 (5ly1)

6

Bolt (5ly1)

Bolt (5ly1)

7

25G-21535-00-00

Nut 1 (5ly1)

Nut 1 (5ly1)

8

3VP-21535-00-00

Nut 1 (5ly1)

Nut 1 (5ly1)

9

4JP-24747-00-00

Damper, Seat (5ly1)

Damper, Seat (5ly1)

10

5AU-24780-00-00

Seat Lock Assy (5ly1)

Seat Lock Assy (5ly1)

11

5AU-W2470-00-00

Seat Lock Assy (5ly1)

Seat Lock Assy (5ly1)

12

Screw, Pan (5ly1)

Screw, Pan (5ly1)

13

5AU-2482H-01-00

Cap (5ly1)

Cap (5ly1)

14

5LY-24842-01-00

Carrier, Rear (5ly1)

Carrier, Rear (5ly1)

15

Bolt, Small Flange (5ly1)

Bolt, Small Flange (5ly1)

16

4JP-24726-11-00

Hinge, Seat (5ly1)

Hinge, Seat (5ly1)

17

Pin(4cu) (5ly1)

Pin(4cu) (5ly1)

19

Nut, Crown (5ly1)

Nut, Crown (5ly1)

20

Nut, Flange (4mv) (5ly1)

Nut, Flange (4mv) (5ly1)

21

4JP-2177G-04-00

Box, Battery (5ly1)

Box, Battery (5ly1)

22

Nut, Spring (5ly1)

Nut, Spring (5ly1)

23

Screw, Truss (5ly1)

Screw, Truss (5ly1)

24

Screw, Truss (5ly1)

Screw, Truss (5ly1)

25

Screw, Truss (5ly1)

Screw, Truss (5ly1)

26

3LD-24877-A0-00

Label, Caution (5ly1)

Label, Caution (5ly1)

27

3TB-24877-A0-00

Label, Caution (5ly1)

Label, Caution (5ly1)

28

3MX-24875-A0-00

Label 1 (5ly1)

Label 1 (5ly1)
