БОКОВАЯ КРЫШКА

Yamaha Vino

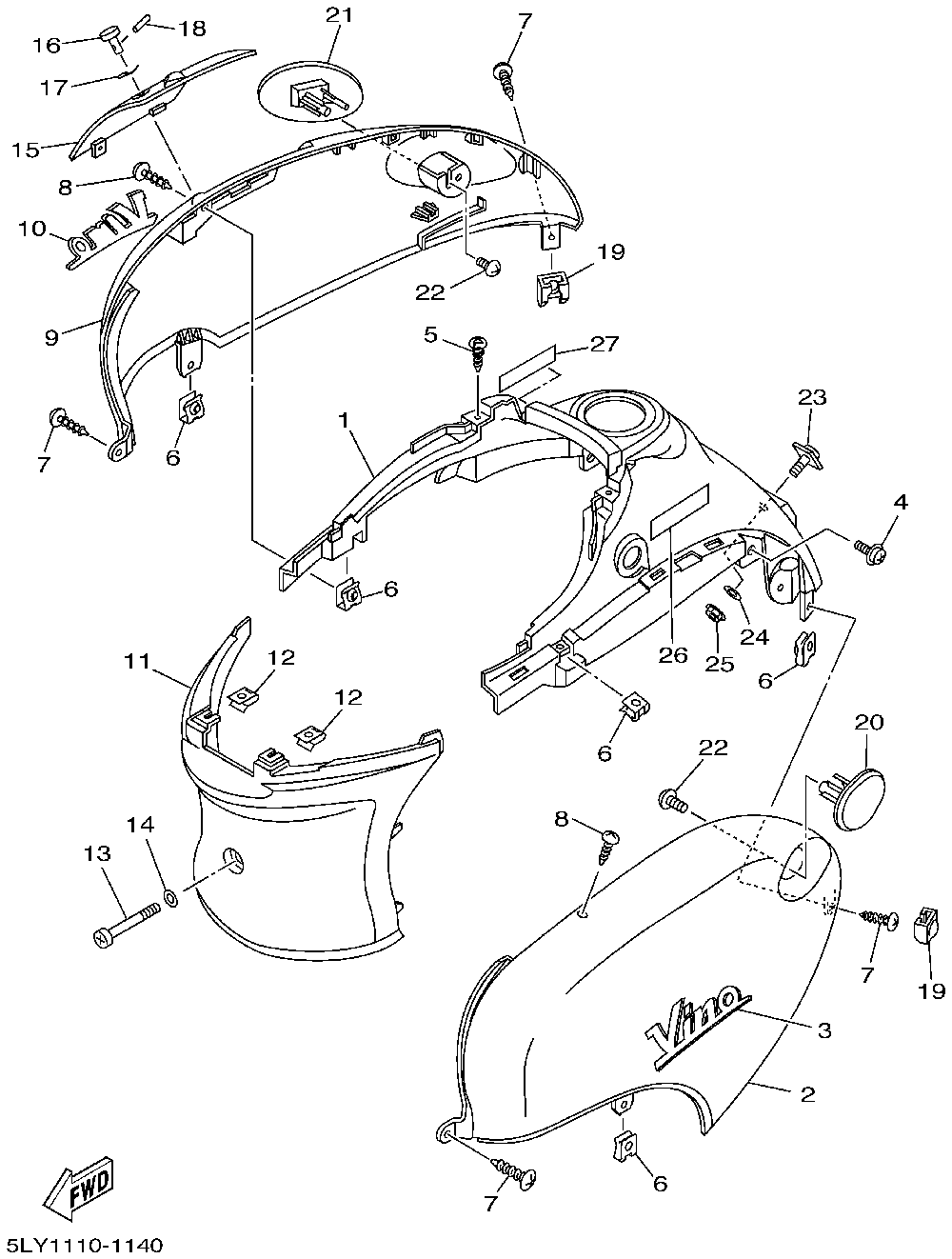

БОКОВАЯ КРЫШКА

#

oem код

название

цена

1

5LY-21711-01-00

Cover, Side 1 (5ly1)

Cover, Side 1 (5ly1)

2

5AU-21721-00-PD

Cover, Side 2 Ur Bl2(5ly1)

Cover, Side 2 Ur Bl2(5ly1)

2

5AU-21721-00-P0

Cover, Side 2 Ur Dprc3(5ly1)

Cover, Side 2 Ur Dprc3(5ly1)

3

5AU-21781-00-00

Emblem 1 (5ly1)

Emblem 1 (5ly1)

4

Screw, With Washer (5ly1)

Screw, With Washer (5ly1)

5

Screw, Tapping(3vp) (5ly1)

Screw, Tapping(3vp) (5ly1)

6

Nut, Spring (5ly1)

Nut, Spring (5ly1)

7

Screw, Truss (5ly1)

Screw, Truss (5ly1)

8

Screw, Truss (5ly1)

Screw, Truss (5ly1)

9

5AU-21731-02-PD

Cover, Side 3 Ur Bl2(5ly1)

Cover, Side 3 Ur Bl2(5ly1)

9

5AU-21731-02-P1

Cover, Side 3 Ur Dprc3(5ly1)

Cover, Side 3 Ur Dprc3(5ly1)

10

5AU-21782-00-00

Emblem 2 (5ly1)

Emblem 2 (5ly1)

11

5AU-21741-00-00

Cover, Side 4 (5ly1)

Cover, Side 4 (5ly1)

13

Screw, Pan Head (5ly1)

Screw, Pan Head (5ly1)

14

Washer (5ly1)

Washer (5ly1)

15

5AU-21716-00-PD

Lid, Side Cover Ur Bl2(5ly1)

Lid, Side Cover Ur Bl2(5ly1)

15

5AU-21716-00-P0

Lid, Side Cover Ur Dprc3(5ly1)

Lid, Side Cover Ur Dprc3(5ly1)

16

Pin, Spec'l Shape (5ly1)

Pin, Spec'l Shape (5ly1)

17

Washer, Wave (5ly1)

Washer, Wave (5ly1)

18

Pin, Spring (5ly1)

Pin, Spring (5ly1)

19

5AU-21875-00-00

Cap (5ly1)

Cap (5ly1)

20

5LY-2172F-00-4B

Panel 2 Ur Bl2(5ly1)

Panel 2 Ur Bl2(5ly1)

20

5LY-2172F-00-P0

Panel 2 Ur Dprc3(5ly1)

Panel 2 Ur Dprc3(5ly1)

21

5LY-2172G-00-P6

Panel 3 Ur Bl2(5ly1)

Panel 3 Ur Bl2(5ly1)

21

5LY-2172G-00-P0

Panel 3 Ur Dprc3(5ly1)

Panel 3 Ur Dprc3(5ly1)

23

5LY-21712-00-00

Bolt, Side Cover (5ly1)

Bolt, Side Cover (5ly1)

24

Washer (5ly1)

Washer (5ly1)

25

Nut, U Flange (5ly1)

Nut, U Flange (5ly1)

26

3JJ-28446-A1-00

Label, Caution (5ly1)

Label, Caution (5ly1)

27

5LY-21668-A0-00

Label, Tire (5ly1)

Label, Tire (5ly1)
