Рама Оригинальные запчасти для скутеров Yamaha Vino (2001)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

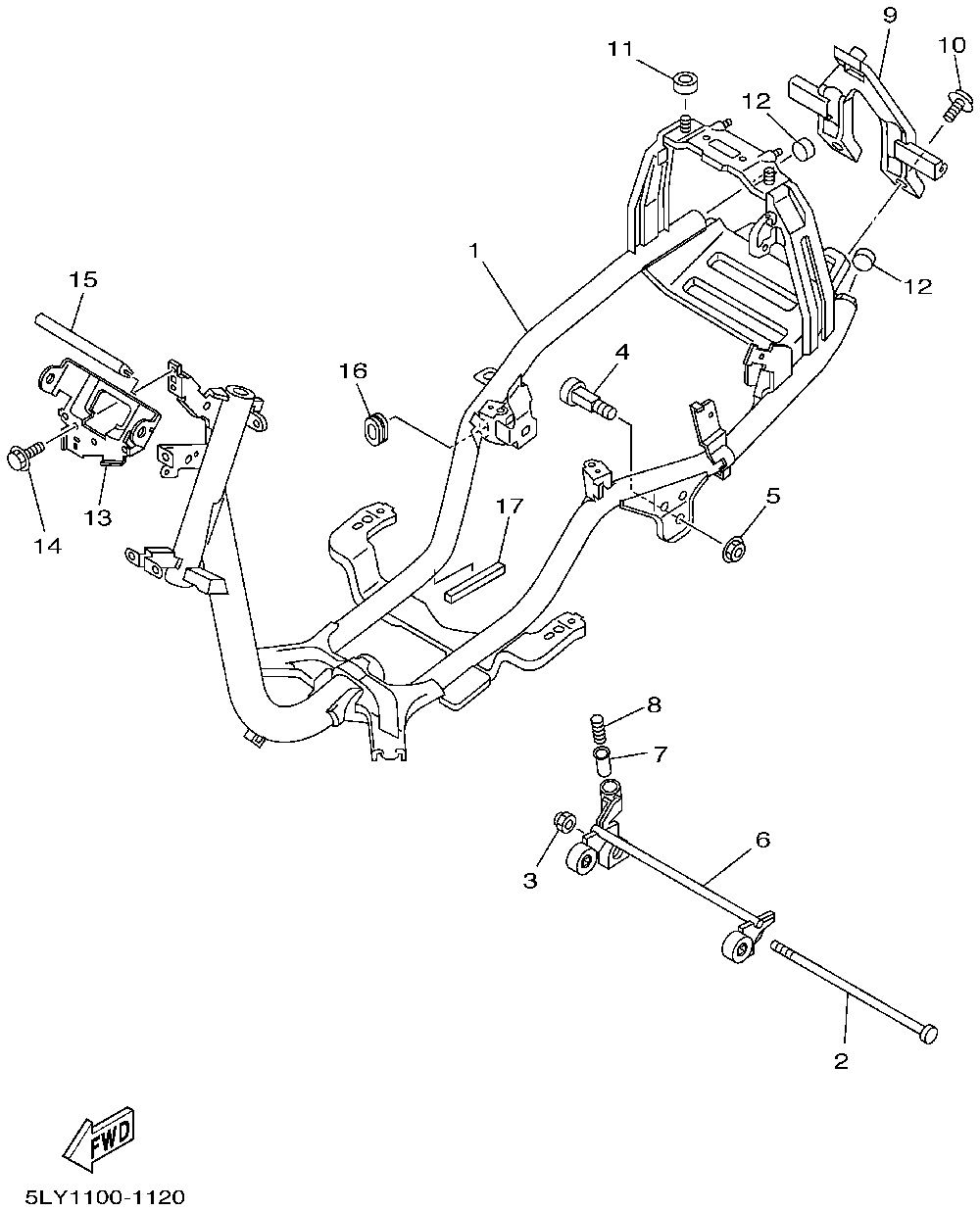

Рама

Yamaha Vino

Рама

#

oem код

название

цена

1

5LY-21110-02-00

Frame Comp. (5ly1)

Frame Comp. (5ly1)

2

3KJ-21481-00-00

Bolt, Eng Mntng 1 (5ly1)

Bolt, Eng Mntng 1 (5ly1)

3

Nut, U Flange (5ly1)

Nut, U Flange (5ly1)

4

2T4-21481-01-00

Bolt, Eng Mntng 1 (5ly1)

Bolt, Eng Mntng 1 (5ly1)

5

Nut, Self-locking (5ly1)

Nut, Self-locking (5ly1)

6

4JP-21410-11-00

Engine Bracket Comp. (5ly1)

Engine Bracket Comp. (5ly1)

7

2T4-2139X-00-00

Damper (5ly1)

Damper (5ly1)

8

Spring, Compression (5ly1)

Spring, Compression (5ly1)

9

5AU-21232-00-00

Reinforcement, Tail (5ly1)

Reinforcement, Tail (5ly1)

10

Bolt, Flange (5ly1)

Bolt, Flange (5ly1)

11

Washer, Plate (5ly1)

Washer, Plate (5ly1)

12

3YJ-24481-00-00

Plug (5ly1)

Plug (5ly1)

13

5LY-2134Y-00-00

Stay, Horn (5ly1)

Stay, Horn (5ly1)

14

Bolt, Flange (4my) (5ly1)

Bolt, Flange (4my) (5ly1)

15

5LY-21268-00-00

Seal (5ly1)

Seal (5ly1)

16

Grommet (5ly1)

Grommet (5ly1)

17

4SV-83526-00-00

Damper 2 (5ly1)

Damper 2 (5ly1)
