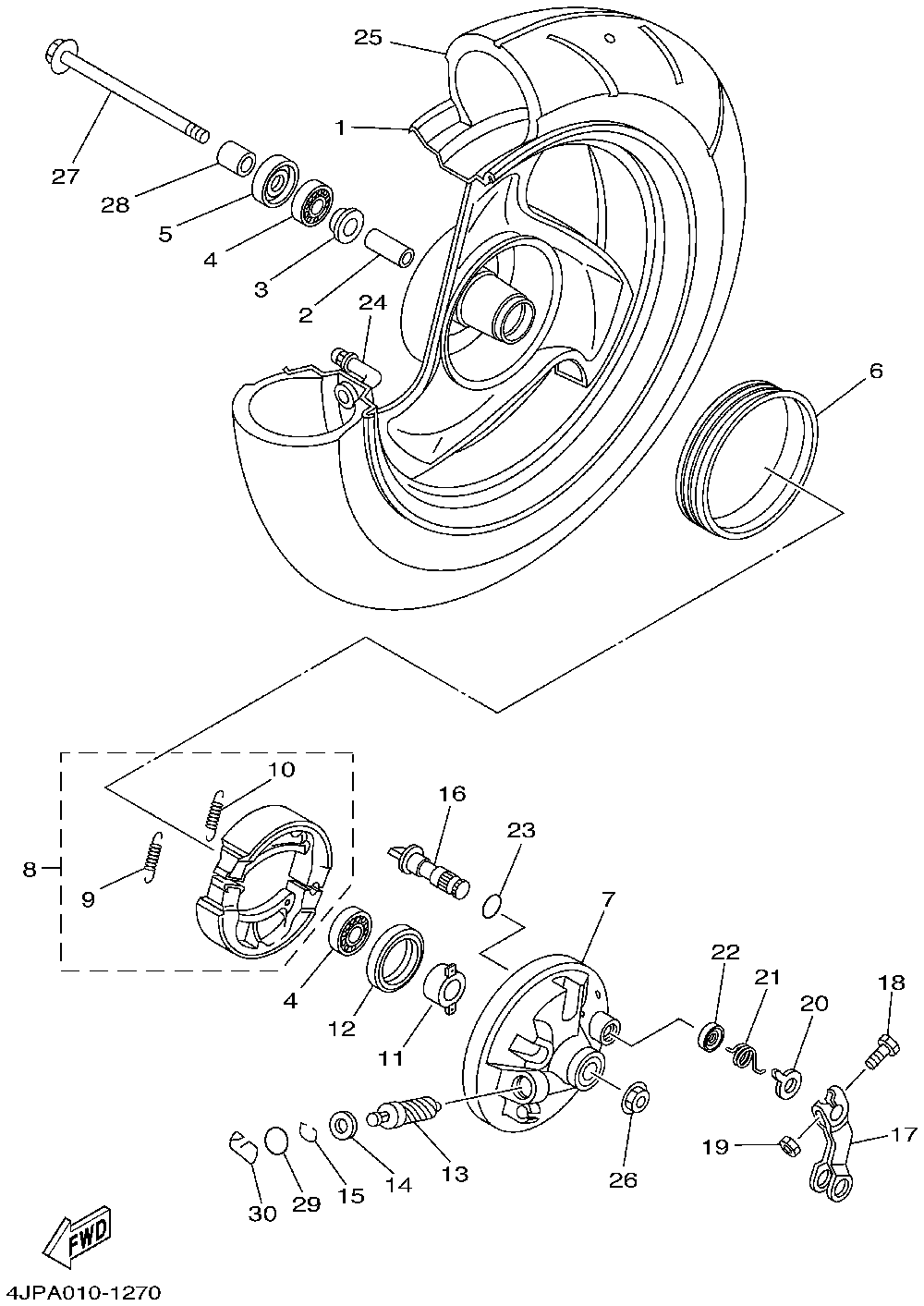

Переднее колесо

Yamaha Vino

Переднее колесо

#

oem код

название

цена

1

5AU-25180-01-35

Wheel Comp. Sl(5ly1)

Wheel Comp. Sl(5ly1)

2

Spacer (5ly1)

Spacer (5ly1)

3

25K-25116-00-00

Flange, Spacer 2 (5ly1)

Flange, Spacer 2 (5ly1)

4

Bearing Ntn(5ly1)

Bearing Ntn(5ly1)

5

Oil Seal, Dd-type (5ly1)

Oil Seal, Dd-type (5ly1)

6

3KJ-25336-00-00

Ring 2 (5ly1)

Ring 2 (5ly1)

7

5AU-25121-10-35

Plate, Brake Shoe Sl(5ly1)

Plate, Brake Shoe Sl(5ly1)

8

5GD-W253A-00-00

Brake Shoe Kit (5ly1)

Brake Shoe Kit (5ly1)

9

Spring, Tension (5ly1)

Spring, Tension (5ly1)

10

Spring, Tension (5ly1)

Spring, Tension (5ly1)

11

5AU-25135-00-00

Gear, Drive (5ly1)

Gear, Drive (5ly1)

12

Oil Seal (35r) (5ly1)

Oil Seal (35r) (5ly1)

13

14T-25138-00-00

Gear, Meter (5ly1)

Gear, Meter (5ly1)

14

Washer, Plate (5ly1)

Washer, Plate (5ly1)

15

2T4-25137-00-00

Ring, Stop (5ly1)

Ring, Stop (5ly1)

16

5DV-25351-00-00

Camshaft (5ly1)

Camshaft (5ly1)

17

5AU-25155-00-00

Lever, Camshaft 1 (5ly1)

Lever, Camshaft 1 (5ly1)

18

Bolt (5ly1)

Bolt (5ly1)

19

Nut (6ta) (5ly1)

Nut (6ta) (5ly1)

20

5AU-2513A-00-00

Plate, Indicator (5ly1)

Plate, Indicator (5ly1)

21

Spring, Torsion (5ly1)

Spring, Torsion (5ly1)

22

Oil Seal, Sdo-type (5ly1)

Oil Seal, Sdo-type (5ly1)

23

O-ring (5ly1)

O-ring (5ly1)

24

Valve, Rim (5ly1)

Valve, Rim (5ly1)

25

Tire (80/90-10 35j C Ur Inoue(5ly1)

Tire (80/90-10 35j C Ur Inoue(5ly1)

26

Nut, Self-locking (5ly1)

Nut, Self-locking (5ly1)

27

1YT-25181-00-00

Axle, Wheel (5ly1)

Axle, Wheel (5ly1)

28

Spacer (5ly1)

Spacer (5ly1)

29

O-ring (5ly1)

O-ring (5ly1)

30

2E9-25137-01-00

Ring, Stop (5ly1)

Ring, Stop (5ly1)
