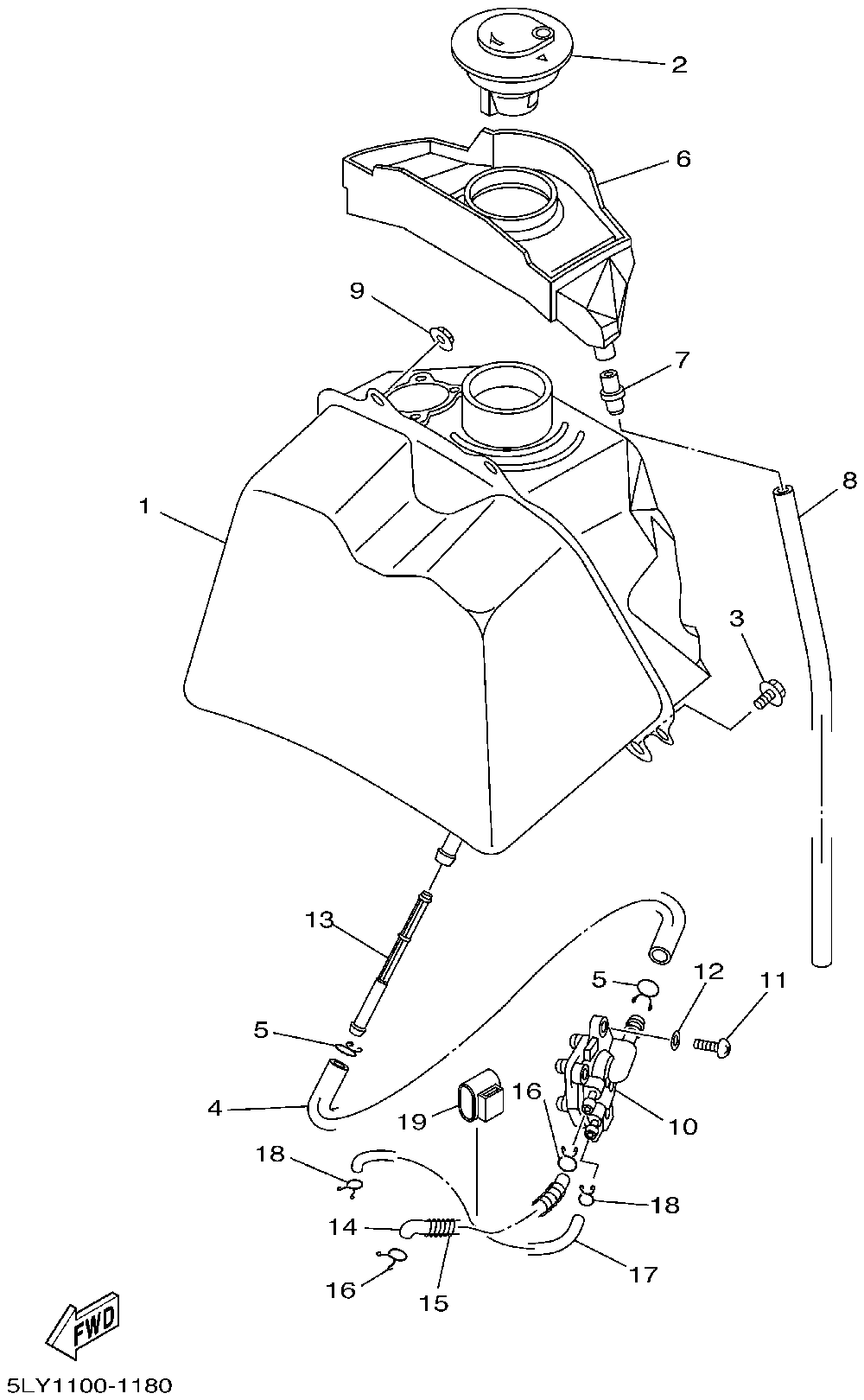

ТОПЛИВНЫЙ БАК

Yamaha Vino

ТОПЛИВНЫЙ БАК

#

oem код

название

цена

1

4JP-24110-13-00

Fuel Tank Comp. (5ly1)

Fuel Tank Comp. (5ly1)

2

5LY-24602-00-00

Cap Assy (5ly1)

Cap Assy (5ly1)

3

Bolt, Flange (5ly1)

Bolt, Flange (5ly1)

4

4JP-24312-10-00

Pipe 2 (5ly1)

Pipe 2 (5ly1)

5

Clip, Scissor (5ly1)

Clip, Scissor (5ly1)

6

5AU-2414A-01-00

Cover, Filler (5ly1)

Cover, Filler (5ly1)

7

4JP-21753-00-00

Boss, Connector (5ly1)

Boss, Connector (5ly1)

8

Hose (5ly1)

Hose (5ly1)

9

Nut, Flange (4mv) (5ly1)

Nut, Flange (4mv) (5ly1)

10

5BM-24500-00-00

Fuel Cock Assy 1 (5ly1)

Fuel Cock Assy 1 (5ly1)

11

Screw, Pan (5ly1)

Screw, Pan (5ly1)

12

Washer, Plate (6ta) (5ly1)

Washer, Plate (6ta) (5ly1)

13

5BM-24514-00-00

Net, Filter 1 (5ly1)

Net, Filter 1 (5ly1)

14

3YR-24312-00-00

Pipe, Fuel 1 (5ly1)

Pipe, Fuel 1 (5ly1)

15

Spring, Compression (5ly1)

Spring, Compression (5ly1)

16

Clip, Scissor (5ly1)

Clip, Scissor (5ly1)

17

Hose (l265) (5ly1)

Hose (l265) (5ly1)

18

Clip, Scissor (5ly1)

Clip, Scissor (5ly1)

19

5BM-2419A-00-00

Holder (5ly1)

Holder (5ly1)
