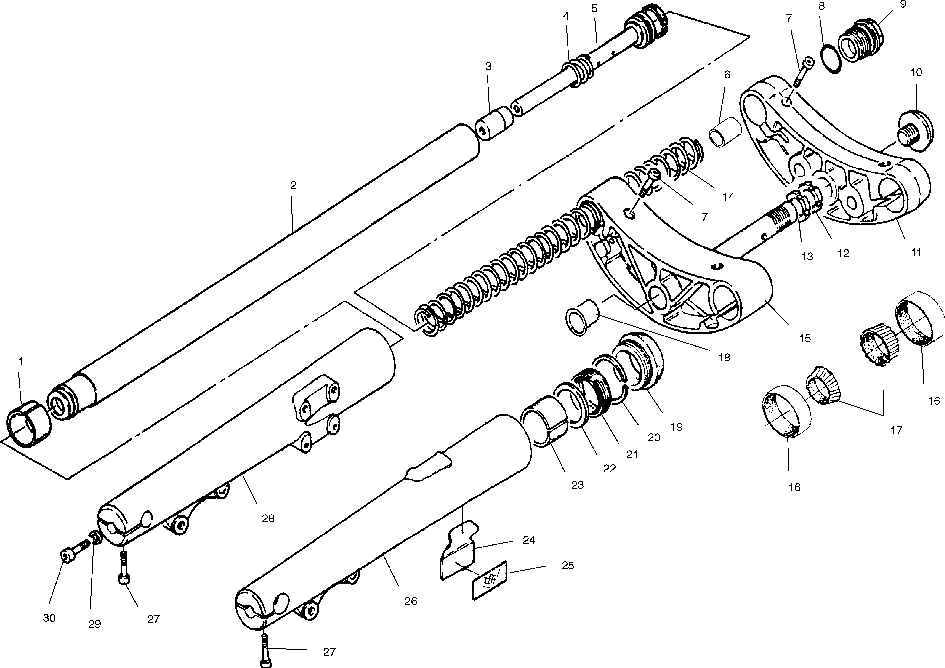

Front forks - v01cs15da

Victory (Polaris) V01CS15CC SPORTCRUISER
Victory (Polaris)
#oem кодцена
1821001
Asm-fork Leg,50mm, Silver, Lh (incl. 1-6,8,9,14,19-23,26,27,29,30)
1821002
Asm-fork Leg,50mm,silver, Rh (incl. 1-6,8,9,14,19-23,27-30)
2872184
Victory Fork Oil Qt(6)
1
3514345
Bushing, Lower, 50mm
2
1820603
Forkleg Asm, Rh, 50mmconv
3
5131498
Foot, Buffer
4
7041624
Пружина
6
3514344
Sleeve, Preload
7
1500170
Clamp, Stan.tube Fastener
8
5411874
O-ring, Fork, 50mm
9
5132437
Cap, Fork, 50mm
10
5131497
Bolt, Steering Post, Cap
11
1821007
Asm-triple, Clamp, Upr, 50mm, Slvr (incl. 7)
12
5131953
Nut-steering Post, Upper
13
5131496
Nut, Steering Post
14
7041891
Spring, Compression, 50mm
15
1821008
Asm-triple, Clamp, Lower, 50mm, Slv (incl. 7, 10, 12, 13)
16
3554507
Обойма подшипника
17
3554510
Bearing, Tpr.rlr, Sealed
18
5433581
Plug-pvc (10)
20
5244334
Ring, Stop, 50mm
21
3610077
Seal, Oil, 50 Mm
22
5132436
Cap, Seal, 50mm
23
3514346
Bushing, Upper, 50mm
24
5433864
Base-reflector, Front, Lh
24
5433748
Base-reflector,front, Rh
25
5433878
Reflector-rect, Amber W/blk Frm
27
1500168
Винт
29
3610069
Washer, Oilseal
30
1500169
Винт
