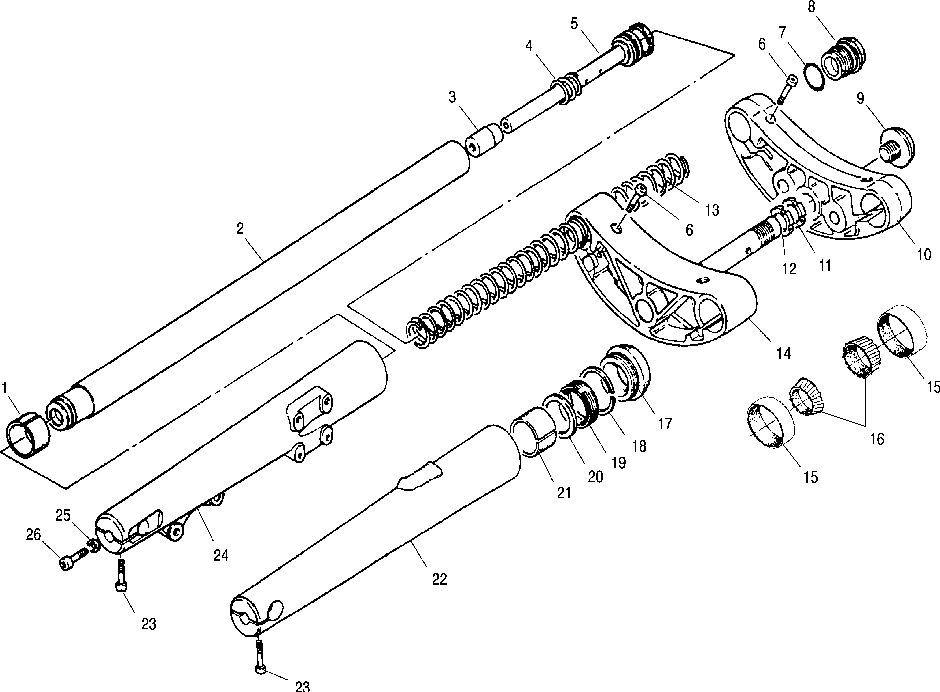

Front forks - v00cb15dc

Victory (Polaris) V00CB15CC STANDARD CRUISER
Victory (Polaris)
#oem кодцена
1843081
Forkleg Asm, Lh, 45mm. (incl. 1-5, 7-9, 13-26)
1843082
Forkleg Asm, Rh, 45mm. (incl. 1-5, 7-9, 13-26)
2872184
Victory Fork Oil Qt(6)
1
3585714
Bushing, Lower
2
5131505
Tube, Stanchion, 45mm
3
5131498
Foot, Buffer
4
7041624
Пружина
5
2201122
Kit, Rod Damper
5
1500171
Segment, Rod Damper
5
1500131
Rod, Damper
6
1500170
Clamp, Stan.tube Fastener
7
5411330
O-ring, Fork
8
5131502
Plug, Fork
9
5131497
Bolt, Steering Post, Cap
10
1820863
Clamp, Triple, 45mm, Upper (incl. 6)
11
5131953
Nut-steering Post, Upper
12
5131496
Nut, Steering Post
13
7041684
Spring, Comp.
14
1820811
Clamp, Lower, Triple (incl. 6, 9, 11, 12)
15
3554507
Обойма подшипника
16
3554510
Bearing, Tpr.rlr, Sealed
17
1500167
Cap, Dustseal
18
5211827
Кольцо
19
3610068
Сальник
20
5131504
Cap, Oilseal
21
3585715
Bushing, Upper
23
1500168
Винт
25
3610069
Washer, Oilseal
26
1500169
Винт
