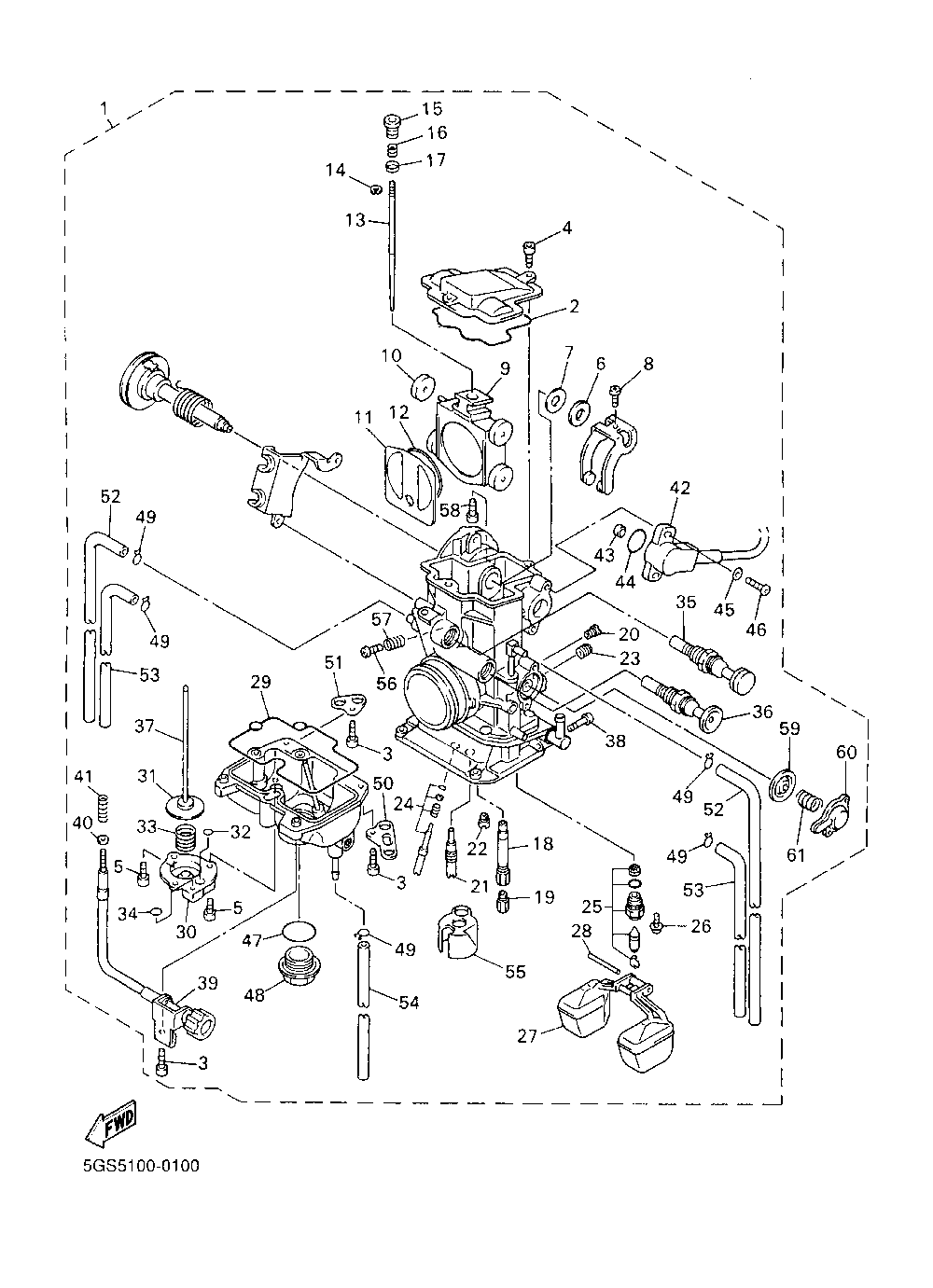

Карбюратор

Yamaha WR 400F
Yamaha
#oem кодцена
1
5GS-14101-50-00
Carburetor Assy 1 (5gs5)
2
5JG-14959-00-00
Gasket (5gs5)
3
91317-04012-00
Bolt (5gs5)
5
91317-04008-00
Bolt (5gs5)
6
90202-08045-00
Washer, Plate (5gs5)
7
5JG-14951-00-00
Washer (5gs5)
8
5JG-14522-00-00
Screw, Adjust (5gs5)
9
5JG-14388-00-00
Valve, Vacuum Contro (5gs5)
10
3TJ-14267-40-00
Roller (5gs5)
11
5JG-14546-00-00
Valve, Needle (5gs5)
12
4FN-14997-00-00
Seal (5gs5)
13
5GS-14916-R1-00
Needle # Drq Ap (5gs5)
13
5GS-14916-RP-00
Needle # Drp Ap (5gs5)
13
5GS-14916-RR-00
Needle # Drr Ap (5gs5)
13
5GS-14916-RS-00
Needle # Drs Std (5gs5)
13
5GS-14916-RT-00
Needle # Drt Ap (5gs5)
13
5GS-14916-RU-00
Needle # Dru Ap (5gs5)
13
5GS-14916-RV-00
Needle # Drv Ap (5gs5)
14
3TJ-14159-40-00
Clip (5gs5)
15
5JG-14521-00-00
Screw, Adjust (5gs5)
16
5JG-14275-00-00
Spring (5gs5)
17
5JG-14264-00-00
Collar (5gs5)
18
5JG-14947-00-00
Jet, Needle (5gs5)
19
4MX-14943-38-00
Jet, Main (#155) Ap (5gs5)
19
4MX-14943-39-00
Jet, Main(160) Ap (5gs5)
19
4MX-14943-40-00
Jet, Main(165) Std (5gs5)
19
4MX-14943-41-00
Jet, Main(170) Ap (5gs5)
19
4MX-14943-42-00
Jet, Main(175) Ap (5gs5)
19
4MX-14943-89-00
Jet, Main(158) Ap (5gs5)
19
4MX-14943-90-00
Jet, Main(162) Ap (5gs5)
19
4MX-14943-91-00
Jet, Main(168) Ap (5gs5)
19
4MX-14943-92-00
Jet, Main(172) Ap (5gs5)
19
4MX-14943-93-00
Jet, Main(178) Ap (5gs5)
20
3TJ-14943-47-00
Jet 200 (5gs5)
21
4MX-14948-02-00
Jet, Slow (#42) Ap (5gs5)
21
4MX-14948-03-00
Jet (40) Ap (5gs5)
21
4MX-14948-04-00
Jet, Pilot(42) Ap (5gs5)
21
4MX-14948-05-00
Jet, Pilot(45) Std (5gs5)
21
4MX-14948-06-00
Jet, Pilot(48) Ap (5gs5)
22
3TJ-1494F-10-00
Jet(#58) Ap (5gs5)
22
3TJ-1494F-11-00
Jet(#60) Ap (5gs5)
22
3TJ-1494F-12-00
Jet(#62) Ap (5gs5)
22
3TJ-1494F-13-00
Jet(#65) Std (5gs5)
22
3TJ-1494F-14-00
Jet(#68) Ap (5gs5)
22
3TJ-1494F-15-00
Jet(#70) Ap (5gs5)
23
7A9-14943-17-00
Jet, Main(#75) (5gs5)
24
3TJ-14105-40-00
Pilot Screw Set (5gs5)
25
5BE-14107-00-00
Needle Valve Set (5gs5)
26
5BE-14216-00-00
Screw (5gs5)
27
4SR-14985-00-00
Float (5gs5)
28
663-14548-00-00
Pin, Float Arm (5gs5)
29
5JG-14984-00-00
Gasket, Float Chambe (5gs5)
30
3TJ-14293-40-00
Cover 1 (5gs5)
31
5JG-14940-17-00
Diaphragm Assy Ap (5gs5)
31
5JG-14940-18-00
Diaphragm Assy Std (5gs5)
31
5JG-14940-19-00
Diaphragm Assy Ap (5gs5)
32
3TJ-14536-40-00
Gasket (5gs5)
33
3TJ-14933-40-00
Spring, Diaphragm (5gs5)
34
6H4-14561-00-00
O-ring (5gs5)
35
5JG-14171-00-00
Plunger, Starter (5gs5)
36
5JG-14371-00-00
Plunger Starter (5gs5)
37
5JG-14379-00-00
Rod, Starter (5gs5)
38
3TJ-14325-40-00
Screw, Pan Head (5gs5)
39
5JG-14922-00-00
Screw, Throttle (5gs5)
40
90201-08410-00
Washer, Plate (5gs5)
41
4FN-14934-00-00
Spring, Throttle Sto (5gs5)
42
5JG-85885-00-00
Throttle Sensor Assy (5gs5)
43
5BE-14449-00-00
Collar (5gs5)
44
5BE-14562-00-00
O-ring (5gs5)
45
92907-04600-00
Washer (jf2) (5gs5)
46
98507-04010-00
Screw, Panhead (5gs5)
47
4MX-14561-00-00
O-ring (5gs5)
48
4MX-14115-00-00
Plug, Screw (5gs5)
49
3TJ-14137-40-00
Clip (5gs5)
50
5JG-14146-00-00
Plate (5gs5)
51
5BE-14146-00-00
Pipe (5gs5)
52
5JG-14197-00-00
Pipe (5gs5)
53
5JG-14197-10-00
Pipe (5gs5)
54
5JG-14987-00-00
Hose (5gs5)
55
5JG-14346-00-00
Plate (5gs5)
56
5JG-14565-00-00
Screw (5gs5)
57
5JG-14531-00-00
Spring, Adjust Screw (5gs5)
58
5GS-14591-00-00
Screw (5gs5)
59
5GS-14940-00-00
Diaphragm Assy (5gs5)
60
5GS-14958-00-00
Cover, Diaphragm (5gs5)
61
5GS-14933-00-00
Spring, Diahragm (5gs5)
