МАСЛЯНЫЙ НАСОС Оригинальные запчасти для мотоциклов Yamaha WR 400F (2000)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

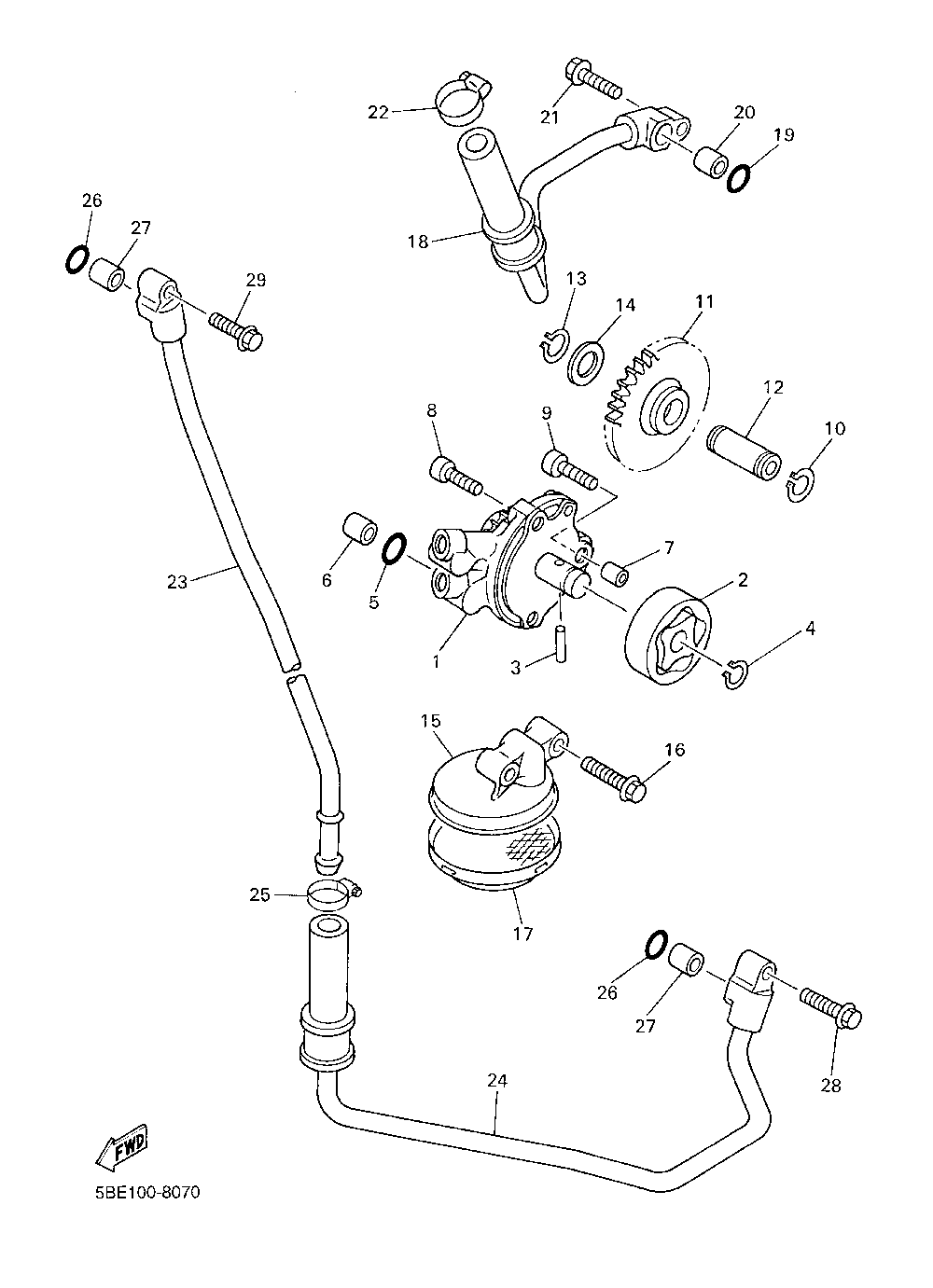

МАСЛЯНЫЙ НАСОС

Yamaha WR 400F

МАСЛЯНЫЙ НАСОС

#

oem код

название

цена

1

5BE-13300-10-00

Oil Pump Assy (5gs5)

Oil Pump Assy (5gs5)

2

1HX-13310-00-00

Rotor Assy 1 (5gs5)

Rotor Assy 1 (5gs5)

3

Pin, Dowel (5gs5)

Pin, Dowel (5gs5)

4

Circlip, Outer (5gs5)

Circlip, Outer (5gs5)

5

O-ring (5gs5)

O-ring (5gs5)

6

Pin, Dowel (5gs5)

Pin, Dowel (5gs5)

7

Pin, Dowel (5gs5)

Pin, Dowel (5gs5)

8

Bolt (4my) (5gs5)

Bolt (4my) (5gs5)

9

Bolt, Socket (5gs5)

Bolt, Socket (5gs5)

10

Circlip (5gs5)

Circlip (5gs5)

11

5BE-13341-00-00

Gear, Oil Pump Idl (5gs5)

Gear, Oil Pump Idl (5gs5)

12

5BE-13342-00-00

Shaft, Idle Gear (5gs5)

Shaft, Idle Gear (5gs5)

13

Circlip (5gs5)

Circlip (5gs5)

14

Washer, Plate (5gs5)

Washer, Plate (5gs5)

15

5BE-13412-00-00

Housing, Strainer (5gs5)

Housing, Strainer (5gs5)

16

Bolt, Small Flange (5gs5)

Bolt, Small Flange (5gs5)

17

5BE-13411-00-00

Strainer, Oil (5gs5)

Strainer, Oil (5gs5)

18

5BE-13464-00-00

Hose, Oil 1 (5gs5)

Hose, Oil 1 (5gs5)

22

Hose Clamp Assy (5gs5)

Hose Clamp Assy (5gs5)

23

5BE-13416-00-00

Pipe, Oil 1 (5gs5)

Pipe, Oil 1 (5gs5)

24

5BE-13465-00-00

Hose, Oil 2 (5gs5)

Hose, Oil 2 (5gs5)

29

Bolt, Flange (5gs5)

Bolt, Flange (5gs5)

22

Hose Clamp Assy (5gs5)

Hose Clamp Assy (5gs5)
