Бугель (задний рычаг) Оригинальные запчасти для мотоциклов Yamaha WR 400F (2000)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

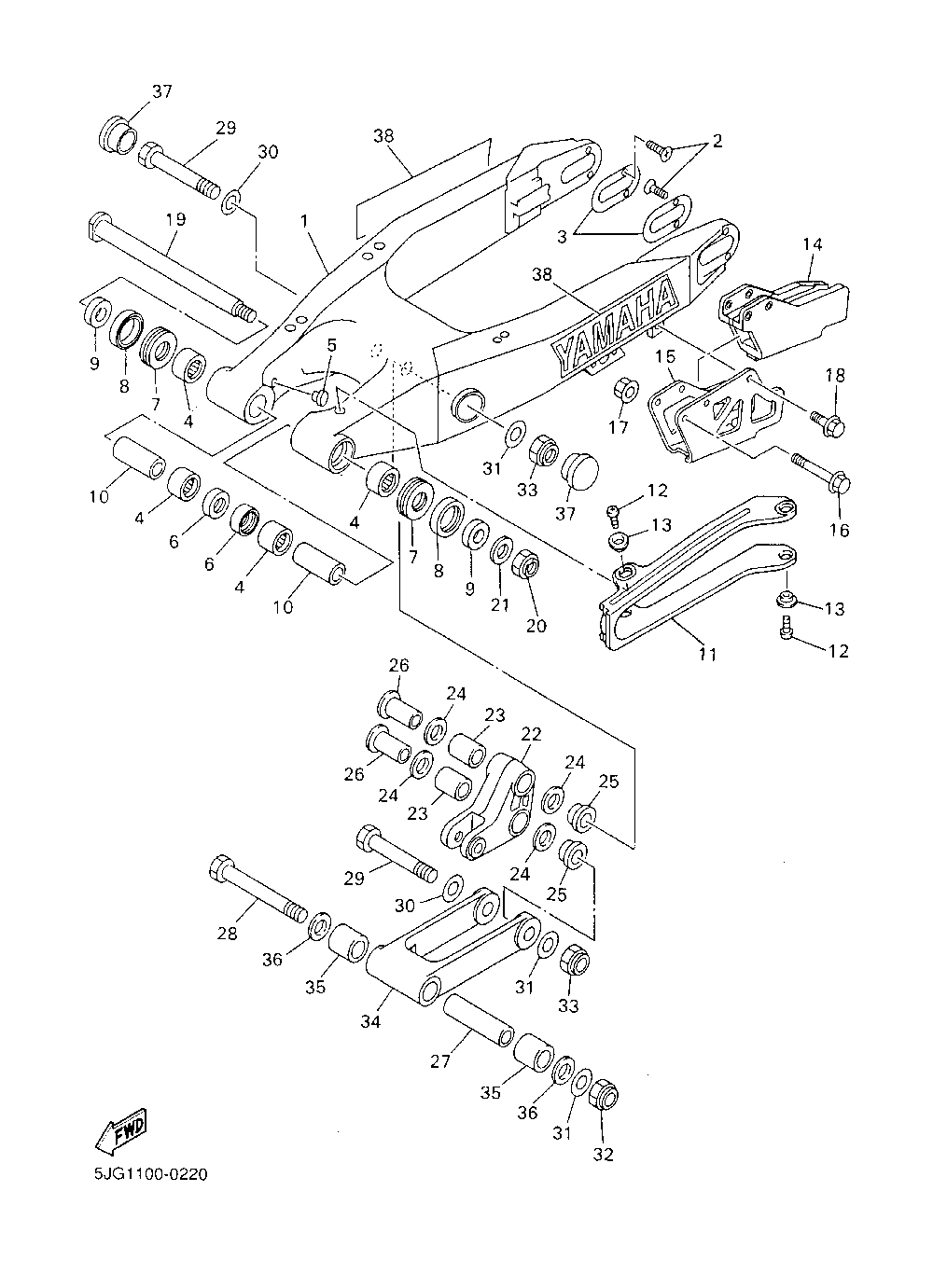

Бугель (задний рычаг)

Yamaha WR 400F

Бугель (задний рычаг)

#

oem код

название

цена

1

5MV-22110-00-00

Rear Arm Comp. (5gs5)

Rear Arm Comp. (5gs5)

2

Screw, Flat (5gs5)

Screw, Flat (5gs5)

3

5ET-22355-00-00

Patch (5gs5)

Patch (5gs5)

4

Bearing, Cyl.#17 (5gs5)

Bearing, Cyl.#17 (5gs5)

5

Plug, Spec'l Shape (5gs5)

Plug, Spec'l Shape (5gs5)

6

Oil Seal, Dd-type (5gs5)

Oil Seal, Dd-type (5gs5)

7

Bearing (5gs5)

Bearing (5gs5)

8

Oil Seal, Sdo-type (5gs5)

Oil Seal, Sdo-type (5gs5)

9

Collar (5gs5)

Collar (5gs5)

10

Collar (5gs5)

Collar (5gs5)

11

5MV-22151-00-00

Seal, Guard (5gs5)

Seal, Guard (5gs5)

12

Screw, Panhead(jn2 (5gs5)

Screw, Panhead(jn2 (5gs5)

13

5JG-22156-00-00

Washer, Plate (5gs5)

Washer, Plate (5gs5)

14

4XM-22199-00-00

Support, Chain (5gs5)

Support, Chain (5gs5)

15

4XM-22128-00-00

Cover, Thrust 1 (5gs5)

Cover, Thrust 1 (5gs5)

16

Bolt, Small Flange (5gs5)

Bolt, Small Flange (5gs5)

17

Nut, Flange (5gs5)

Nut, Flange (5gs5)

18

Bolt, Flange(4my) (5gs5)

Bolt, Flange(4my) (5gs5)

19

5DH-22141-00-00

Shaft, Pivot (5gs5)

Shaft, Pivot (5gs5)

20

Nut, Self-locking (5gs5)

Nut, Self-locking (5gs5)

21

Washer, Plate (5gs5)

Washer, Plate (5gs5)

22

5ET-2217A-00-00

Arm, Relay (5gs5)

Arm, Relay (5gs5)

23

Bearing, Cylindrical (5gs5)

Bearing, Cylindrical (5gs5)

24

Oil Seal (5gs5)

Oil Seal (5gs5)

25

Collar (5gs5)

Collar (5gs5)

26

Collar (5gs5)

Collar (5gs5)

27

Collar (5gs5)

Collar (5gs5)

28

Bolt (5gs5)

Bolt (5gs5)

29

Bolt (5gs5)

Bolt (5gs5)

31

Washer, Plate (5gs5)

Washer, Plate (5gs5)

32

Nut, Self-locking (5gs5)

Nut, Self-locking (5gs5)

33

Nut, U (jn5) (5gs5)

Nut, U (jn5) (5gs5)

34

5DH-2217F-01-00

Rod Conn. 1 (5gs5)

Rod Conn. 1 (5gs5)

37

5HD-2135F-00-00

Cover (5gs5)

Cover (5gs5)

38

Emblem, Yamaha (5gs5)

Emblem, Yamaha (5gs5)
