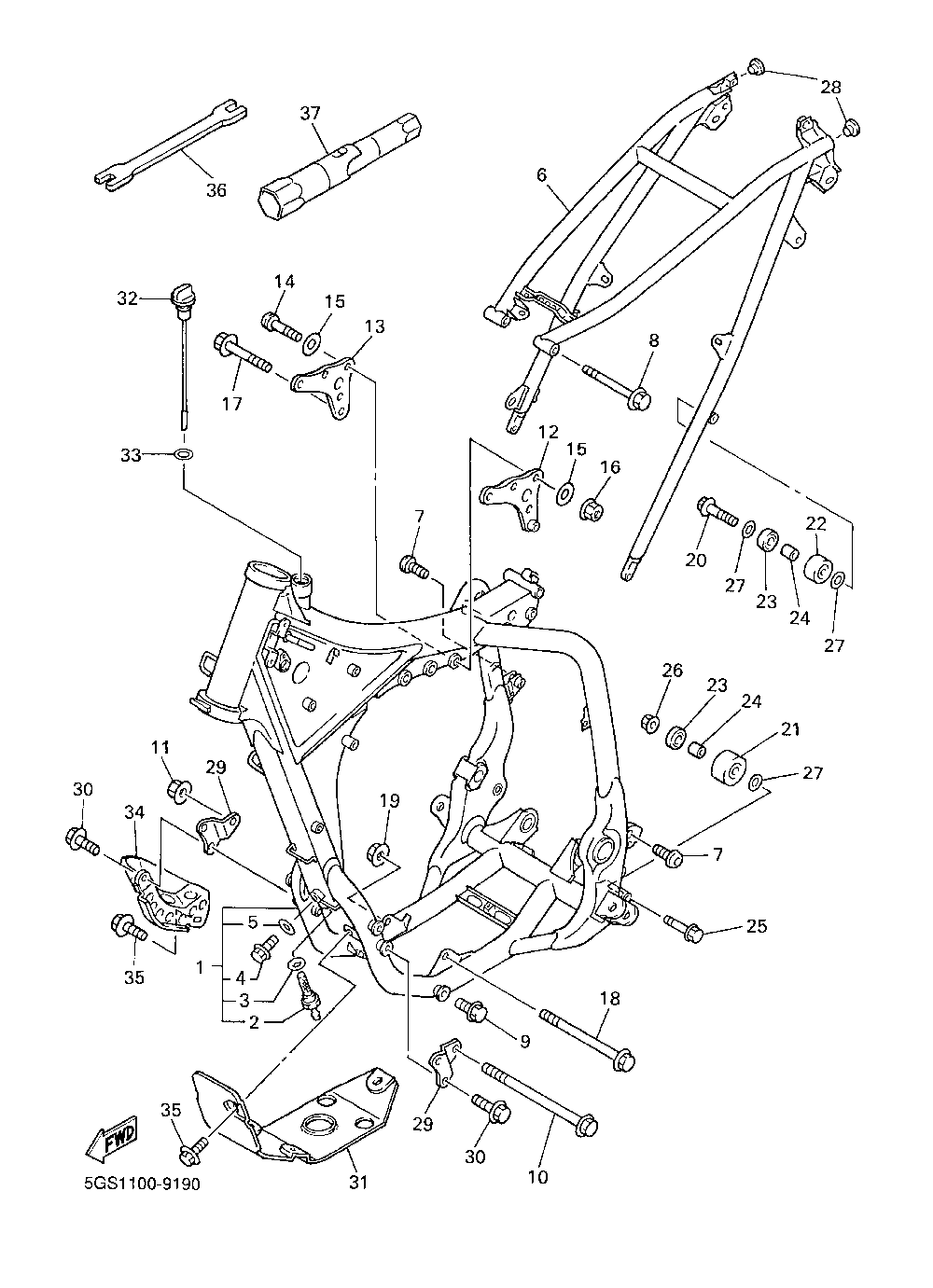

Рама

Yamaha WR 400F
Yamaha
#oem кодцена
1
5GS-21101-50-P0
Front Frame Comp. Dpbmc (5gs5)
2
5BE-21756-00-00
Strainer, Oil (5gs5)
3
90430-18130-00
Gasket (5gs5)
4
95817-08012-00
Bolt, Flange (5gs5)
5
90201-08087-00
Washer, Plate (5gs5)
6
5NG-21190-00-P0
Rear Frame Comp. Dpbmc (5gs5)
7
90110-08096-00
Bolt, Hex Skt Head (5gs5)
8
90105-08099-00
Bolt, Washer Based (5gs5)
9
95817-08016-00
Bolt, Flange (jn5) (5gs5)
10
95817-10160-00
Bolt, Flange (5gs5)
11
95607-10200-00
Nut, Self-locking (5gs5)
12
5GR-21425-01-00
Bracket, Rear Uppe (5gs5)
13
5BE-21425-01-00
Bracket, Rear Uppe (5gs5)
14
92017-08055-00
Bolt, Button Head (5gs5)
15
90201-086P8-00
Washer, Plate (5gs5)
16
90185-08169-00
Nut, Self Locking (5gs5)
17
95817-10050-00
Bolt, Flange (8ab) (5gs5)
18
90105-10733-00
Bolt, Washer Based (5gs5)
20
95027-08040-00
Bolt, Flange(4my) (5gs5)
21
3JD-22178-20-00
Tensioner (5gs5)
22
4EW-22178-01-00
Tensioner (5gs5)
23
93300-60804-00
Bearing (5gs5)
24
90387-086N4-00
Collar (5gs5)
25
95027-08065-00
Bolt, Small Flange (5gs5)
26
95707-08500-00
Nut, Flange (jn5) (5gs5)
28
90480-17218-00
Grommet (5gs5)
29
5BE-21417-00-00
Bracket, Front Low (5gs5)
31
5BE-21471-00-00
Protector, Engine (5gs5)
32
5BE-15362-00-00
Plug, Oil Level (5gs5)
33
93210-19123-00
O-ring (5gs5)
34
5TA-2147A-00-00
Guard, Engine 1 (5gs5)
35
95027-08012-00
Bolt, Small Flange (5gs5)
36
5ET-28166-00-00
Wrench, Hexagon (5gs5)
37
5BE-2814F-00-00
Spark Plug Wrench (5gs5)
