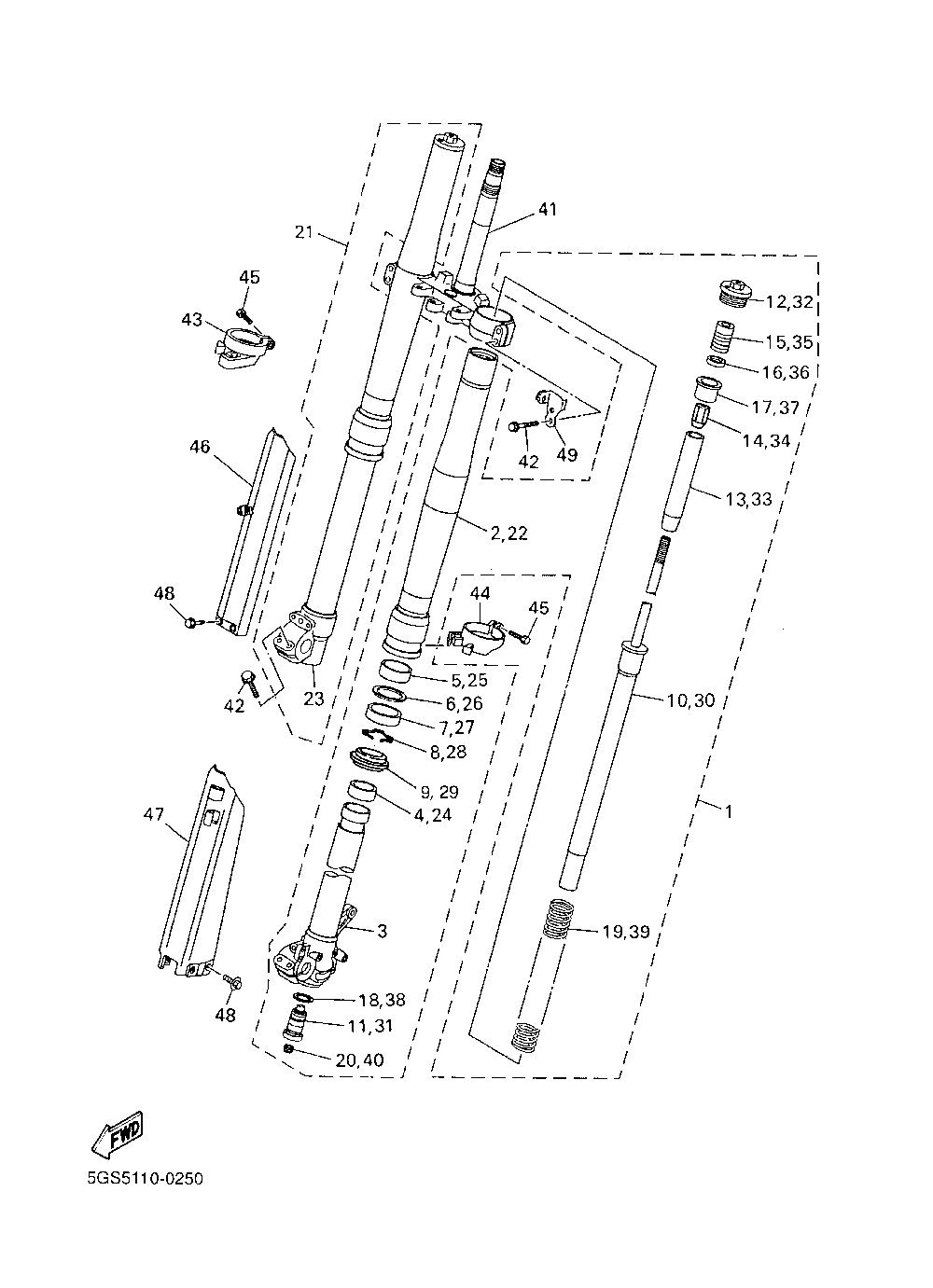

Передняя вилка

Yamaha WR 400F
Yamaha
#oem кодцена
1
5GS-23102-50-00
Front Fork Assy (l) (5gs5)
2
5HD-23136-L0-00
Tube Outer (right) (5gs5)
3
5DH-23120-L0-00
Inner Tube Comp, 2 (5gs5)
4
5ET-23171-L0-00
Piston, Front Fork (5gs5)
5
5ET-23125-L0-00
Metal, Slide 1 (5gs5)
6
4SS-23146-L0-00
Washer, Oil Seal (5gs5)
7
5UN-23145-L0-00
Oil Seal (5gs5)
8
4SS-23153-L0-00
Ring, Snap (5gs5)
9
5HD-23144-L0-00
Seal, Dust (5gs5)
10
5GS-23170-50-00
Cylinder, Comp. Frt (5gs5)
11
5GS-2316A-50-00
Valve Comp. (5gs5)
12
5HD-23111-L0-00
Bolt, Cap (5gs5)
13
5DH-23142-L0-00
Seat, Spring Upper (5gs5)
14
5HD-23393-L0-00
Nut, Special Shap (5gs5)
15
5DH-23195-L0-00
Rubber (5gs5)
16
5DH-23149-L0-00
Washer, Spring Upper (5gs5)
17
5DH-23118-L0-00
Spacer (5gs5)
18
4SS-23158-L0-00
Gasket (5gs5)
19
5GR-23141-L0-00
Spring, Frt Frk (5gs5)
20
3JD-2312G-L0-00
Plug (5gs5)
21
5GS-23103-50-00
Front Fork Assy (r) (5gs5)
23
5BF-23110-L0-00
Inner Tube Comp. 1 (5gs5)
41
5GS-23340-50-00
Under Bracket Comp. (5gs5)
42
95024-08040-00
Bolt, Flange (5gs5)
43
4SS-2314G-L0-00
Protecter, Guide, 2 (5gs5)
44
5DH-2314F-L0-00
Proctector Comp. 1 (5gs5)
45
4SS-23346-L0-00
Bolt 1 (5gs5)
46
5BF-2314J-00-00
Protecter Comp., 2 (5gs5)
47
5DH-2314H-00-00
Protecter Comp., 1 (5gs5)
48
3SP-23356-L0-00
Bolt 2 (5gs5)
49
5HC-2331E-00-00
Guide, Cable (5gs5)
