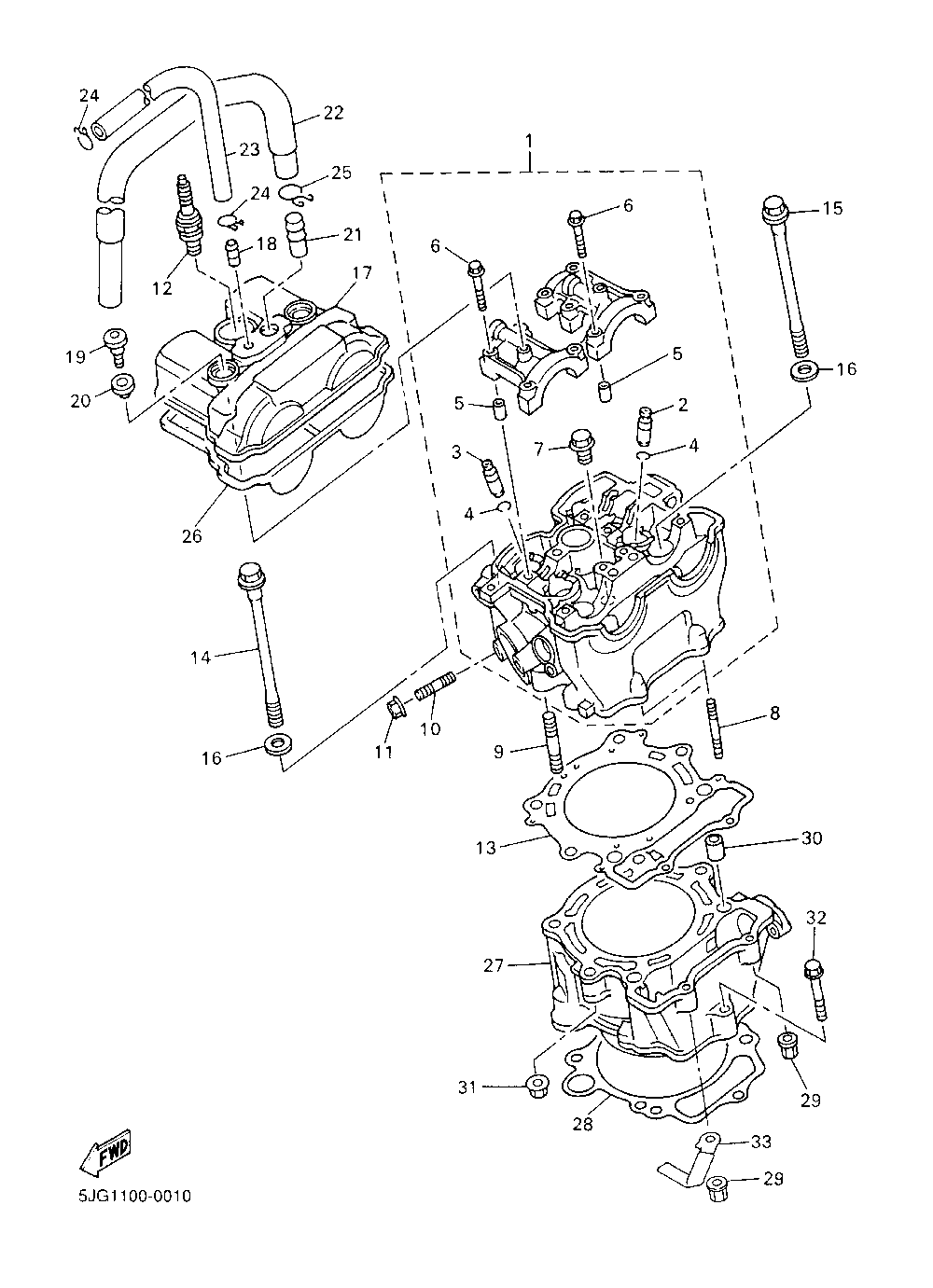

Цилиндр

Yamaha YZ 426F
Yamaha
#oem кодцена
1
5JG-11102-20-00
Cylinder Head Assy (5jg1)
2
5BE-11133-10-00
Guide, Intake Valv (5jg1)
3
5BE-11134-10-00
Guide, Exhust Valve (5jg1)
4
93440-10153-00
Circlip, Outer (5jg1)
5
91808-16023-00
Pin, Dowel (5jg1)
6
90105-067A6-00
Bolt, Washer Based (5jg1)
7
90340-12112-00
Plug, Straight Scrw (5jg1)
8
95617-06635-00
Bolt, Stud (5jg1)
9
95617-08635-00
Bolt, Stud 3 (5jg1)
10
95617-08620-00
Bolt, Stud 3 (5jg1)
11
95707-08500-00
Nut, Flange (jn5) (5jg1)
12
NGK-CR9E0-00-00
Ngk Cr9e 10pk Ur Ap(5jg1)
12
NGK-CR8E0-00-00
Ngk Cr8e 10pk Ur Std(5jg1)
13
5JG-11181-00-00
Gasket, Cylinder H (5jg1)
14
90105-104A7-00
Bolt, Washer Based (5jg1)
15
90105-106A3-00
Bolt, Washer Based (5jg1)
16
90201-102G9-00
Washer, Plate (5jg1)
17
5BE-11191-00-00
Cover, Cylinder He (5jg1)
18
5BE-11167-00-00
Pipe, Breather 2 (5jg1)
19
90109-066F0-00
Bolt (5jg1)
20
5EA-1111G-00-00
Rubber, Mount 1 (5jg1)
21
371-11167-01-00
Pipe, Breather 2 (5jg1)
22
5BE-11166-00-00
Pipe, Breather 1 (5jg1)
23
90445-117F2-00
Hose (5jg1)
24
90467-11106-00
Clip (5jg1)
25
90467-14015-00
Clip, Scissor (5jg1)
26
5BE-11193-10-00
Gasket, Head Cover (5jg1)
27
5JG-11311-10-00
Cylinder 1 (5jg1)
28
5BE-11351-00-00
Gasket, Cylinder (5jg1)
29
90179-06500-00
Nut, Spec'l Shape (5jg1)
30
93612-16254-00
Pin, Dowel (5jg1)
31
90179-08270-00
Nut, Spec'l Shape (5jg1)
32
95027-06040-00
Bolt, Small Flange (5jg1)
33
5JG-11387-00-00
Clamp, Hose 1 (5jg1)
12
CR9-E0000-00-00
Ngk Cr9e 10pk Ur Ap(5jg1)
12
CR8-E0000-00-00
Ngk Cr8e 10pk Ur Std(5jg1)
