Стартер Оригинальные запчасти для мотоциклов Yamaha YZ 426F (2000)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

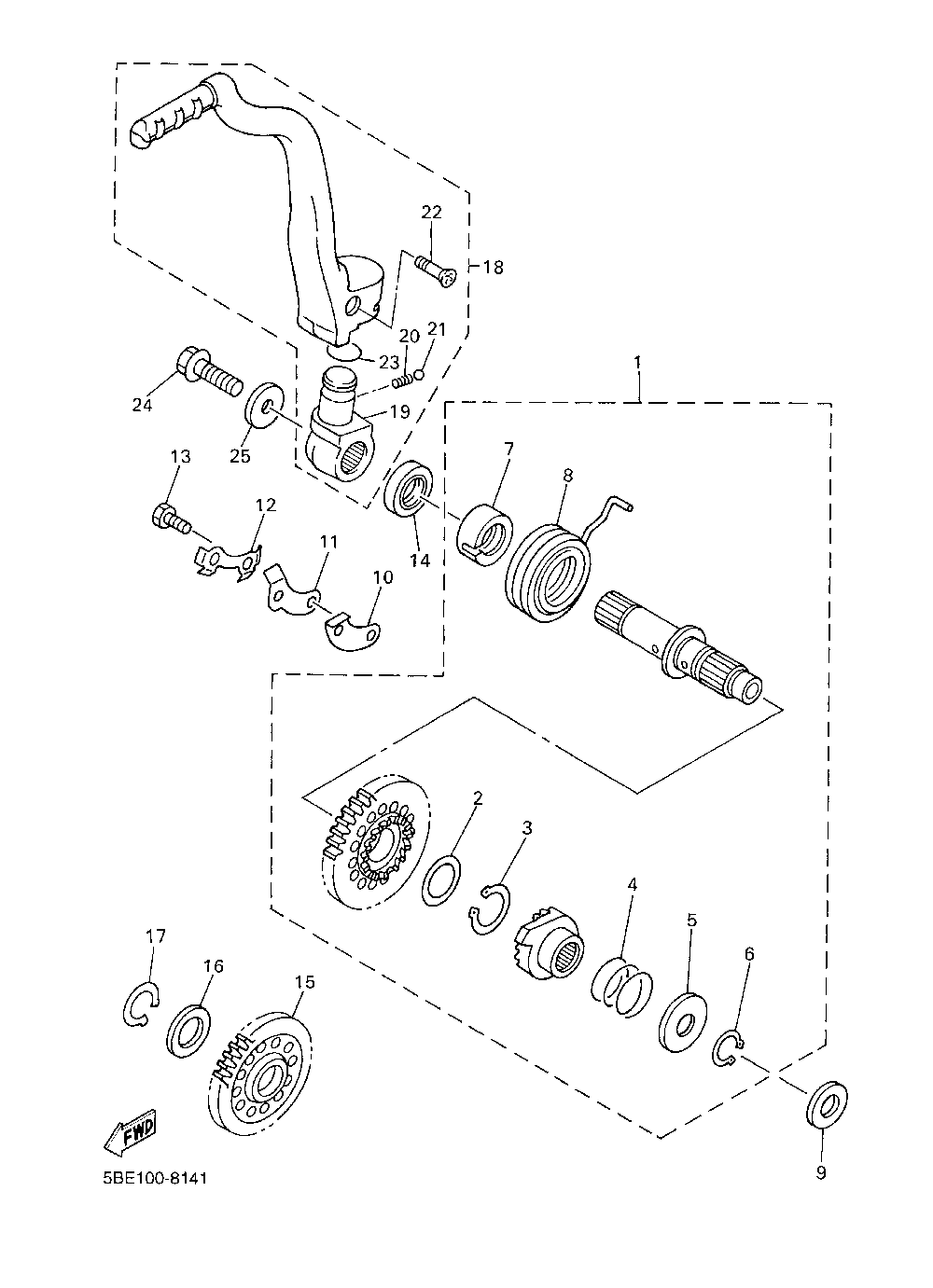

Стартер

Yamaha YZ 426F

Стартер

#

oem код

название

цена

1

5GR-15601-00-00

Kick Shaft Assy (5jg1)

Kick Shaft Assy (5jg1)

2

Washer, Plate (5jg1)

Washer, Plate (5jg1)

3

Circlip, S-type (5jg1)

Circlip, S-type (5jg1)

4

Spring, Compression (5jg1)

Spring, Compression (5jg1)

5

Washer, Plate (5jg1)

Washer, Plate (5jg1)

6

Circlip, S-type (5jg1)

Circlip, S-type (5jg1)

7

5GR-15664-00-00

Guide, Spring (5jg1)

Guide, Spring (5jg1)

8

Spring, Torsion (5jg1)

Spring, Torsion (5jg1)

9

Washer, Plate (5jg1)

Washer, Plate (5jg1)

10

5BE-15668-00-00

Stopper (5jg1)

Stopper (5jg1)

11

5BE-15674-00-00

Guide, Ratchet Whe (5jg1)

Guide, Ratchet Whe (5jg1)

12

5BE-15686-01-00

Washer, Lock (5jg1)

Washer, Lock (5jg1)

13

Bolt, Hexagon (5jg1)

Bolt, Hexagon (5jg1)

14

Oil Seal, Sd-type (5jg1)

Oil Seal, Sd-type (5jg1)

15

5BE-15651-00-00

Gear, Kick Idle (5jg1)

Gear, Kick Idle (5jg1)

16

Washer, Plate (5jg1)

Washer, Plate (5jg1)

17

Circlip (5jg1)

Circlip (5jg1)

18

5BE-15620-02-00

Kick Crank Assy (5jg1)

Kick Crank Assy (5jg1)

19

3SP-15621-02-00

Boss, Kick Crank (5jg1)

Boss, Kick Crank (5jg1)

20

Spring, Compression (5jg1)

Spring, Compression (5jg1)

21

Ball 1/4 (5jg1)

Ball 1/4 (5jg1)

22

Screw, Countersunk (5jg1)

Screw, Countersunk (5jg1)

23

O-ring (5jg1)

O-ring (5jg1)

24

Bolt, Flange(8ab) (5jg1)

Bolt, Flange(8ab) (5jg1)

25

Washer, Plate (5jg1)

Washer, Plate (5jg1)
