ТРАНСМИССИЯ Оригинальные запчасти для мотоциклов Yamaha YZ 426F (2000)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

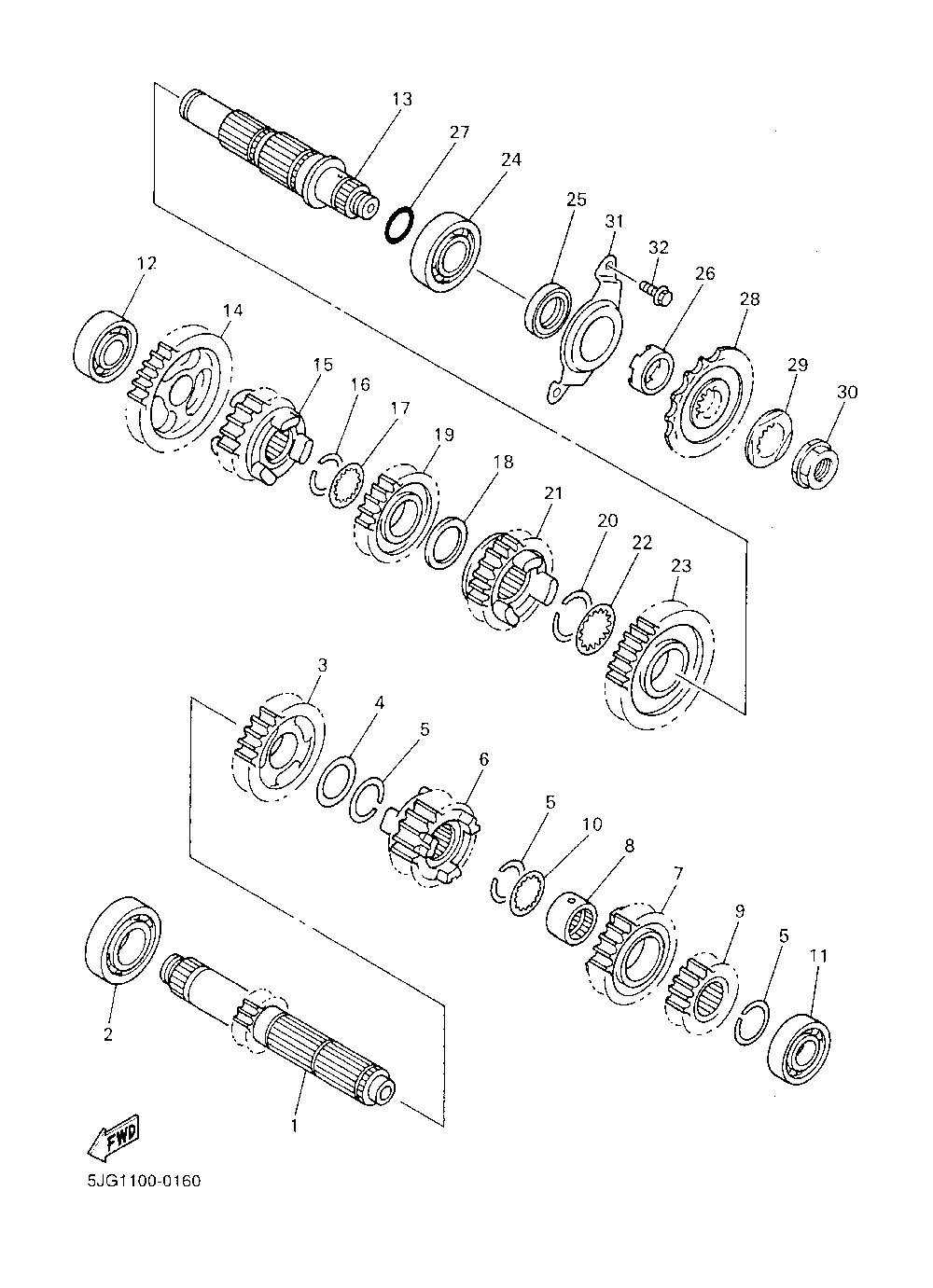

ТРАНСМИССИЯ

Yamaha YZ 426F

ТРАНСМИССИЯ

#

oem код

название

цена

1

5JG-17411-00-00

Axle, Main (5jg1)

Axle, Main (5jg1)

2

Bearing (5jg1)

Bearing (5jg1)

3

5BE-17151-00-00

Gear, 5th Pinion (5jg1)

Gear, 5th Pinion (5jg1)

4

Washer, Plate (59w) (5jg1)

Washer, Plate (59w) (5jg1)

5

Circlip, Outer (5jg1)

Circlip, Outer (5jg1)

6

5BE-17131-10-00

Gear, 3rd Pinion (5jg1)

Gear, 3rd Pinion (5jg1)

7

5BE-17141-20-00

Gear, 4th Pinion (5jg1)

Gear, 4th Pinion (5jg1)

8

Collar (5jg1)

Collar (5jg1)

9

5JG-17121-00-00

Gear, 2nd Pinion (5jg1)

Gear, 2nd Pinion (5jg1)

10

Washer (5jg1)

Washer (5jg1)

11

Bearing (5jg1)

Bearing (5jg1)

12

Bearing (5jg1)

Bearing (5jg1)

13

5BE-17402-00-00

Drive Axle Assy (5jg1)

Drive Axle Assy (5jg1)

14

5JG-17211-00-00

Gear, 1st Wheel (5jg1)

Gear, 1st Wheel (5jg1)

15

5BE-17251-10-00

Gear, 5th Wheel (5jg1)

Gear, 5th Wheel (5jg1)

19

5BE-17231-00-00

Gear, 3rd Wheel (5jg1)

Gear, 3rd Wheel (5jg1)

20

Circlip, Outer (5jg1)

Circlip, Outer (5jg1)

21

5BE-17241-10-00

Gear, 4th Wheel (5jg1)

Gear, 4th Wheel (5jg1)

22

Washer (5jg1)

Washer (5jg1)

23

5JG-17221-00-00

Gear, 2nd Wheel (5jg1)

Gear, 2nd Wheel (5jg1)

24

Bearing (5jg1)

Bearing (5jg1)

25

Oil Seal (5jg1)

Oil Seal (5jg1)

26

Collar (5jg1)

Collar (5jg1)

27

O-ring (5jg1)

O-ring (5jg1)

28

Sprocket, Drive (1 (5jg1)

Sprocket, Drive (1 (5jg1)

29

Washer, Lock (5jg1)

Washer, Lock (5jg1)

30

Nut (5jg1)

Nut (5jg1)

31

5GR-17471-10-00

Plate, Cover (5jg1)

Plate, Cover (5jg1)

32

Bolt, Flange (4my) (5jg1)

Bolt, Flange (4my) (5jg1)
