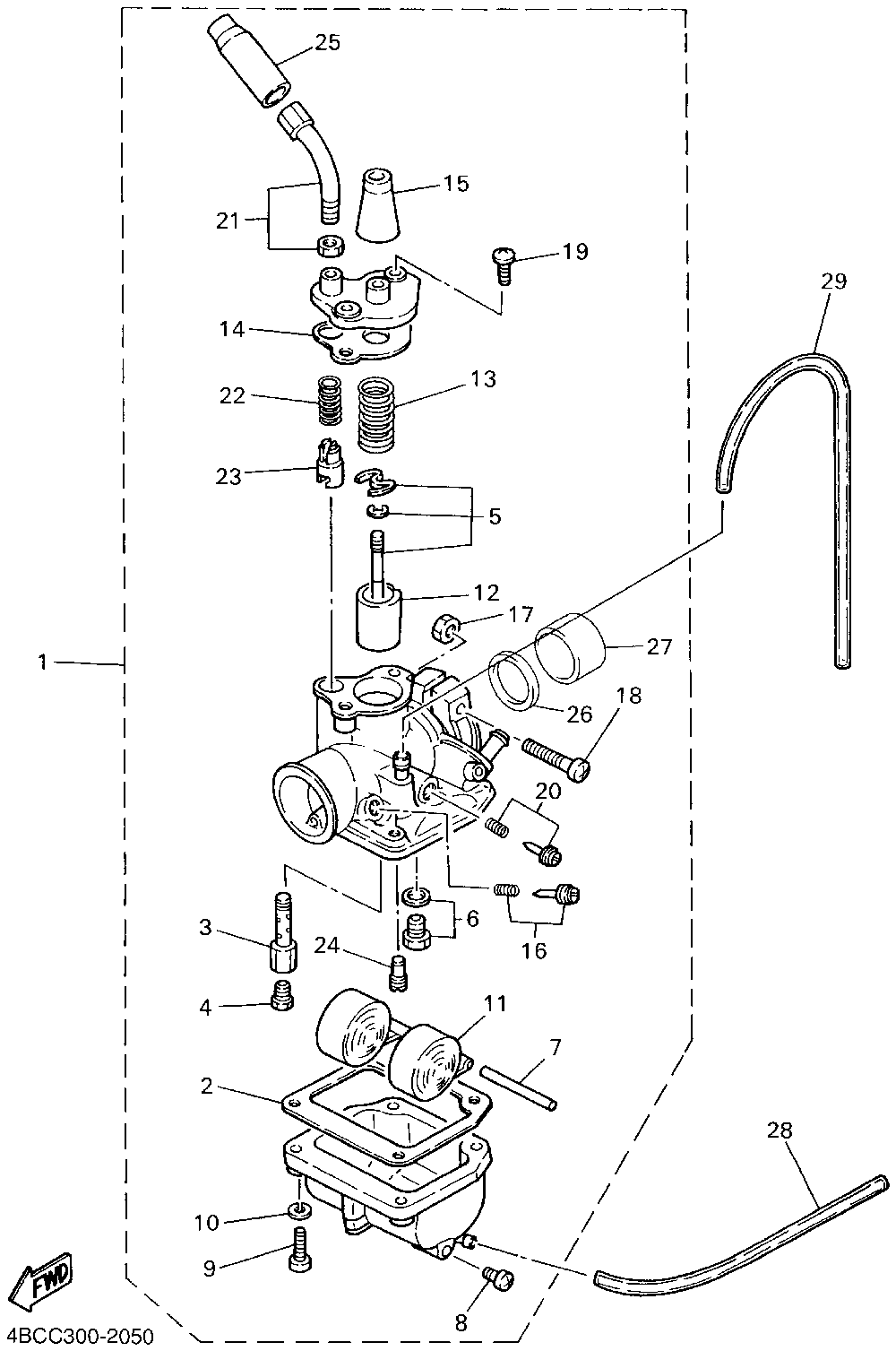

Карбюратор

Yamaha PW 80

Карбюратор

#

oem код

название

цена

1

21W-14101-01-00

Carburetor Assy 1 (usa)

Carburetor Assy 1 (usa)

2

296-14184-01-00

Gasket, Float Chmbr (usa)

Gasket, Float Chmbr (usa)

3

127-14141-14-00

Nozzle, Main (usa)

Nozzle, Main (usa)

4

127-14143-24-00

Jet, Main #120 Ur(usa)

Jet, Main #120 Ur(usa)

4

127-14143-26-00

Jet, Main #130 Ur(usa)

Jet, Main #130 Ur(usa)

4

127-14143-25-00

Jet, Main #125 Std(usa)

Jet, Main #125 Std(usa)

5

21W-1490J-00-00

Needle Set (usa)

Needle Set (usa)

6

21W-14107-12-00

Needle Valve Set (usa)

Needle Valve Set (usa)

7

127-14186-00-00

Pin, Float (usa)

Pin, Float (usa)

8

12R-14191-00-00

Plug, Drain (usa)

Plug, Drain (usa)

9

Screw, Panhead (usa)

Screw, Panhead (usa)

11

2E9-14185-00-00

Float (usa)

Float (usa)

12

18E-14112-25-00

Valve, Throttle 1 (usa)

Valve, Throttle 1 (usa)

13

296-14131-00-00

Spring, Thrtl Valve (usa)

Spring, Thrtl Valve (usa)

14

296-14198-01-00

Gasket (usa)

Gasket (usa)

15

307-14169-10-00

Cap (usa)

Cap (usa)

16

36R-14104-00-00

Air Screw Set (usa)

Air Screw Set (usa)

17

Nut (usa)

Nut (usa)

18

Screw, Pan Head (usa)

Screw, Pan Head (usa)

19

Screw, Pan Head (usa)

Screw, Pan Head (usa)

20

12G-14103-00-00

Throttle Screw Set (usa)

Throttle Screw Set (usa)

21

21W-14503-00-00

Adjust Screw Set (usa)

Adjust Screw Set (usa)

22

127-14135-00-00

Spring, Plunger (usa)

Spring, Plunger (usa)

23

58E-14171-00-00

Plunger, Starter (usa)

Plunger, Starter (usa)

24

193-14142-15-A0

Jet, Pilot #15 (usa)

Jet, Pilot #15 (usa)

25

1R0-14169-00-00

Cap (usa)

Cap (usa)

26

1M3-14997-00-00

Seal (usa)

Seal (usa)

27

1V3-14271-00-00

Insulator (usa)

Insulator (usa)

28

Hose (l200) (usa)

Hose (l200) (usa)

29

Hose (usa)

Hose (usa)
