Передняя вилка Оригинальные запчасти для мотоциклов Yamaha PW50 (2002)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

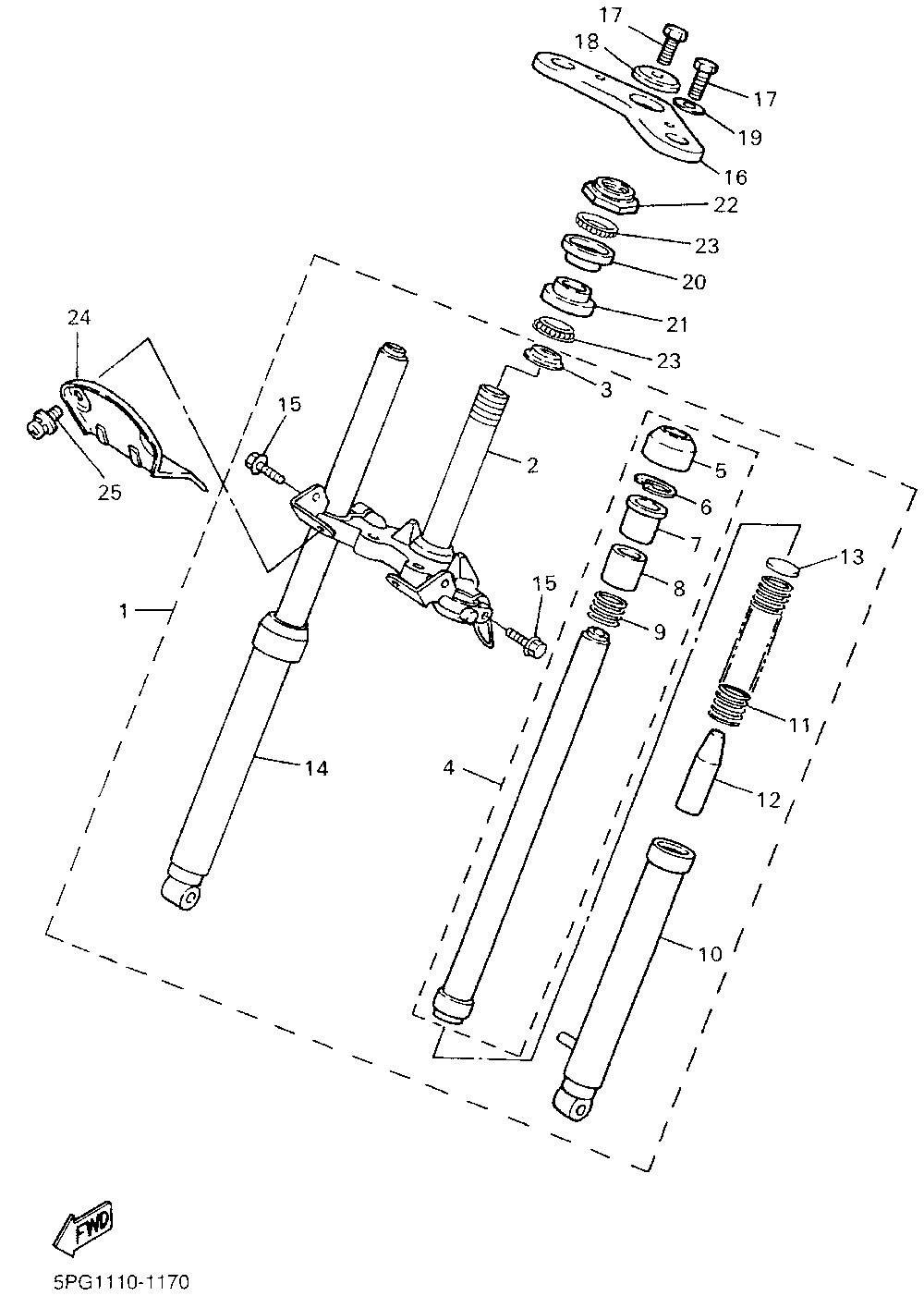

Передняя вилка

Yamaha PW50

Передняя вилка

#

oem код

название

цена

1

3PT-23100-11-35

Front Fork Assy Sl(usa)

Front Fork Assy Sl(usa)

2

3PT-23340-10-00

Under Bracket Comp. (usa)

Under Bracket Comp. (usa)

3

3YJ-23414-00-00

Race, Ball 4 (usa)

Race, Ball 4 (usa)

4

3PT-23110-00-00

Inner Tube Comp. 1 (usa)

Inner Tube Comp. 1 (usa)

5

2E9-23144-01-00

Seal, Dust (usa)

Seal, Dust (usa)

6

Circlip (1yt) (usa)

Circlip (1yt) (usa)

7

54V-23125-02-00

Metal, Slide 1 (usa)

Metal, Slide 1 (usa)

8

2E9-23113-01-00

Collar (usa)

Collar (usa)

9

36R-23151-00-00

Spring, Rebound (usa)

Spring, Rebound (usa)

10

4X4-23106-00-35

Outer Tube Lh Sl(usa)

Outer Tube Lh Sl(usa)

11

4X4-23141-00-00

Spring, Front Fork (usa)

Spring, Front Fork (usa)

12

3L6-23195-00-00

Rubber (usa)

Rubber (usa)

13

2E9-23143-00-00

Seat, Spring Lower (usa)

Seat, Spring Lower (usa)

14

3PT-23103-00-35

Pcont Forl Assy (r) Sl(usa)

Pcont Forl Assy (r) Sl(usa)

15

Bolt, Small Flange (usa)

Bolt, Small Flange (usa)

16

4X4-23435-00-00

Crown, Handle Uni Chrome (black)(usa)

Crown, Handle Uni Chrome (black)(usa)

17

Bolt, Washer Based (usa)

Bolt, Washer Based (usa)

18

Washer, Spec'l Shap (usa)

Washer, Spec'l Shap (usa)

19

Washer, Plate (usa)

Washer, Plate (usa)

20

2E9-23412-00-00

Race, Ball 2 (usa)

Race, Ball 2 (usa)

21

2E9-23413-01-00

Race, Ball 3 (usa)

Race, Ball 3 (usa)

22

3PT-23411-00-00

Race, Ball 1 (usa)

Race, Ball 1 (usa)

23

Ball 5/32 (usa)

Ball 5/32 (usa)

24

4X4-21543-00-00

Plate 1 (usa)

Plate 1 (usa)

25

Screw, With Washer (usa)

Screw, With Washer (usa)
