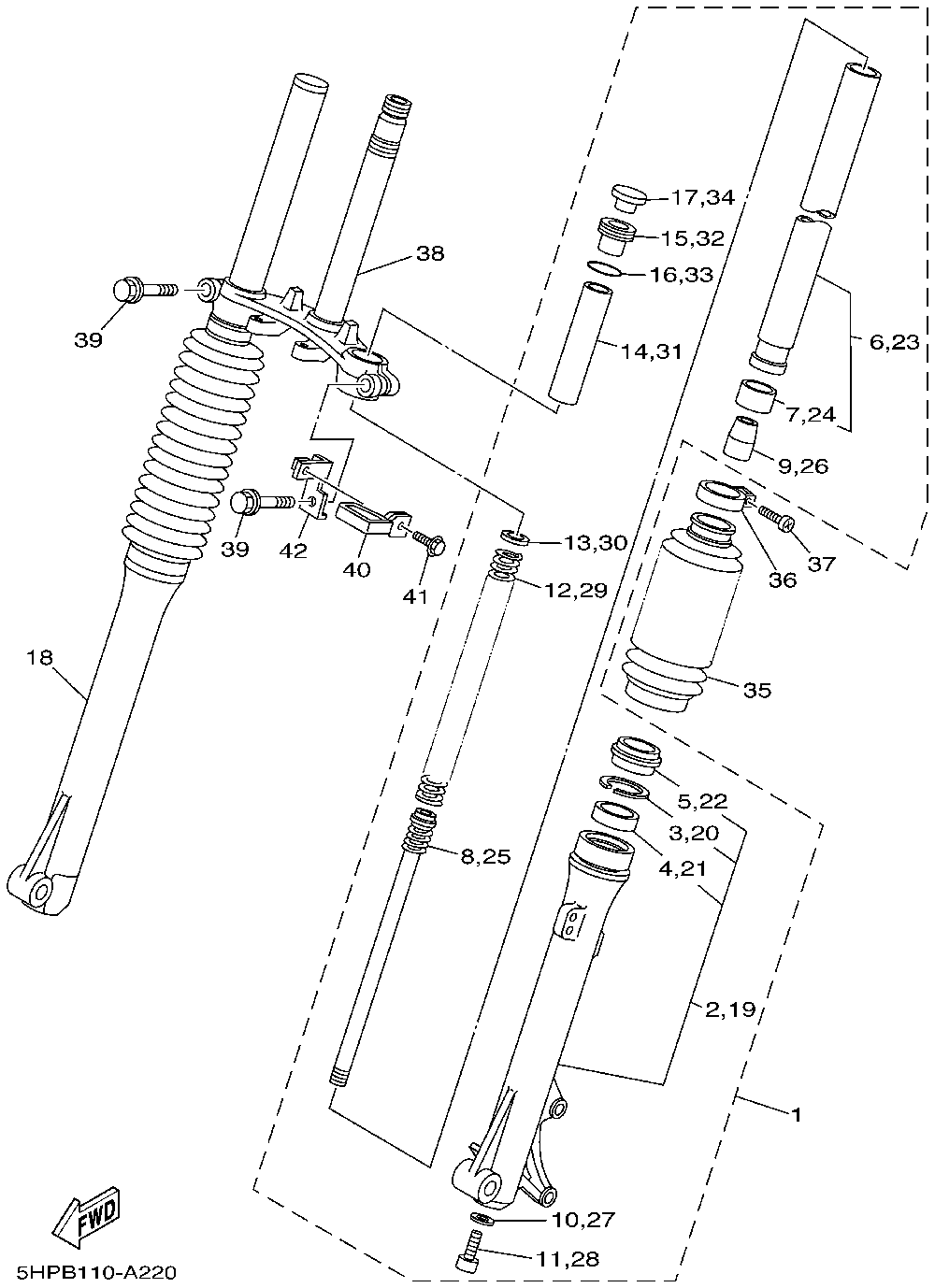

Front fork 2

Yamaha TT-R125

Front fork 2

#

oem код

название

цена

1

5HP-23102-10-00

Front Fork Assy (l.h (5hpd)

Front Fork Assy (l.h (5hpd)

2

5HP-23106-10-00

Outer Tube Comp. (l. (5hpd)

Outer Tube Comp. (l. (5hpd)

3

3V3-23156-00-00

Clip, Oil Seal (5hpd)

Clip, Oil Seal (5hpd)

4

33J-23145-00-00

Oil Seal (5hpd)

Oil Seal (5hpd)

5

4KN-23144-00-00

Seal, Dust (5hpd)

Seal, Dust (5hpd)

6

5HP-23110-00-00

Inner Tube Comp.1 (5hpd)

Inner Tube Comp.1 (5hpd)

7

17W-23171-00-00

Piston, Front Fork (5hpd)

Piston, Front Fork (5hpd)

8

5HP-23170-10-00

Cylinder Comp., Fron (5hpd)

Cylinder Comp., Fron (5hpd)

9

2K5-23173-00-00

Spindle, Taper (5hpd)

Spindle, Taper (5hpd)

10

509-23158-L0-00

Gasket (5hpd)

Gasket (5hpd)

11

278-23181-50-00

Bolt, Hex Sckt Head (5hpd)

Bolt, Hex Sckt Head (5hpd)

12

5HP-23141-10-00

Spring, Front Fork (5hpd)

Spring, Front Fork (5hpd)

13

5J0-23146-00-00

Washer, Oil Seal (5hpd)

Washer, Oil Seal (5hpd)

14

5HP-23118-10-00

Spacer (5hpd)

Spacer (5hpd)

15

1X0-23111-00-00

Bolt, Cap (5hpd)

Bolt, Cap (5hpd)

16

146-23114-00-00

Gasket (5hpd)

Gasket (5hpd)

17

1X0-23168-00-00

Cap (5hpd)

Cap (5hpd)

18

5HP-23103-10-00

Front Fork Assy (r.h (5hpd)

Front Fork Assy (r.h (5hpd)

19

5HP-23107-10-00

Outer Tube Comp. (r. (5hpd)

Outer Tube Comp. (r. (5hpd)

35

5HP-23191-00-00

Boot (5hpd)

Boot (5hpd)

36

482-23192-40-00

Band, Boot (5hpd)

Band, Boot (5hpd)

37

Screw, Pan Head (5hpd)

Screw, Pan Head (5hpd)

38

5HP-23340-00-00

Under Bracket Comp (5hpd)

Under Bracket Comp (5hpd)

39

Bolt, Washer Based (5hpd)

Bolt, Washer Based (5hpd)

40

4DA-23389-00-00

Guide, Cable (5hpd)

Guide, Cable (5hpd)

41

Bolt, With Washer (5hpd)

Bolt, With Washer (5hpd)

42

5HP-2331E-00-00

Guide, Cable (5hpd)

Guide, Cable (5hpd)

2

5HP-23106-11-00

Outer Tube Comp. (l. (5hpd)

Outer Tube Comp. (l. (5hpd)
