Передняя вилка Оригинальные запчасти для мотоциклов Yamaha TT-R90 (2002)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

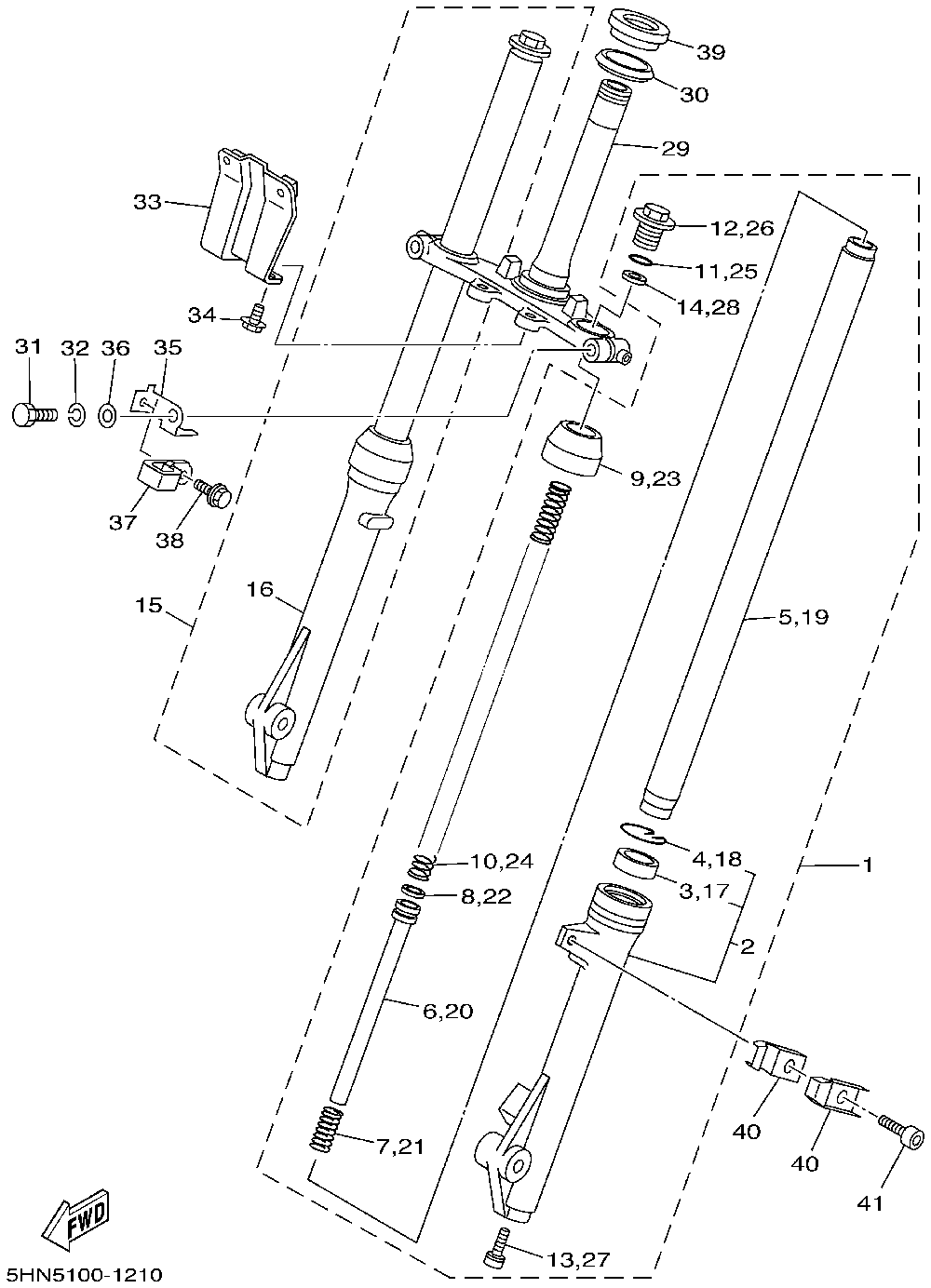

Передняя вилка

Yamaha TT-R90

Передняя вилка

#

oem код

название

цена

1

5HN-23102-01-00

Front Fork Assy (l.h (5hn8)

Front Fork Assy (l.h (5hn8)

2

3RV-23126-01-00

Tube, Outer (left) (5hn8)

Tube, Outer (left) (5hn8)

3

1RY-23145-00-00

Oil, Seal (5hn8)

Oil, Seal (5hn8)

4

3M7-23156-00-00

Clip, Oil Seal (5hn8)

Clip, Oil Seal (5hn8)

5

21W-23110-00-00

Inner Tube 1 (5hn8)

Inner Tube 1 (5hn8)

6

5HN-23170-00-00

Tube Outer Left (5hn8)

Tube Outer Left (5hn8)

7

2J5-23151-00-00

Spring, Rebound (5hn8)

Spring, Rebound (5hn8)

8

2J5-23157-00-00

Ring, Piston Frtfrk (5hn8)

Ring, Piston Frtfrk (5hn8)

9

3M7-23144-00-00

Seal, Dust (5hn8)

Seal, Dust (5hn8)

10

21W-23141-00-00

Spring, Front Fork (5hn8)

Spring, Front Fork (5hn8)

11

O-ring (5hn8)

O-ring (5hn8)

12

3M7-23111-01-00

Bolt, Cap (5hn8)

Bolt, Cap (5hn8)

13

3M7-23181-00-00

Bolt, Hex Sckt Head With Washer(5hn8)

Bolt, Hex Sckt Head With Washer(5hn8)

14

3M7-23142-00-00

Seat, Spring Upper (5hn8)

Seat, Spring Upper (5hn8)

15

5HN-23103-01-00

Front Fork Assy (r.h (5hn8)

Front Fork Assy (r.h (5hn8)

16

3RV-23136-01-00

Tube, Outer (right) (5hn8)

Tube, Outer (right) (5hn8)

29

5HN-23340-00-00

Under Bracket Comp. (5hn8)

Under Bracket Comp. (5hn8)

30

164-23462-00-00

Seal, Steering (5hn8)

Seal, Steering (5hn8)

31

451-23346-01-00

Bolt 1 (5hn8)

Bolt 1 (5hn8)

32

Washer, Spring (5hn8)

Washer, Spring (5hn8)

33

5HN-23486-00-00

Stay, Plate (5hn8)

Stay, Plate (5hn8)

34

5HN-23492-00-00

Bolt (5hn8)

Bolt (5hn8)

35

5HN-2334G-00-00

Bracket (5hn8)

Bracket (5hn8)

36

Washer (5hn8)

Washer (5hn8)

37

5HN-23857-00-00

Holder (5hn8)

Holder (5hn8)

38

Bolt (7ea) (5hn8)

Bolt (7ea) (5hn8)

39

Race, Ball 2 (5hn8)

Race, Ball 2 (5hn8)

40

Clamp (5hn8)

Clamp (5hn8)

41

Bolt (4my) (5hn8)

Bolt (4my) (5hn8)
