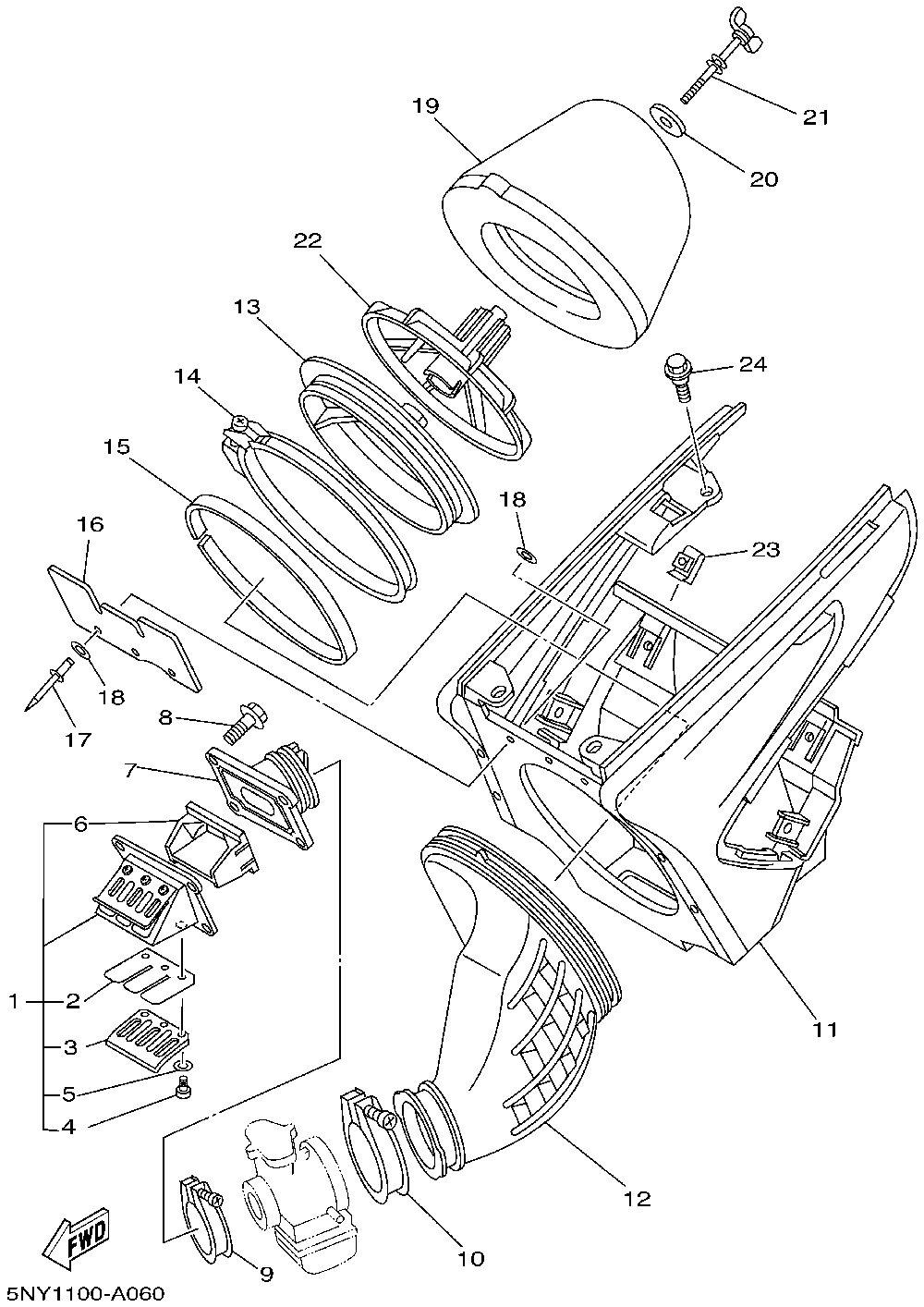

Впускная система

Yamaha YZ 125
Yamaha
#oem кодцена
1
5MV-13610-00-00
Reed Valve Assy (5ny1)
2
5MV-13613-00-00
Reed, Valve (5ny1)
3
5MV-13616-10-00
Stopper, Reed Valve (5ny1)
4
98507-03006-00
Screw, Pan (5ny1)
6
5MV-13625-00-00
Spacer, Reed Valve (5ny1)
7
5MV-13565-10-00
Joint, Carburetor (5ny1)
8
95027-06020-00
Bolt, Flange(6u1) (5ny1)
9
90450-51001-00
Hose Clamp Assy (5ny1)
10
90450-70002-00
Hose Clamp Assy (5ny1)
11
5NY-14401-01-00
Air Cleaner Case Ass (5ny1)
12
5NY-14453-00-00
Joint, Air Cleaner 1 (5ny1)
13
5NY-14459-00-00
Holder, Guide (5ny1)
14
5NY-14455-20-00
Band (5ny1)
15
5NY-14442-00-00
Spacer (5ny1)
16
5NY-14417-00-00
Cover 1 (5ny1)
17
90267-32070-00
Rivet, Blind (5ny1)
18
90201-03313-00
Washer, Plate (5ny1)
19
4XM-14451-00-00
Element, Air Clnr (5ny1)
20
90209-06096-00
Washer, Spec'l Shape (5ny1)
21
90122-06005-00
Bolt, Wing (5ny1)
22
3JD-14458-01-00
Guide, Element (5ny1)
23
90183-06023-00
Nut, Spring (5ny1)
24
90109-067F4-00
Bolt (5ny1)
