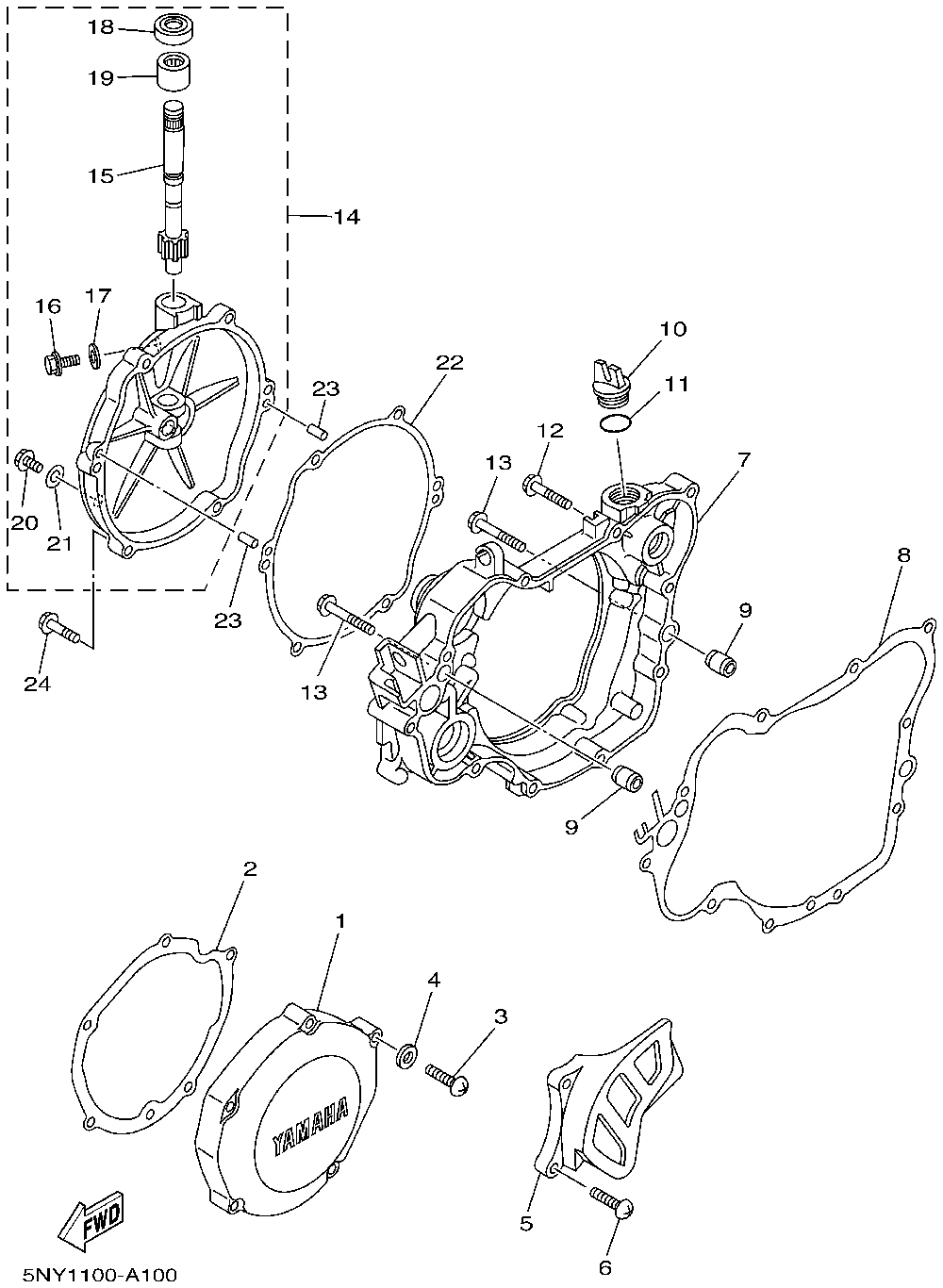

Крышка картера двигателя

Yamaha YZ 125
Yamaha
#oem кодцена
1
4JY-15411-00-00
Cover, Crankcase L (5ny1)
2
4JY-15451-10-00
Gasket, Crankcase Co (5ny1)
3
98517-06030-00
Screw, Pan Head (5ny1)
4
92907-06600-00
Washer, Plate (6ta) (5ny1)
5
4EX-15421-00-00
Cover, Crankcase R (5ny1)
6
98507-06016-00
Screw, Pan Head (5ny1)
7
4JY-15431-14-00
Cover, Crankcase 3 (5ny1)
8
4JY-15462-00-00
Gasket, Crcs Cvr 3 (5ny1)
9
99510-10114-00
Pin, Dowel (5ny1)
10
1RG-15363-00-00
Plug, Oil (5ny1)
11
93210-19123-00
O-ring (5ny1)
12
95027-06030-00
Bolt, Small Flange (5ny1)
13
95027-06040-00
Bolt, Small Flange (5ny1)
14
5NY-15490-00-00
Cover Assy (5ny1)
15
4EX-16382-10-00
Axle, Push Lever (5ny1)
16
90109-06418-00
Bolt (5ny1)
17
90430-06014-00
Gasket (5ny1)
18
93102-12224-00
Oil Seal, Sd-type (5ny1)
19
93315-11206-00
Bearing, Cyl.#15 (5ny1)
20
95027-06010-00
Bolt, Flange(4my) (5ny1)
22
4JY-15463-01-00
Gasket, Clutch Cover (5ny1)
23
93604-10011-00
Pin, Dowel (5ny1)
24
95027-06025-00
Bolt, Small Flange (5ny1)
