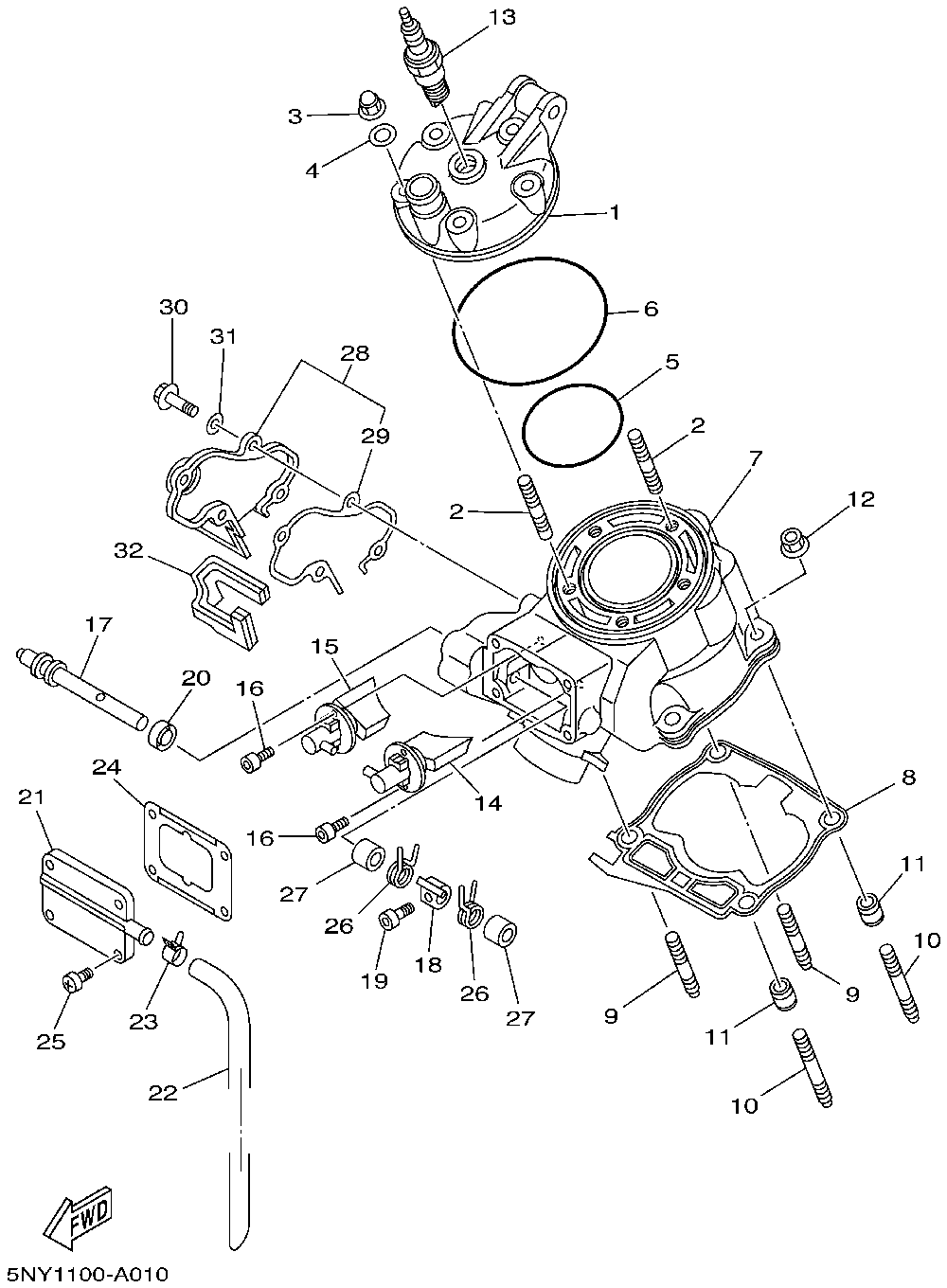

ГОЛОВКА ЦИЛИНДРА

Yamaha YZ 125

ГОЛОВКА ЦИЛИНДРА

#

oem код

название

цена

1

5MV-11111-00-00

Head, Cylinder 1 (5ny1)

Head, Cylinder 1 (5ny1)

2

Bolt, Stud (5ny1)

Bolt, Stud (5ny1)

3

Nut, Crown (5ny1)

Nut, Crown (5ny1)

4

Washer, Plate (5ny1)

Washer, Plate (5ny1)

5

O-ring (5ny1)

O-ring (5ny1)

6

O-ring (5ny1)

O-ring (5ny1)

7

5NY-11311-10-00

Cylinder 1 (5ny1)

Cylinder 1 (5ny1)

8

5DH-11351-01-00

Gasket, Cylinder (5ny1)

Gasket, Cylinder (5ny1)

9

Bolt, Stud (5ny1)

Bolt, Stud (5ny1)

10

Bolt, Stud (5ny1)

Bolt, Stud (5ny1)

11

Pin, Dowel (5ny1)

Pin, Dowel (5ny1)

12

Nut, Spec'l Shape (5ny1)

Nut, Spec'l Shape (5ny1)

13

NGK-BR9EG-00-00

Ngk Br9eg 4pk (5ny1)

Ngk Br9eg 4pk (5ny1)

14

5HD-1131D-10-00

Valve Assy (5ny1)

Valve Assy (5ny1)

15

5HD-1132D-10-00

Valve Assy 2 (5ny1)

Valve Assy 2 (5ny1)

16

Bolt (5ny1)

Bolt (5ny1)

17

5HD-1131V-00-00

Shaft 1 (5ny1)

Shaft 1 (5ny1)

18

4SS-11832-00-00

Lever, Link (5ny1)

Lever, Link (5ny1)

19

Bolt (5ny1)

Bolt (5ny1)

20

Oil Seal, So-type (5ny1)

Oil Seal, So-type (5ny1)

21

4SS-1131M-01-00

Cover (5ny1)

Cover (5ny1)

22

4JY-11166-00-00

Pipe, Breather 1 (5ny1)

Pipe, Breather 1 (5ny1)

23

Clip(mg5) (5ny1)

Clip(mg5) (5ny1)

24

4JY-11354-02-00

Gasket (5ny1)

Gasket (5ny1)

25

Bolt, Socket (5ny1)

Bolt, Socket (5ny1)

26

Spring, Torsion (5ny1)

Spring, Torsion (5ny1)

27

Collar (5ny1)

Collar (5ny1)

28

4JY-11991-01-00

Housing 1 (5ny1)

Housing 1 (5ny1)

29

4JY-11993-01-00

Gasket (5ny1)

Gasket (5ny1)

30

Bolt (5ny1)

Bolt (5ny1)

31

Washer (1rw) (5ny1)

Washer (1rw) (5ny1)

32

4JY-11995-00-00

Seal, Housing (5ny1)

Seal, Housing (5ny1)

13

BR9-EG000-00-00

Ngk Br9eg 4pk (5ny1)

Ngk Br9eg 4pk (5ny1)
