Задняя подвеска Оригинальные запчасти для мотоциклов Yamaha YZ 125 (2002)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

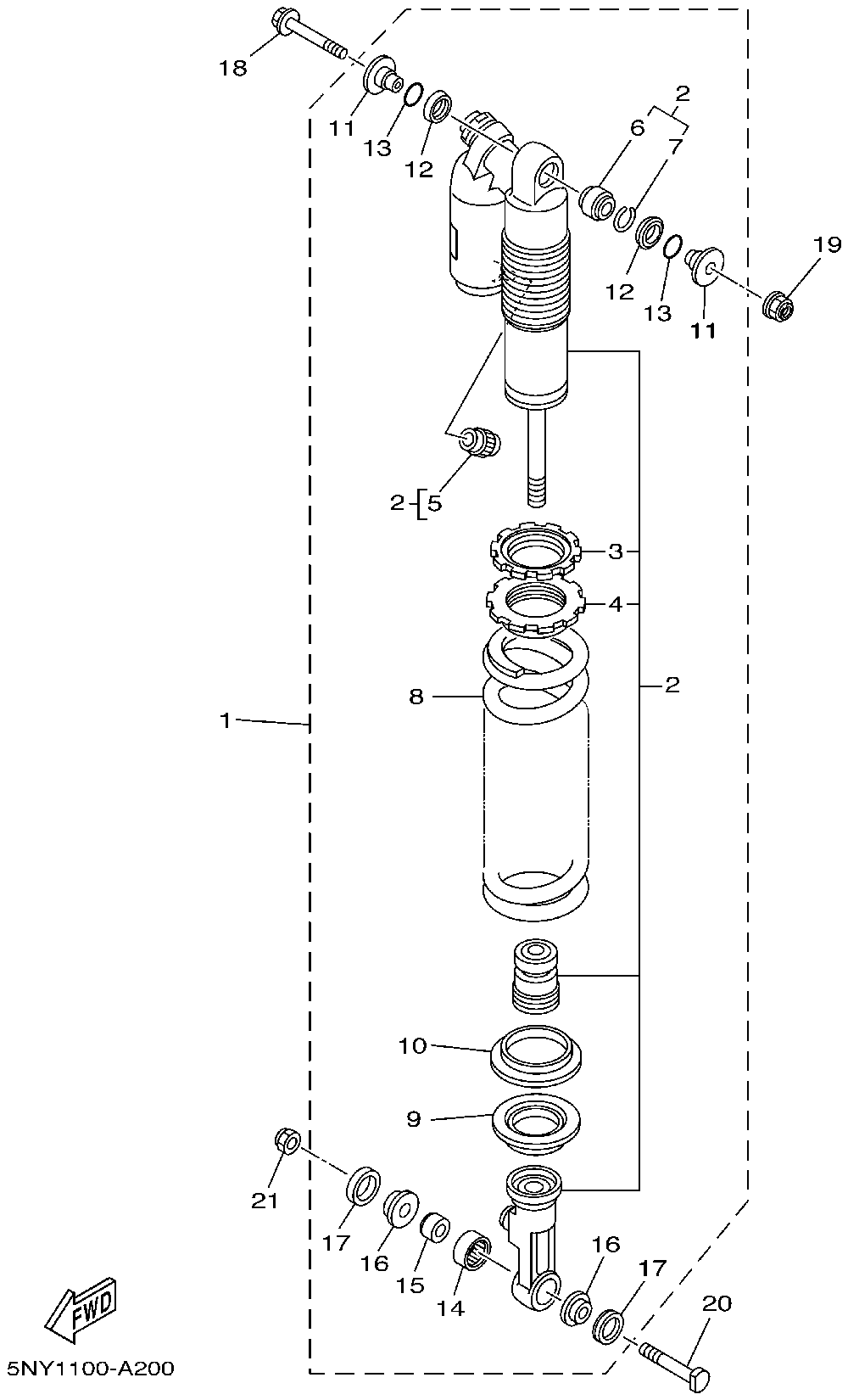

Задняя подвеска

Yamaha YZ 125

Задняя подвеска

#

oem код

название

цена

1

5NY-22210-00-00

Shock Absorber Assy, (5ny1)

Shock Absorber Assy, (5ny1)

2

5NY-22201-00-00

Damper Sub Assy (5ny1)

Damper Sub Assy (5ny1)

3

3SP-22234-00-00

Guide, Spring 3 (5ny1)

Guide, Spring 3 (5ny1)

4

3SP-22213-00-00

Seat, Spring Upper (5ny1)

Seat, Spring Upper (5ny1)

5

509-23184-L0-00

Cap, Air Valve (5ny1)

Cap, Air Valve (5ny1)

6

4JX-22226-00-00

Bush, Rr Shk Asy (5ny1)

Bush, Rr Shk Asy (5ny1)

7

5DH-23183-00-00

Circlip (5ny1)

Circlip (5ny1)

8

5DH-22212-10-00

Spring (5ny1)

Spring (5ny1)

9

5DH-22214-00-00

Guide Spring 1 (5ny1)

Guide Spring 1 (5ny1)

10

5MV-22224-00-00

Guide, Spring 2 (5ny1)

Guide, Spring 2 (5ny1)

11

5DH-22253-00-00

Collar, Distance (5ny1)

Collar, Distance (5ny1)

12

3JE-22475-00-00

Seal, Dust Low. (5ny1)

Seal, Dust Low. (5ny1)

13

4EW-22474-00-00

Seal, Ring (5ny1)

Seal, Ring (5ny1)

14

5MV-22176-00-00

Bearing (5ny1)

Bearing (5ny1)

15

5MV-22184-00-00

Bush (5ny1)

Bush (5ny1)

16

5MV-22253-00-00

Collar, Distance (5ny1)

Collar, Distance (5ny1)

17

5NY-22475-00-00

Seal, Dust (5ny1)

Seal, Dust (5ny1)

18

Bolt, Washer Based (5ny1)

Bolt, Washer Based (5ny1)

19

Nut, Self-locking (5ny1)

Nut, Self-locking (5ny1)

20

5NY-22241-00-00

Bolt 1 (5ny1)

Bolt 1 (5ny1)

21

Nut, Self-locking (5ny1)

Nut, Self-locking (5ny1)
