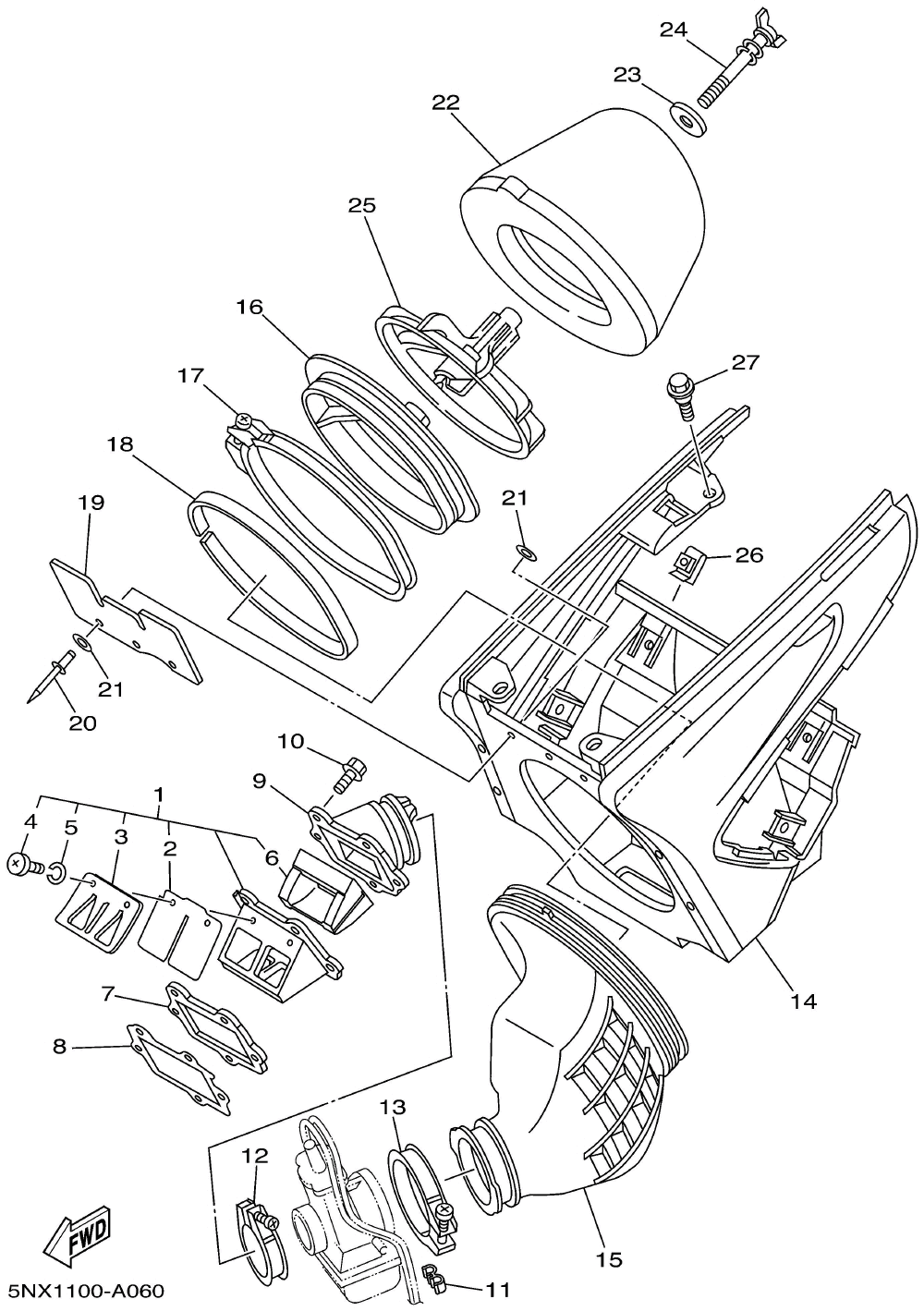

Впускная система

Yamaha YZ250P
Yamaha
#oem кодцена
1
5NX-13610-10-00
Reed Valve Assy (5nx1)
2
5NX-13613-00-00
Reed, Valve (5nx1)
3
4XL-13616-00-00
Stopper, Reed Valve (5nx1)
4
98517-03008-00
Screw, Pan (5nx1)
6
4XL-13625-00-00
Spacer, Reed Valve (5nx1)
7
5NX-13624-00-00
Plate, Reed Valve (5nx1)
8
5NX-13622-00-00
Gasket, Valve Seat (5nx1)
9
5NX-13565-00-00
Joint, Carburetor (5nx1)
10
91317-06025-00
Bolt (4my) (5nx1)
11
90464-06214-00
Clamp (5nx1)
12
90450-51001-00
Hose Clamp Assy (5nx1)
13
90450-70002-00
Hose Clamp Assy (5nx1)
14
5NY-14401-01-00
Air Cleaner Case Ass (5nx1)
15
5NX-14453-00-00
Joint, Air Cleaner 1 (5nx1)
16
5NY-14459-00-00
Holder, Guide (5nx1)
17
5NY-14455-20-00
Band (5nx1)
18
5NY-14442-00-00
Spacer (5nx1)
19
5NY-14417-00-00
Cover 1 (5nx1)
20
90267-32070-00
Rivet, Blind (5nx1)
21
90201-03313-00
Washer, Plate (5nx1)
22
4XM-14451-00-00
Element, Air Clnr (5nx1)
23
90209-06096-00
Washer, Spec'l Shape (5nx1)
24
90122-06005-00
Bolt, Wing (5nx1)
25
3JD-14458-01-00
Guide, Element (5nx1)
26
90183-06023-00
Nut, Spring (5nx1)
27
90109-067F4-00
Bolt (5nx1)
