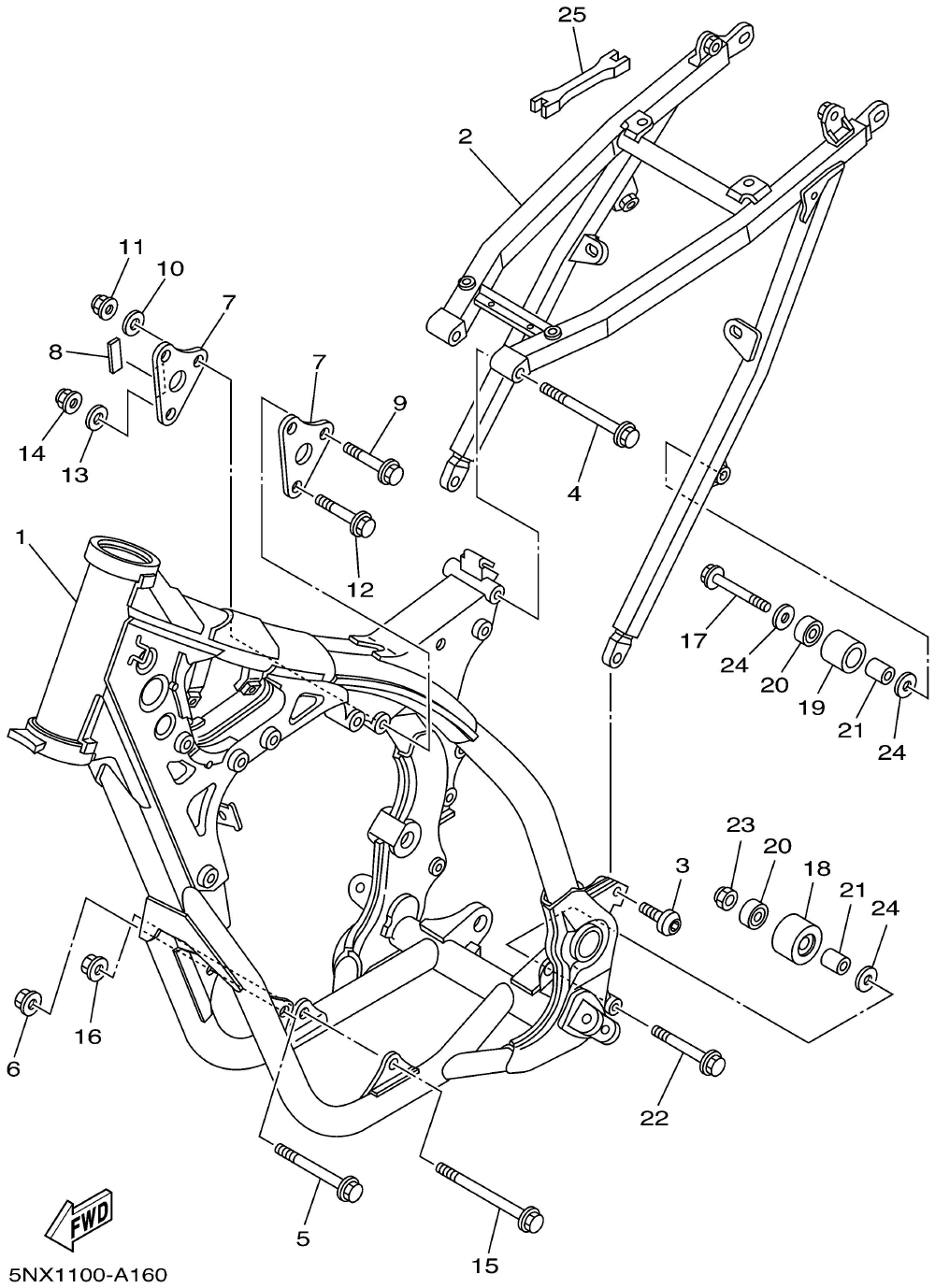

Рама

Yamaha YZ250P

Рама

#

oem код

название

цена

1

5NX-21101-00-00

Front Frame Comp. (5nx1)

Front Frame Comp. (5nx1)

2

5NY-21190-00-00

Rear Frame Comp. (5nx1)

Rear Frame Comp. (5nx1)

3

Bolt, Hex Skt Head (5nx1)

Bolt, Hex Skt Head (5nx1)

4

Bolt, Washer Based (5nx1)

Bolt, Washer Based (5nx1)

5

Bolt, Flange (5nx1)

Bolt, Flange (5nx1)

6

Nut, Self-locking (5nx1)

Nut, Self-locking (5nx1)

7

5NX-21425-00-00

Bracket, Rear Upper (5nx1)

Bracket, Rear Upper (5nx1)

8

4GG-21488-00-00

Damper (5nx1)

Damper (5nx1)

9

Bolt, Washer Based (5nx1)

Bolt, Washer Based (5nx1)

10

Washer, Plate (5nx1)

Washer, Plate (5nx1)

11

Nut, Self Locking (5nx1)

Nut, Self Locking (5nx1)

12

Bolt, Flange (8ab) (5nx1)

Bolt, Flange (8ab) (5nx1)

13

Washer (5nx1)

Washer (5nx1)

15

Bolt, Washer Based (5nx1)

Bolt, Washer Based (5nx1)

17

Bolt, Flange(4my) (5nx1)

Bolt, Flange(4my) (5nx1)

18

3JD-22178-20-00

Tensioner (5nx1)

Tensioner (5nx1)

19

4EW-22178-01-00

Tensioner (5nx1)

Tensioner (5nx1)

20

Bearing (5nx1)

Bearing (5nx1)

21

Collar (5nx1)

Collar (5nx1)

22

Bolt, Small Flange (5nx1)

Bolt, Small Flange (5nx1)

23

Nut, Self-locking (5nx1)

Nut, Self-locking (5nx1)

24

Washer, Plate (5nx1)

Washer, Plate (5nx1)

25

5ET-28166-00-00

Wrench, Hexagon (5nx1)

Wrench, Hexagon (5nx1)
