Стартер Оригинальные запчасти для мотоциклов Yamaha YZ250P (2002)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

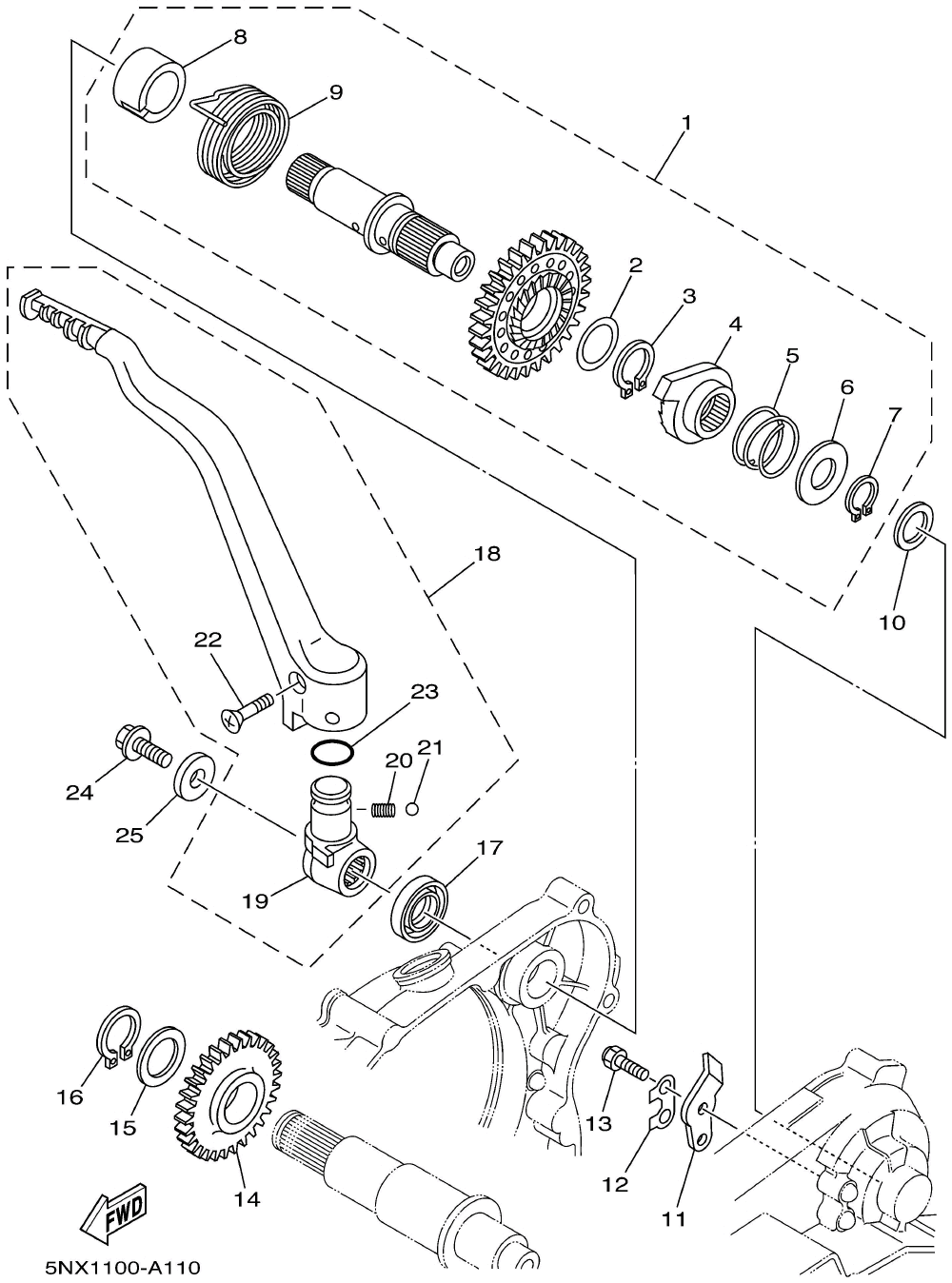

Стартер

Yamaha YZ250P

Стартер

#

oem код

название

цена

1

5NX-15601-10-00

Kick Shaft Assy (5nx1)

Kick Shaft Assy (5nx1)

2

Washer, Plate (5nx1)

Washer, Plate (5nx1)

3

Circlip, S-type (5nx1)

Circlip, S-type (5nx1)

4

4GY-15671-00-00

Wheel, Ratchet (5nx1)

Wheel, Ratchet (5nx1)

5

Spring, Compression (5nx1)

Spring, Compression (5nx1)

6

Washer, Plate (5nx1)

Washer, Plate (5nx1)

7

Circlip, S-type (5nx1)

Circlip, S-type (5nx1)

8

5NL-15664-00-00

Guide, Spring (5nx1)

Guide, Spring (5nx1)

9

Spring, Torsion (5nx1)

Spring, Torsion (5nx1)

10

Washer, Plate (5nx1)

Washer, Plate (5nx1)

11

2NX-15674-00-00

Guide, Ratchet Whl (5nx1)

Guide, Ratchet Whl (5nx1)

12

214-15686-00-00

Washer, Lock (5nx1)

Washer, Lock (5nx1)

13

Bolt, Hexagon (5nx1)

Bolt, Hexagon (5nx1)

14

5CU-15651-00-00

Gear, Kick Idle (5nx1)

Gear, Kick Idle (5nx1)

15

Washer, Plate (5nx1)

Washer, Plate (5nx1)

16

Circlip (5nx1)

Circlip (5nx1)

17

Oil Seal, Sd-type (5nx1)

Oil Seal, Sd-type (5nx1)

18

5NX-15620-20-00

Kick Crank Assy (5nx1)

Kick Crank Assy (5nx1)

19

5NX-15621-00-00

Boss, Kick Crank (5nx1)

Boss, Kick Crank (5nx1)

20

Spring, Compression (5nx1)

Spring, Compression (5nx1)

21

Ball 7/32 (5nx1)

Ball 7/32 (5nx1)

22

Screw, Countersunk (5nx1)

Screw, Countersunk (5nx1)

23

O-ring (5nx1)

O-ring (5nx1)

24

Bolt (5nx1)

Bolt (5nx1)

25

Washer, Plate (5nx1)

Washer, Plate (5nx1)
