ТОПЛИВНЫЙ БАК Оригинальные запчасти для мотоциклов Yamaha YZ250P (2002)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

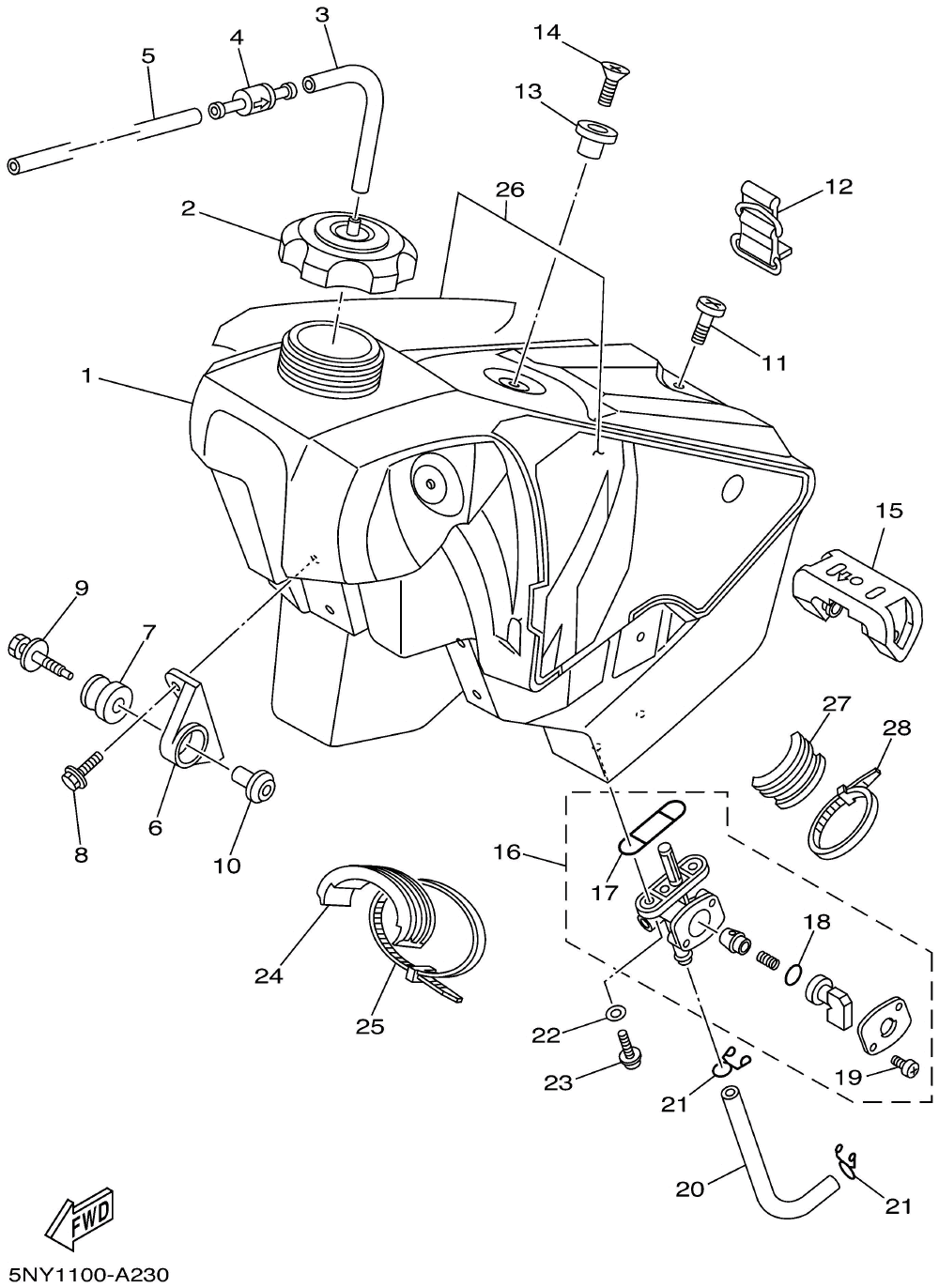

ТОПЛИВНЫЙ БАК

Yamaha YZ250P

ТОПЛИВНЫЙ БАК

#

oem код

название

цена

1

5XE-24110-00-00

Fuel Tank Comp. (5nx1)

Fuel Tank Comp. (5nx1)

2

5NY-24610-00-00

Cap Assy (5nx1)

Cap Assy (5nx1)

3

Hose (jn3) (5nx1)

Hose (jn3) (5nx1)

4

3XJ-24380-00-00

Pipe Joint Asy (5nx1)

Pipe Joint Asy (5nx1)

6

5XE-24144-00-00

Holder, Damper (5nx1)

Holder, Damper (5nx1)

7

Grommet (5nx1)

Grommet (5nx1)

8

Bolt, Washer Based (5nx1)

Bolt, Washer Based (5nx1)

9

Bolt, With Washer (5nx1)

Bolt, With Washer (5nx1)

10

5NY-24186-00-00

Washer, Special (5nx1)

Washer, Special (5nx1)

11

Screw, Bind (5nx1)

Screw, Bind (5nx1)

12

3SP-24173-00-00

Band, Tank Fitting (5nx1)

Band, Tank Fitting (5nx1)

13

4EW-2412F-00-00

Bracket, Seat (5nx1)

Bracket, Seat (5nx1)

14

Screw, Flat (5nx1)

Screw, Flat (5nx1)

15

4SS-24181-00-00

Damper, Locating 1 (5nx1)

Damper, Locating 1 (5nx1)

16

3JD-24500-10-00

Fuel Cock Assy 1 (5nx1)

Fuel Cock Assy 1 (5nx1)

17

4X8-24512-00-00

Gasket (5nx1)

Gasket (5nx1)

18

3AJ-24534-01-00

Seal, Cock (5nx1)

Seal, Cock (5nx1)

19

Screw, Pan Head (5nx1)

Screw, Pan Head (5nx1)

20

Hose (5nx1)

Hose (5nx1)

21

Clip, Scissor (5nx1)

Clip, Scissor (5nx1)

22

Washer, Plate (5nx1)

Washer, Plate (5nx1)

23

Screw, Spec'l Shape (5nx1)

Screw, Spec'l Shape (5nx1)

24

5NY-24182-00-00

Damper, Locating 2 (5nx1)

Damper, Locating 2 (5nx1)

25

Clamp (5nx1)

Clamp (5nx1)

26

5NY-24240-01-00

Graphic Set (5nx1)

Graphic Set (5nx1)

27

5NY-24183-00-00

Damper, Locating 3 (5nx1)

Damper, Locating 3 (5nx1)

28

1UA-82591-00-00

Band (5nx1)

Band (5nx1)
