Крышка картера двигателя Оригинальные запчасти для мотоциклов Yamaha XV750H Virago 750 (1996)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

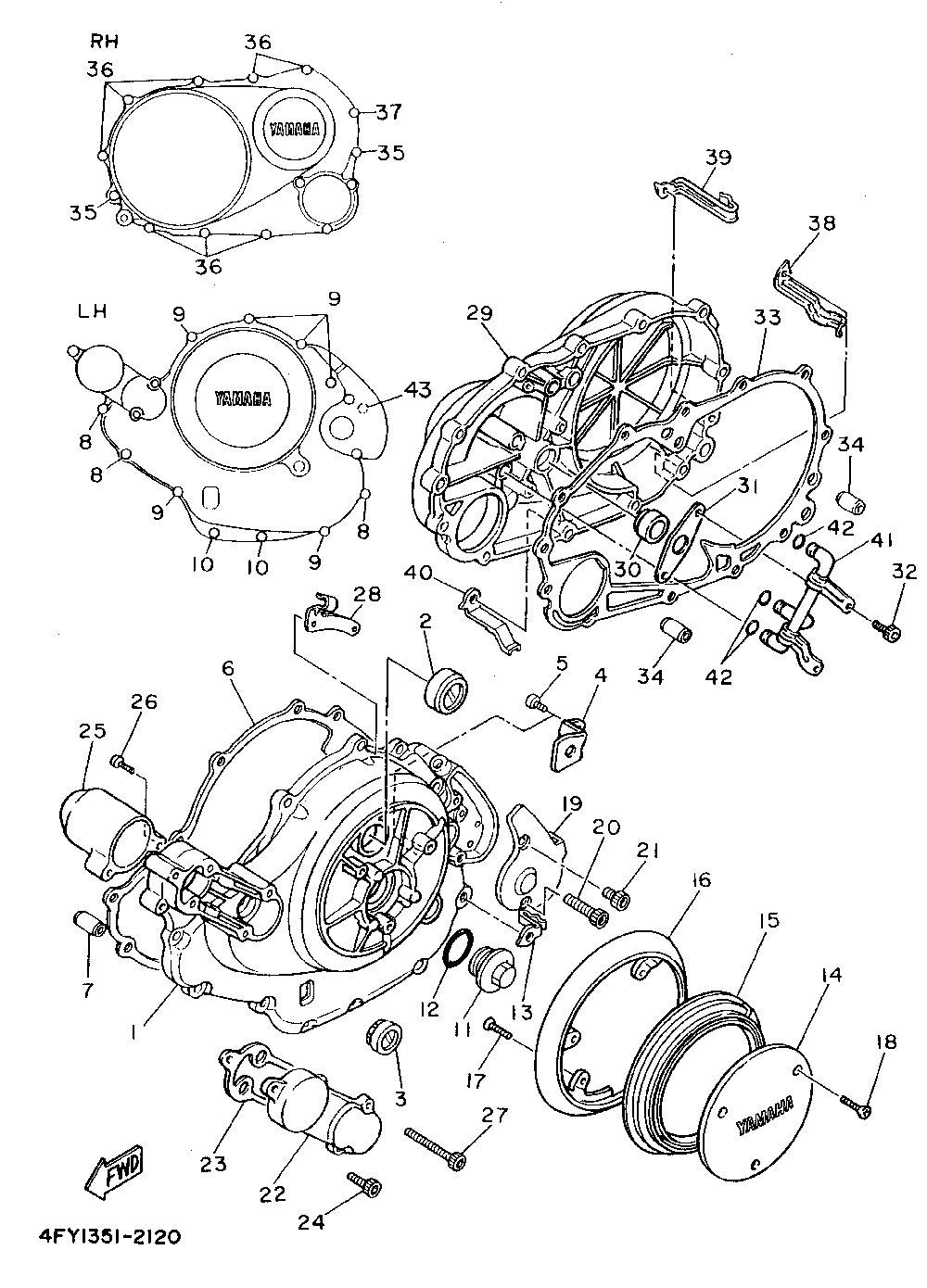

Крышка картера двигателя

Yamaha XV750H Virago 750

Крышка картера двигателя

#

oem код

название

цена

1

1RM-15411-01-00

Cover, Crankcase L 1

Cover, Crankcase L 1

2

4X7-15361-00-00

Gauge, Level 1

Gauge, Level 1

3

2H7-15361-00-00

Gauge, Level 1

Gauge, Level 1

4

Clamp 1

Clamp 1

5

Screw, Pan Head 1

Screw, Pan Head 1

6

3EG-15451-00-00

Gasket, Crcs Cover 1

Gasket, Crcs Cover 1

7

Pin, Dowel 2

Pin, Dowel 2

8

Bolt, Socket 3

Bolt, Socket 3

9

Bolt, Socket 6

Bolt, Socket 6

10

Bolt (3jb) 2

Bolt (3jb) 2

11

1L9-11186-00-00

Cover, Cyl.head 2 1

Cover, Cyl.head 2 1

12

O-ring 1

O-ring 1

13

Clamp 1

Clamp 1

14

1RM-15415-01-00

Cover, Generator 1

Cover, Generator 1

15

1RM-15455-00-00

Gasket 1 1

Gasket 1 1

16

3JK-15425-00-00

Cover, Generator R 1

Cover, Generator R 1

17

Screw, Flat 3

Screw, Flat 3

18

Screw, Flat 3

Screw, Flat 3

19

42X-15417-01-00

Cover, Cap 1

Cover, Cap 1

20

Bolt (3dm) 1

Bolt (3dm) 1

21

Bolt, Socket 1

Bolt, Socket 1

22

1RM-15419-00-00

Cover, Shifter 1 1

Cover, Shifter 1 1

23

3EG-15459-00-00

Gasket, Shftr Cover 1

Gasket, Shftr Cover 1

25

5A8-15429-00-00

Cover, Shifter 1

Cover, Shifter 1

26

Screw, Pan Head 2

Screw, Pan Head 2

27

Bolt, Socket 1

Bolt, Socket 1

28

42X-15441-00-00

Holder, Clch Cable 1

Holder, Clch Cable 1

29

1RM-W1542-01-00

Cover, Crankcase 3 1

Cover, Crankcase 3 1

30

Oil Seal, S-type 1

Oil Seal, S-type 1

31

4X7-15388-00-00

Plate, Brng Cover 1

Plate, Brng Cover 1

32

Bolt (4my) 2

Bolt (4my) 2

33

3EG-15462-00-00

Gasket, Crcs Cvr 3 1

Gasket, Crcs Cvr 3 1

34

Pin, Dowel 2

Pin, Dowel 2

36

Bolt (3dm) 8

Bolt (3dm) 8

37

Bolt 1

Bolt 1

38

Clamp 1

Clamp 1

39

Clamp 2

Clamp 2

40

Clamp 1

Clamp 1

41

1RM-13161-00-00

Pipe, Delivery 1 1

Pipe, Delivery 1 1

42

O-ring 3

O-ring 3

43

Bolt (4fl) 1

Bolt (4fl) 1
