Заднее колесо Оригинальные запчасти для мотоциклов Yamaha XV750F Virago 750 (1994)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

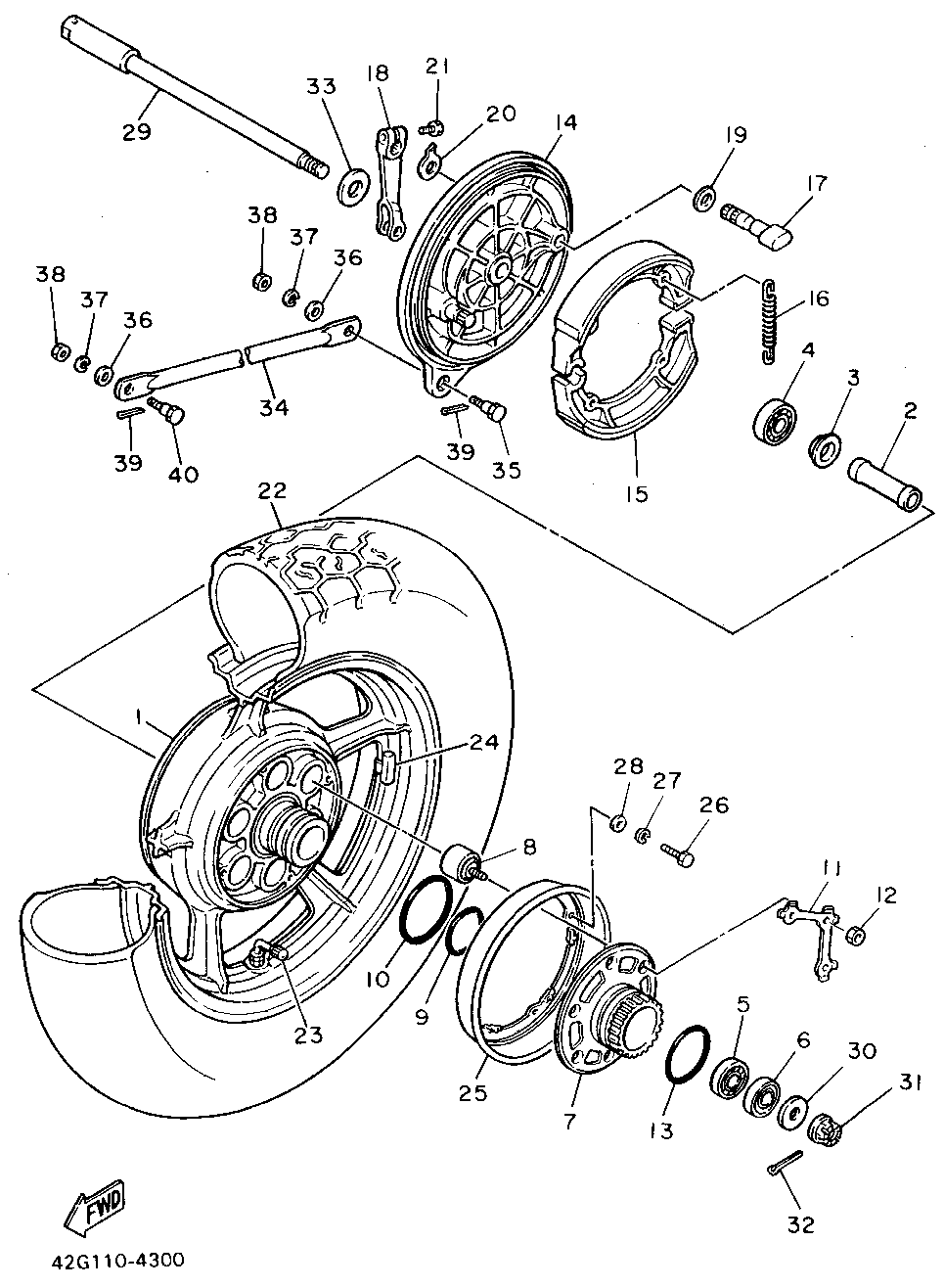

Заднее колесо

Yamaha XV750F Virago 750

Заднее колесо

#

oem код

название

цена

1

42H-25338-01-P1

Wheel, Cast Rear 1 Light Yellowish

Wheel, Cast Rear 1 Light Yellowish

2

Spacer 1

Spacer 1

3

146-25315-00-00

Flange, Spacer 1

Flange, Spacer 1

4

Bearing (4hm) 1

Bearing (4hm) 1

5

Bearing 1

Bearing 1

7

16G-25366-01-00

Clutch, Hub 1

Clutch, Hub 1

8

42H-25364-00-00

Damper 6

Damper 6

9

O-ring 1

O-ring 1

10

O-ring 1

O-ring 1

11

16G-25412-00-00

Washer 2

Washer 2

12

Nut, Flange 6

Nut, Flange 6

13

O-ring 1

O-ring 1

14

42H-25321-02-00

Plate, Brake Shoe 1

Plate, Brake Shoe 1

15

3DR-W253E-00-00

Brake Shoe Kit 1

Brake Shoe Kit 1

16

Spring, Tension 2

Spring, Tension 2

17

4H7-25351-00-00

Camshaft 1

Camshaft 1

18

3CF-25355-00-00

Lever, Camshaft 1

Lever, Camshaft 1

19

Washer, Plate 1

Washer, Plate 1

20

4H7-2533A-02-00

Plate, Indicator 1

Plate, Indicator 1

21

Bolt 1

Bolt 1

22

140/90-15 70h Bs G53 1 Bridge- Stone

140/90-15 70h Bs G53 1 Bridge- Stone

23

Valve, Rim 1 Bridge Stone

Valve, Rim 1 Bridge Stone

24

5MT-25398-00-00

Balancer, Wheel 1 Un

Balancer, Wheel 1 Un

24

5MT-25398-10-00

Balancer, Wheel 1 Un

Balancer, Wheel 1 Un

24

5MT-25398-20-00

Balancer, Wheel 1 Un

Balancer, Wheel 1 Un

25

16G-25327-00-00

Cover, Plate 1

Cover, Plate 1

26

Bolt (3jk) 4

Bolt (3jk) 4

27

Washer, Spring 4

Washer, Spring 4

28

Washer 4

Washer 4

29

42X-25381-00-00

Axle, Wheel 1

Axle, Wheel 1

30

Washer, Plate 1

Washer, Plate 1

31

Nut, Castle 1

Nut, Castle 1

32

Pin, Cotter 1

Pin, Cotter 1

33

4H7-25377-00-00

Collar, Wheel 1

Collar, Wheel 1

34

42X-25371-02-00

Bar, Tension 1

Bar, Tension 1

35

Bolt 1

Bolt 1

36

Washer 2

Washer 2

37

Washer, Spring 2

Washer, Spring 2

38

Nut 2

Nut 2

39

Pin, Cotter 2

Pin, Cotter 2

40

Bolt 1

Bolt 1
